Model F1 Res Sprinklers engineered for the lowest flows
to meet the minimum design density of .05 gpm/ft
Types:
1. F1 Res 49 Pendent
2. F1 Res 49 Recessed Pendent/F1
3. F1 Res 49 Recessed Pendent/FP
4. F1 Res 49 CCP Pendent
5. F1 Res 58 Pendent
6. F1 Res 58 Recessed Pendent/F1
7. F1 Res 58 Recessed Pendent/FP
8. F1 Res 58 CCP Pendent
9. F1 Res 44 & 58 HSW
10. F1 Res 44 & 58 HSW Recessed HSW/F2
11. F1 Res 44 SWC
12. F1 Res 76 Pendent
13. F1 Res 76 Recessed Pendent/F1
14. F1 Res 76 Recessed Pendent/FP
15. F1 Res 76 CCP Pendent
Listings & Approvals
1. Listed by Underwriters Laboratories Inc. and
UL Certified for Canada (cULus)
2. NYC MEA 258-93-E
UL Listing Category
Residential Automatic Sprinkler
UL Guide Number
VKKW
Patents
US Patent No. 6,516,893 applies to the
Model F1 Res 49 & 58 Pendent Sprinklers
Product Description

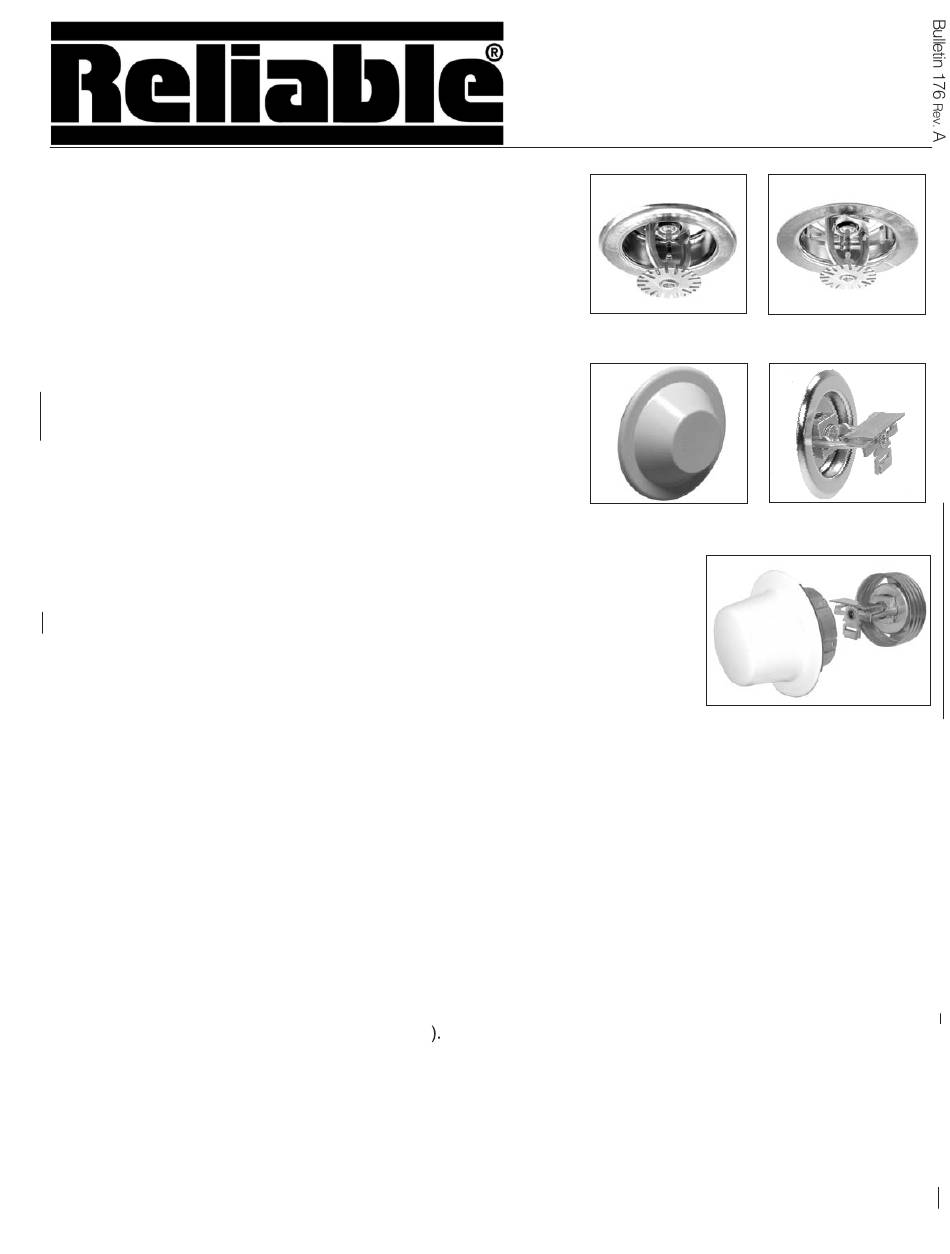

Model F1Res Pendent sprinklers (Figs. 1, 2, 3 & 4)
combine excellent durability, high sensitivity glass-bulb
and low profile decorative design.
The 3mm glass-bulb pendent sprinklers permit the
efficient use of residential water supplies for sprinkler
coverage in residential fire protection design.
The low flow F1 Res sprinklers are specially
engineered for fast thermal response to meet the
sensitive fire protection application needs of the latest
residential market standards (UL 1626 Standard
Upon fire conditions, rising heat causes a sprinkler's
heat-sensitive glass-bulb to shatter, releasing the
waterway for water flow onto the deflector, evenly
distributing the discharged water to control a fire.
The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model F1
Residential Sprinklers for
Design Density of .10 gpm/ft
2
Recessed Pendent / F1
F1 Res 49, 58 & 76
Technical Data:
• Thermal Sensor: Nominal 3mm glass-bulb
• Sprinkler Frame : Brass Casting
• Sprinklers' Pressure Rating : 175 psi
Factory Hydrostatically Tested to 500 psi
• Thread Size: ½" NPT (R1/2)
• K-Factor: 4.9 (Actual) - F1 Res 49 Pendent Sprinkler
5.8 (Actual) - F1Res58Pendent&HSWSprinkler
7.6 (Actual) - F1 Res 76 Pendent Sprinkler
4.4 (Actual) - F1 Res 44 HSW Sprinkler
*
• Density: Minimum 0.10 gpm/ft
* Effective date 7/12/02
F1 Res 49, 58 & 76
F1 Res 49, 58 & 76
Recessed Pendent / FP
Recessed HSW/F2

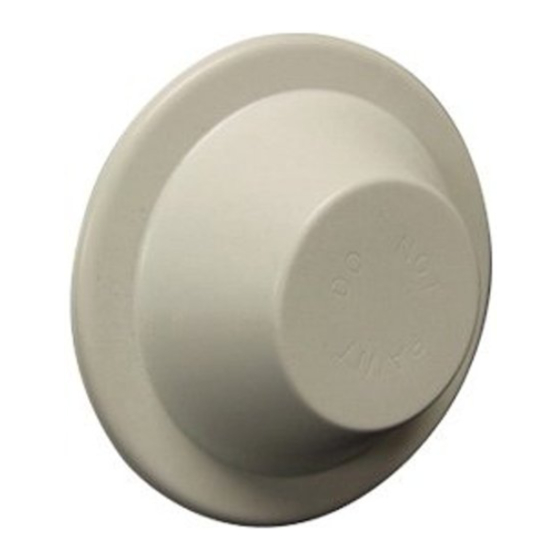

CCP Pendent
F1 Res 44 SWC
2
Bulletin 176
A
Rev.
2
F1 Res 44 & 58
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Reliable F1
Summary of Contents for Reliable F1
- Page 1 * Effective date 7/12/02 The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523...
- Page 2 Application Example No. 1 Model F1 Res Sprinklers are used for Residential Fire Protection according to UL 1626 Standard*. Be sure Room Size= 12 ft x 20 ft (3.6 m x 6.1 m) that orifice size, temperature rating, deflector style and Coverage Area= 12 x 20 = 240 ft (22.3 m...
-
Page 3: Installation
Installation use only the Model GFR2 Sprinkler wrench. Use of Models F1 Res sprinklers are to be installed as wrenches other than those specified may damage shown. Model F1, F2 and FP Escutcheons, illustrated these sprinklers. herewith, are the only recessed escutcheons to be used Note: A ‘leak tight”... - Page 4 Technical Data: F1 Res 49 Pendent and Recessed Pendent Escutcheon , F1 or F2, Data: Face of fitting to Sprinkler Max. Nominal Max. Sprinkler Adjustment “A” Actual Type ceiling Temp. Ambient Thread Orifice Pressure Length Inch (mm) Inch (mm) Inch (mm) Rating Temp.
- Page 5 9.2 (0.63) Model F1 Res 49, 58 & 76 Model F1 Res 49, 58 & 76 Recessed Pendent / FP CCP Pendent FP push-on/thread-off escutcheon Fig. 4 Fig. 3 NOTE: The F1 Res 76 will use a 1" x ¾" reducer.
- Page 6 Technical Data: F1 Res 49 CCP Pendent and Recessed Pendent / FP CCP Options Data: Sprinkler Max. Nominal Max. Sprinkler “A” “B” Assembly Temp. Ambient Cover Adjustment CCP Height Thread Orifice Pressure Length Temp. Inch (mm) Inch (mm) Rating Temp.
- Page 7 Model F1 Res 44 & 58 HSW Model F1 Res 44 & 58 Recessed HSW/F2 ² (13mm) F2 escutcheon, adjustment Technical Data: F1 Res 44 HSW & HSW/F2 Escutcheon, F2, Data: Sprinkler Max. Face of Fitting Nominal Max. Sprinkler Adjustment...
- Page 8 Model F1 Res 44 SWC Fig. 5 Technical Data: F1 Res 44 SWC Sprinkler Nominal Max. Sprinkler CoverTemp. Max. Temp. Thread Orifice Pressure Length Rating AmbientTemp. Rating Size Inch Factor Inch (mm) °F °C °F (bar) °F °C (mm) °C ½²...
-
Page 9: Ordering Information
Technical Data: F1 Res 58 HSW & HSW/F2 Escutcheon, F2, Data: Face of Fitting Sprinkler Max. Nominal Max. Sprinkler Adjustment Type to wall Temp. Ambient Thread Orifice Pressure Length Inch (mm) Rating Temp. Inch (mm) Size Inch Factor Inch (mm) °F... - Page 10 Maintenance Model F1 Res 49 & 58 Recessed Pendent/F1, Model F1 Res 49, F1 Res 58 & F1 Res 76 Sprinklers Model F1 Res 49 & 58 Recessed Pendent/F2, should be inspected quarterly, and the sprinkler system maintained in accordance with NFPA 25, 13, 13D, and Model F1 Res 49 &...
- Page 11 [155°F (68°C)] [Custom Color– specify]. ]. Concealed pendent sprinklers [175°F (79°C)]. Sprinklers shall have a nominal K-factor of shall be Reliable Model F1 Res 76 CCP, SIN R7618 (Bulletin 7.6. Standard finish: [Bronze] [Chrome-plated] [White 135).
- Page 12 Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances, whenever applicable. Products manufactured and distributed by RELIABLE have been protecting life and property for over 80 years, and are installed and serviced by the most highly qualified and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.
