Model F1FR56 Sprinkler Types
Standard Spray Upright
Standard Spray Pendent
Conventional Upright/Pendent
Vertical Sidewall
Horizontal Sidewall

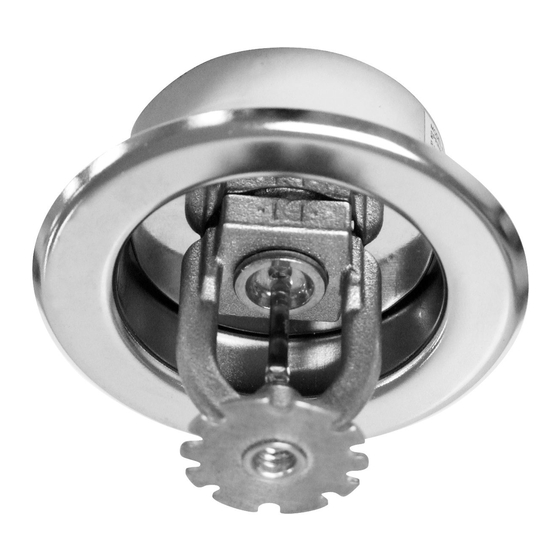

Model F1FR56 Recessed Sprinkler Types
Standard Spray Pendent
Horizontal Sidewall
Model F1FR56 Concealed Sprinkler Types
Standard Spray Pendent
Model F1FR42, F1FRXLH & F1FR28 Sprinkler
Types
Standard Spray Upright
Standard Spray Pendent
Model F1FR40 Sprinkler Types
Standard Spray Pendent
Model F1FR42, F1FR40, F1FRXLH & F1FR28
Recessed Sprinkler Types
Standard Spray Pendent
Model F1FR56LL & F1FR42LL Low Lead Sprinkler
Types
Standard Spray Pendent with less than 0.25% Lead
Content
Listing & Approvals
The following organizations provide Listings or Approvals
for various Model F1FR series sprinklers. See the Design
and Installation table in this Bulletin for information on
specific listings and approvals applicable to each sprin-
kler.
1. Underwriters Laboratories Inc. and Certified for
Canada (cULus) in accordance with ANSI/UL199.
2. FM Approvals (FM)
3. Loss Prevention Certification Board (LPCB)
4. VdS Schadenverhütung GmbH (VdS)
5. Underwriters Laboratories Inc. and Underwriters
Laboratories of Canada Certified for Health Effects
to NSF/ANSI Standard 61 Annex G (ULH)
6. EC Certificate: 0786-CPD-40239 (RA1414), 0786-
CPD-40251 (RA1425), 0786-CPD-40252 (RA1475)
(EC)
7. WaterMark certified.
(WM)
UL Listing Category
Sprinklers, Automatic & Open (VNIV)
Quick Response Sprinkler
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Certificate Number 23347.

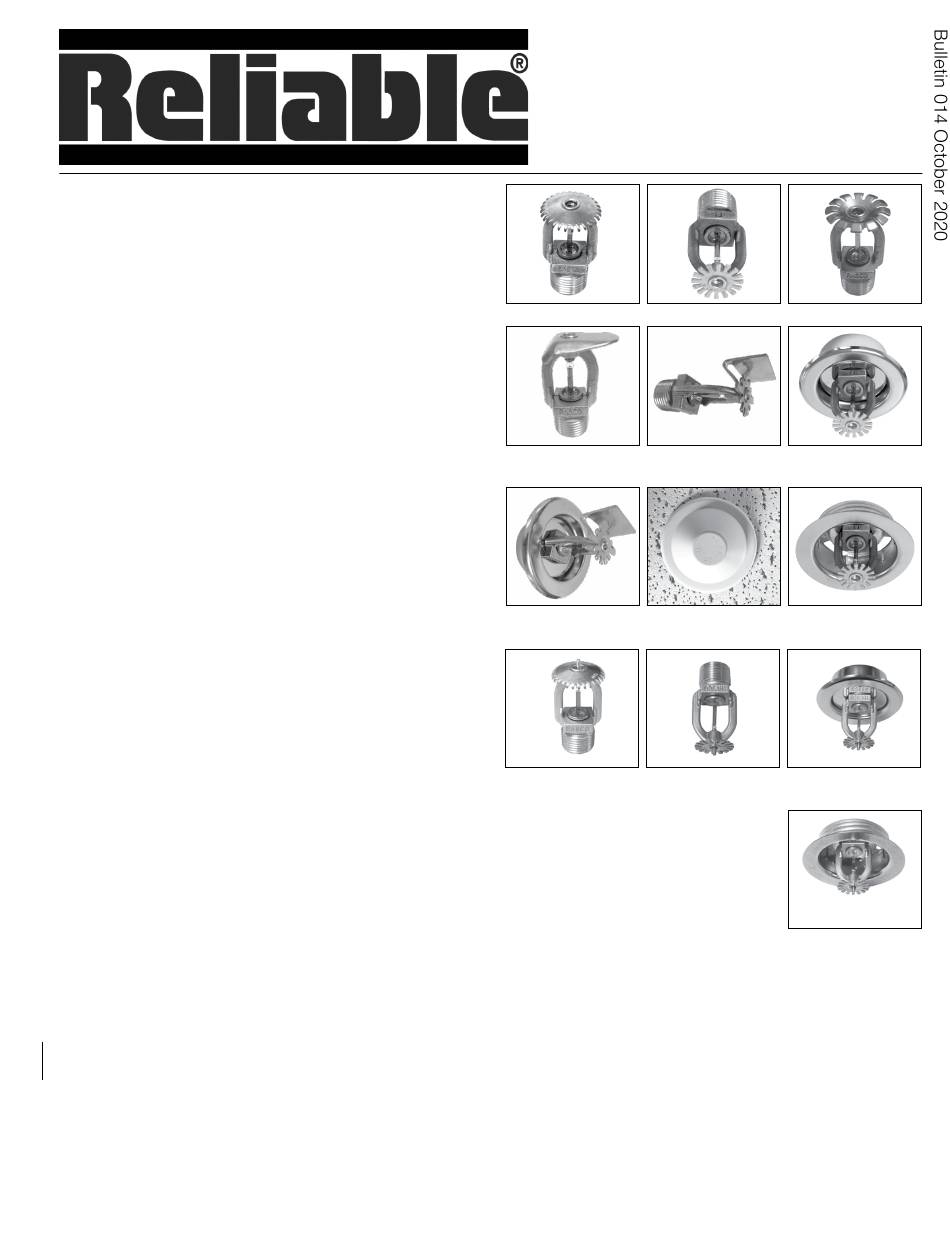

Model F1FR Series
Quick Response
Glass Bulb Sprinklers
Upright
Vertical Sidewall
Horizontal Sidewall
Concealed
Recessed
Horizontal Sidewall
XLH Upright
XLH Pendent
Product Description
Reliable Model F1FR series sprinklers
are quick-response automatic sprin-
klers with a glass bulb thermal element.
Model F1FR series sprinklers are Stan-
dard Spray sprinklers, with the excep-
tion of the Model F1FR56 Conventional
sprinkler which is an Old-style/Conven-
tional sprinkler.
The Model F1FR Series automatic sprinklers utilize a 3.0
mm frangible glass bulb. These sprinklers have demonstrat-
ed response times in laboratory tests which are five to ten
times faster than standard response sprinklers. This quick
response enables the Model F1FR Series sprinklers to apply
water to a fire faster than standard-response sprinklers of the
same temperature rating.
The glass bulb consists of an accurately controlled amount
of special fluid hermetically sealed inside a precisely man-
ufactured glass capsule. This glass bulb is specially con-
structed to provide fast thermal response.
Bulletin 014 October 2020
Pendent
Conventional
Recessed
Pendent/F1/F2
Recessed
Pendent
Pendent/FP
XLH Recessed
Pendent F1/F2
XLH Recessed
Pendent FP
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Reliable F1FR Series
Summary of Contents for Reliable F1FR Series
- Page 1 The glass bulb consists of an accurately controlled amount of special fluid hermetically sealed inside a precisely man- ufactured glass capsule. This glass bulb is specially con- structed to provide fast thermal response. Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523...
-
Page 2: Installation
Bulletin identifies the only recessed escutcheons • Flush, recessed, and concealed installations that are permitted to be used with each Model F1FR Series See the Design and Installation Information table in this Recessed sprinkler. The use of any other recessed escutch- Bulletin for information on the approvals and availability of eon will void all approvals and negate all warranties. - Page 3 Norbulb brand glass bulbs with the 1/2-inch (12.7mm) adjustment Model CCP cover plate only. Model F1FR56 Concealed Pendent and Model F1FR56LL Concealed Pendent sprinklers must be used with Reliable Model CCP cover plates, available as either standard depth with 1/2-inch (12.7mm) of adjustment or low profile with 5/16-inch (8.0 mm) of adjustment.
- Page 4 FM, LPCB dent or Upright) * Model F1FR56 Concealed Pendent and F1FR56LL Concealed Pendent sprinklers must be used with Reliable Model CCP cover plates. For Ordinary Temperature Classification sprinklers use a 135°F (57°C) temperature rated cover plate. For Intermediate Temperature Classification sprinklers use a 165°F (74°C) temperature rated cover plate.
- Page 5 Fig. 1 Model F1FR56, F1FR56LL, F1FR42, F1FR40, F1FR42LL, F1FRXLH & F1FR28 Recessed Pendent sprinkler with Model F1 or F2 escutcheon Fig. 2 Model F1FR56, F1FR56LL, F1FR42, F1FR40, F1FR42LL, F1FRXLH & F1FR28 Recessed Pendent sprinkler with Model FP escutcheon...
- Page 6 Fig. 3 Model F1FR56 Recessed Horizontal Sidewall sprinkler with Model F1 or F2 escutcheon Fig. 4 Model F1FR56/F1FR56LL Concealed Pendent sprinkler with standard depth 1/2-inch (12.7mm) adjustment - Model CCP cover plate...
-
Page 7: Maintenance
RA1414, RA1435 and RA1425 in standard black or white. LPCB and VdS Approved finish applies only to RA1425, RA1414, RA1418 (VdS) and RA1475. Note: When Model F1FR Series Recessed sprinklers are ordered, the cULus listed Corrosion Resistant sprinklers and escutcheons are packaged separately. - Page 8 The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products manufactured and distributed by Reliable have been protecting life and property for over 100 years. Manufactured by Reliable Automatic Sprinkler Co., Inc.
