Reliable F1 Quick Start Manual

Model F1 Res Sprinklers engineered for the lowest fl ows
to meet the minimum design density of .05 gpm/ft
Types:
1. F1 Res 30 Pendent
2. F1 Res 30 Recessed Pendent/F2
3. F1 Res 30 Recessed Pendent/FP
4. F1 Res 49 Pendent
5. F1 Res 49 Recessed Pendent/F1
6. F1 Res 49 Recessed Pendent/FP
7. F1 Res 58 Pendent
8. F1 Res 58 Recessed Pendent/F1
9. F1 Res 58 Recessed Pendent/FP
10. F1 Res 76 Pendent
11. F1 Res 76 Recessed Pendent/F1
12. F1 Res 76 Recessed Pendent/FP
13. F1 Res 30 CCP Pendent
14. F1 Res 49 CCP Pendent
15. F1 Res 58 CCP Pendent
16. F1 Res 76 CCP Pendent
17. F1 Res 44 HSW
18. F1 Res 44 Recessed HSW/F2
19. F1 Res 58 HSW
20. F1 Res 58 HSW Recessed HSW/F2
21. F1 Res 44 SWC
Listings & Approvals
1. Listed by Underwriters Laboratories Inc. and
UL Certified for Canada (cULus)
2. NYC MEA 258-93-E
Slope Ceiling Approvals: Refer to Bulletin 035
Sprinklers for .10 Density: Refer to Bulletin 176
UL Listing Category
Residential Automatic Sprinkler
UL Guide Number
VKKW
Patents
US Patent No. 6,516,893 applies to the
Model F1 Res 49 & 58 Pendent Sprinklers
Product Description

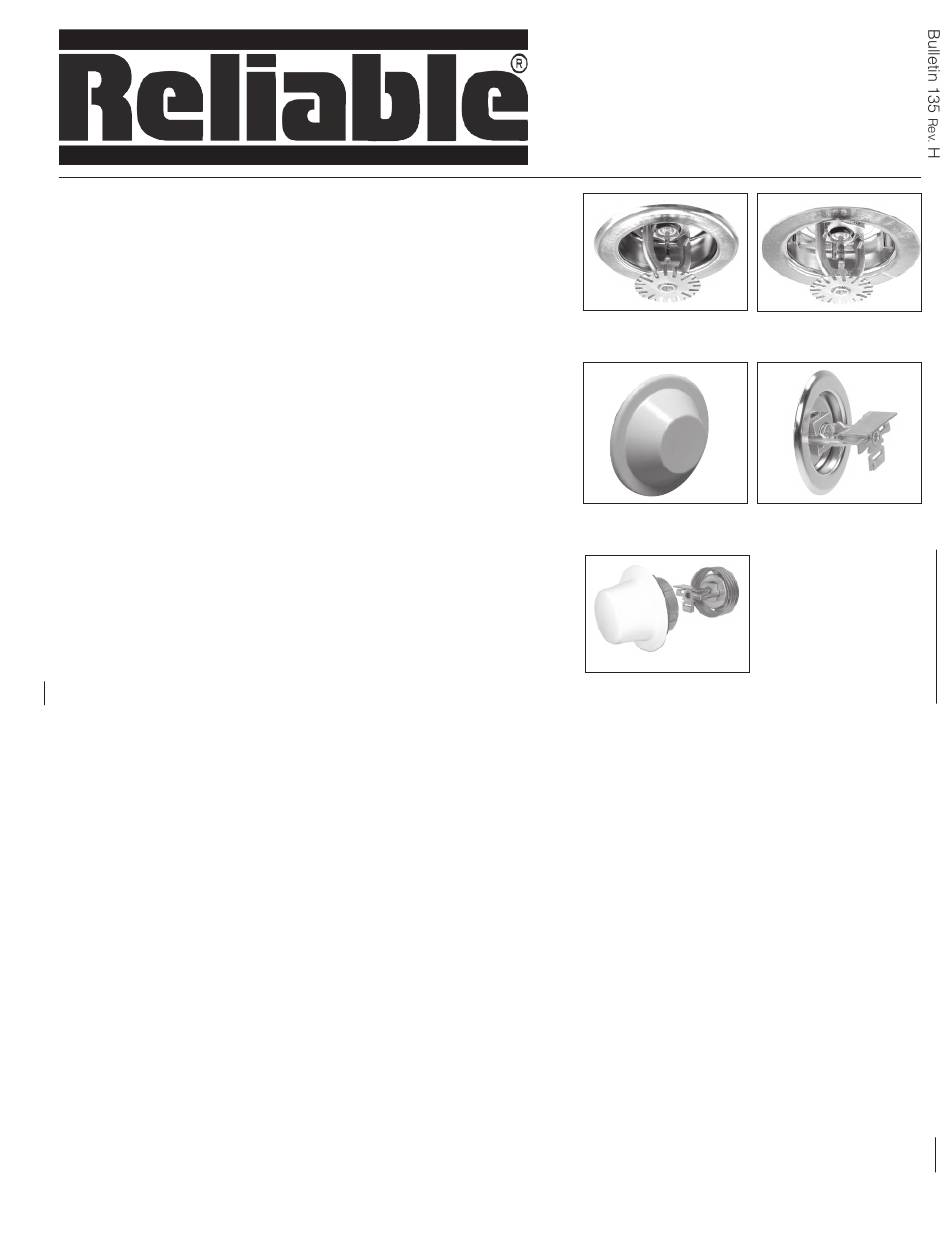

Model F1 Res Pendent sprinklers (Figs. 1, 2, 3, & 4) are
fast response sprinklers combining excellent durability,
high sensitivity glass-bulb and low profile decorative de-
sign. The F1 Res Horizontal Sidewall sprinklers (Figs. 5, 6
& 7) are equally attractive when above ceiling piping can-
not be used.
The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model F1
Residential Sprinklers for
Design Density of .05 gpm/ft
2
F1 Res 30, 49, 58 & 76
Recessed Pendent / F1

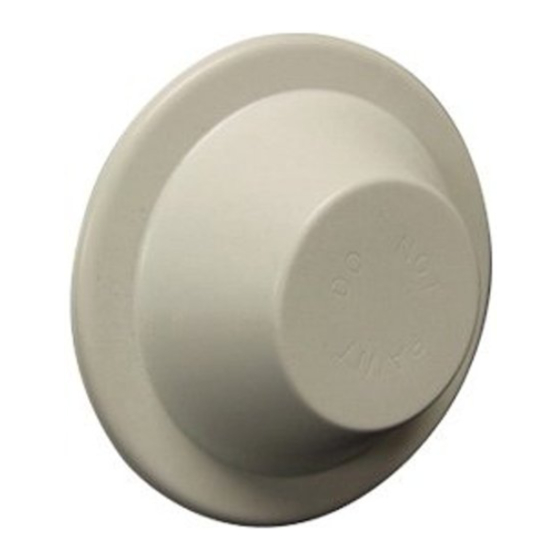

F1 Res 30, 49, 58 & 76
CCP Pendent
F1 Res 44 SWC
The 3mm glass-bulb pendent sprinklers permit the effi-
cient use of residential water supplies for sprinkler cover-
age in residential fire protection design.
The low flow F1 Res sprinklers are specially engineered
for fast thermal response to meet the sensitive fire protec-
tion application needs of the latest residential market stan-
dards (UL 1626 Standard). Upon fire conditions, rising
heat causes a sprinkler's heat-sensitive glass-bulb to shat-
ter, releasing the waterway for water flow onto the deflector,
evenly distributing the discharged water to control a fire.
Technical Data:
• Thermal Sensor: Nominal 3mm glass-bulb
• Sprinkler Frame : Brass Casting
• Sprinklers' Pressure Rating : 175 psi
Factory Hydrostatically Tested to 500 psi
• Thread Size: ½" NPT (R½)
• K-Factor: 3.0 (Actual) - F1 Res 30 Pendent Sprinkler
4.9 (Actual) - F1 Res 49 Pendent Sprinkler
5.8 (Actual) - F1 Res 58 Pendent & HSW Sprinkler
7.6 (Actual) - F1 Res 76 Pendent Sprinkler
4.4 (Actual) - F1 Res 44 HSW Sprinkler
• Density: Minimum 0.05 gpm/ft
Bulletin 135 H
Rev.
2
F1 Res 30, 49, 58 & 76
Recessed Pendent / FP
F1 Res 44 & 58
Recessed HSW/F2
2
