Terminal Legend
AC/AC
– DC +
– BAT +

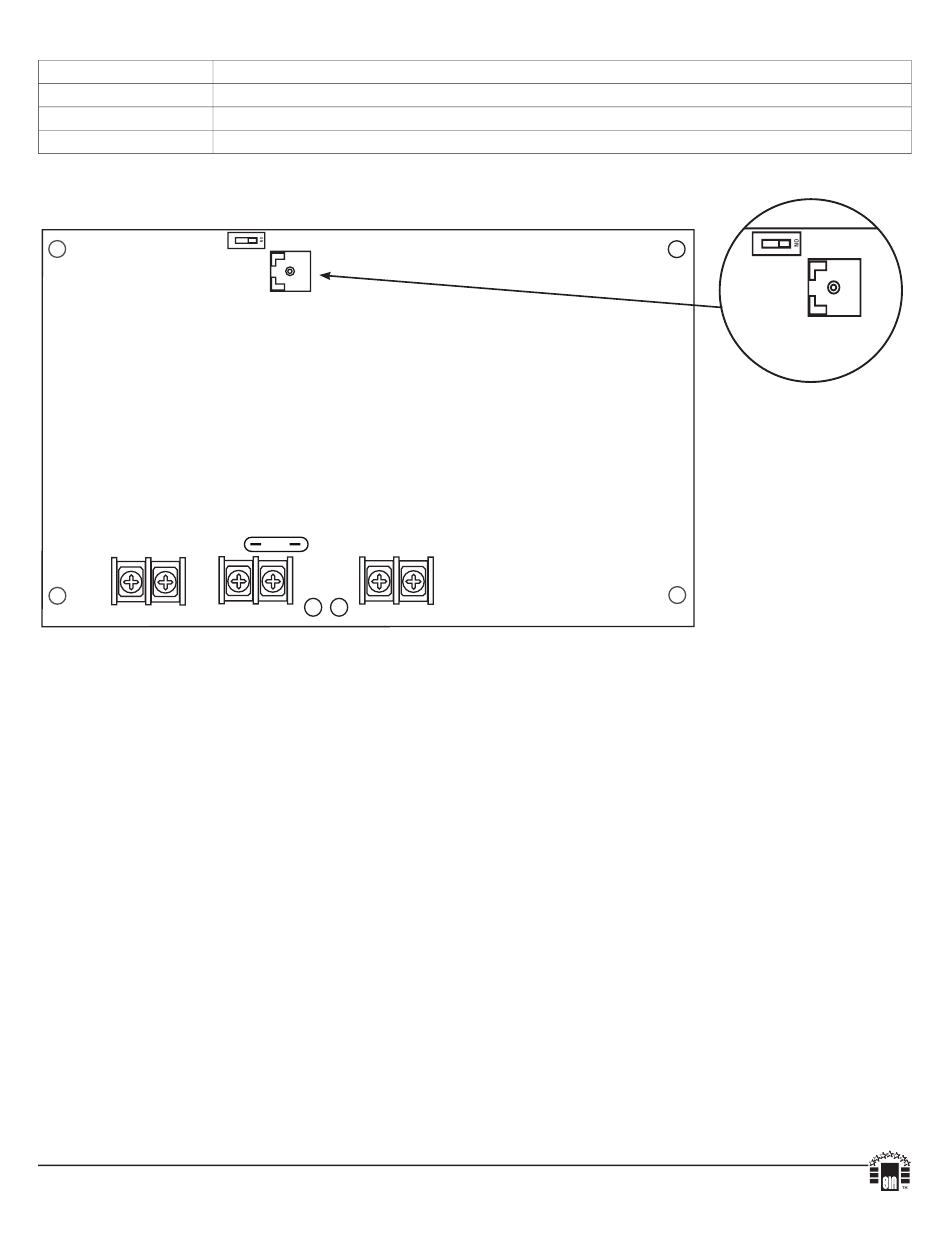

Fig. 1
AC AC
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
IISMP7 - Rev. 110606
All manuals and user guides at all-guides.com

Terminal Identification:

Function/Description
Low voltage AC input (24VAC or 28VAC / 175VA).
12VDC / 24VDC @ 6A continuous output.
Stand-by battery connections. Maximum charge rate 0.7A.
OFF 24VDC
ON 12VDC
15
AC DC
--- DC + --- BAT +
AC
B26S
Fig. 1a
OFF 24VDC
ON 12VDC
15
--- DC +
AC
AC DC
--- BA
