1.
RS232 Communication interface
2.
USB Communication interface
3.
GPIB Communication interface
4.
Remote sense terminal and the output terminal
5.
Cooling fans
6.
AC power socket
⚫

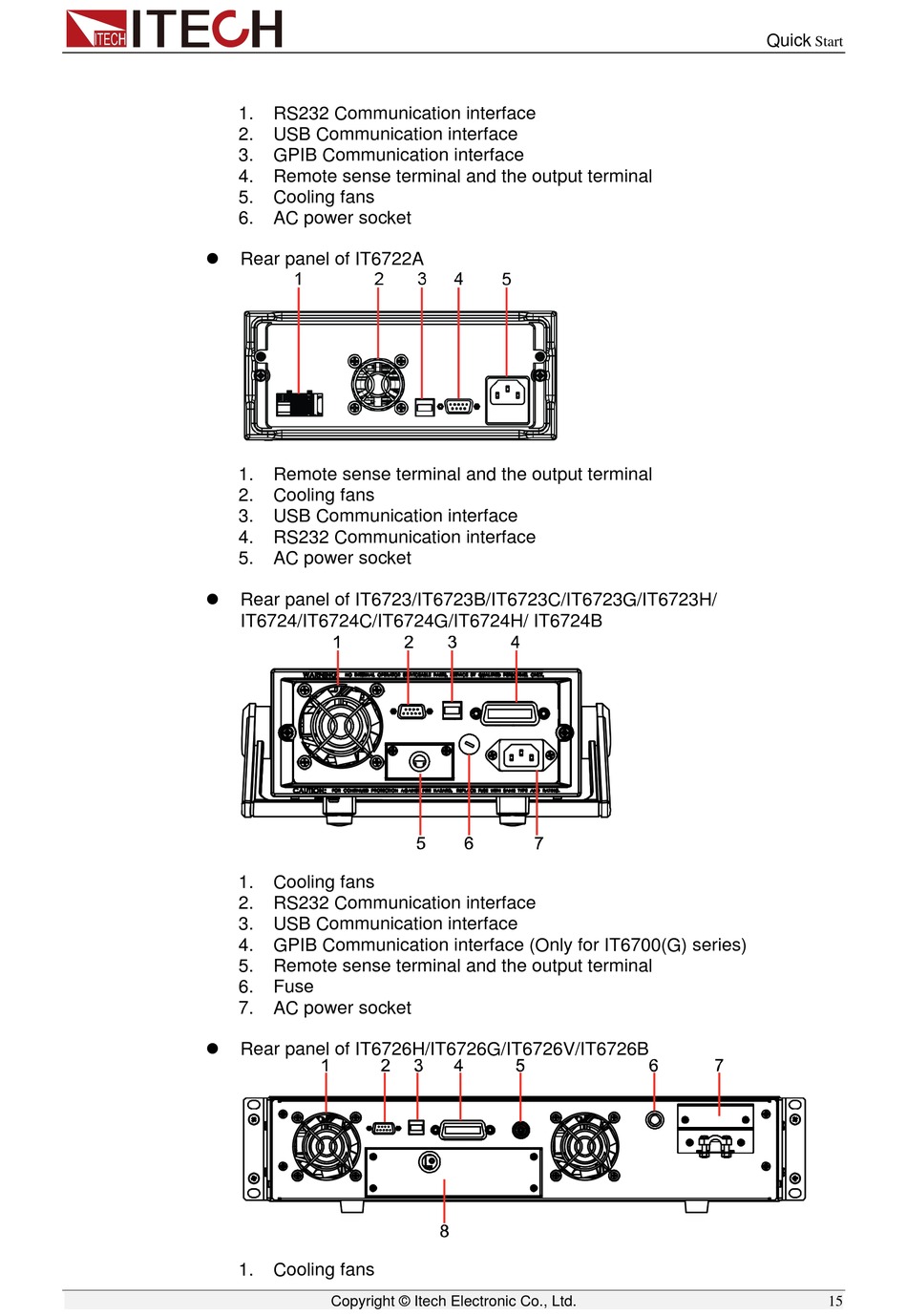

Rear panel of IT6722A
1.
Remote sense terminal and the output terminal
2.
Cooling fans
3.
USB Communication interface
4.
RS232 Communication interface
5.
AC power socket
⚫
Rear panel of IT6723/IT6723B/IT6723C/IT6723G/IT6723H/
IT6724/IT6724C/IT6724G/IT6724H/ IT6724B
1.
Cooling fans
2.
RS232 Communication interface
3.
USB Communication interface
4.
GPIB Communication interface (Only for IT6700(G) series)
5.
Remote sense terminal and the output terminal
6.
Fuse
7.
AC power socket
⚫
Rear panel of IT6726H/IT6726G/IT6726V/IT6726B
1.
Cooling fans
Copyright © Itech Electronic Co., Ltd.
Quick
Start
15
