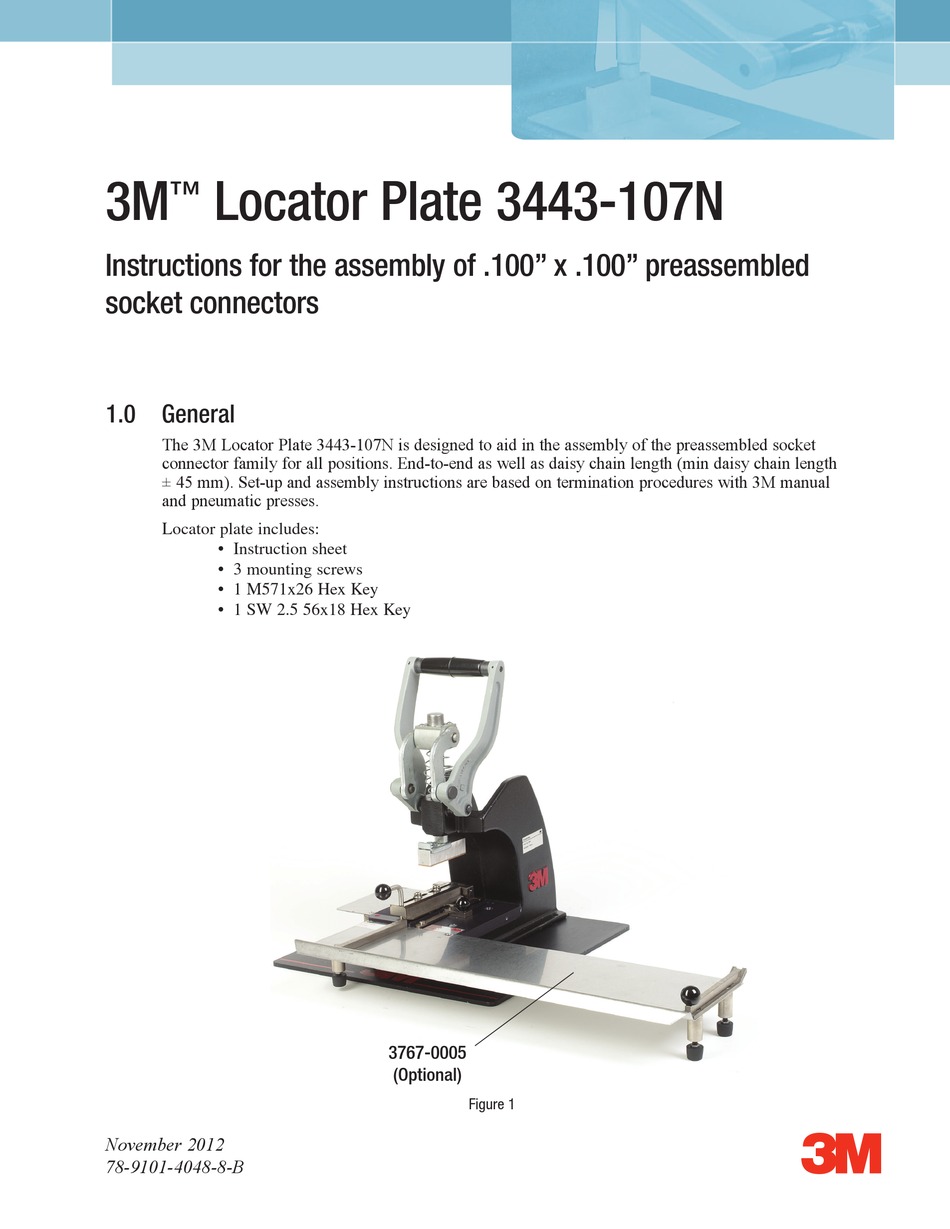

3M 3443-107N Instructions For The Assembly

Locator plate

Locator Plate 3443-107N

™

Instructions for the assembly of .100" x .100" preassembled

socket connectors

1.0

General

The 3M Locator Plate 3443-107N is designed to aid in the assembly of the preassembled socket

connector family for all positions. End-to-end as well as daisy chain length (min daisy chain length

± 45 mm). Set-up and assembly instructions are based on termination procedures with 3M manual

and pneumatic presses.

Locator plate includes:

• Instruction sheet

• 3 mounting screws

• 1 M571x26 Hex Key

• 1 SW 2.5 56x18 Hex Key

November 2012

78-9101-4048-8-B

3767-0005

(Optional)

Figure 1

Table of Contents

Do you have a question about the 3443-107N and is the answer not in the manual?

Page 1 General The 3M Locator Plate 3443-107N is designed to aid in the assembly of the preassembled socket connector family for all positions. End-to-end as well as daisy chain length (min daisy chain length ± 45 mm). Set-up and assembly instructions are based on termination procedures with 3M manual and pneumatic presses.
Page 2 2.1 Mount lever ① on the guiding wing ② and secure by locking screw ③. Make sure that the plastic ball is facing towards the operator (see Figure 2). 2.2 Remove the platen from the assembly press. Adjust shut height to 17 for the 3M Assembly Press ™...
Page 3 3.7 Slide the connector into the guiding groove against the connector locator stop ⑦. 3.8 Place the cable ⑩ into the base plate serrations. For end-to-end assemblies, smoothly slide the cable between cable guides ④ ⑥, under the guiding wing ② against cable stop ⑨. For daisy chain assemblies, until the required length is obtained.
Page 4 Warranty; Limited Remedy; Limited Liability. This product will be free from defects in material and manufacture for a period of 90 days from the time of purchase. 3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
