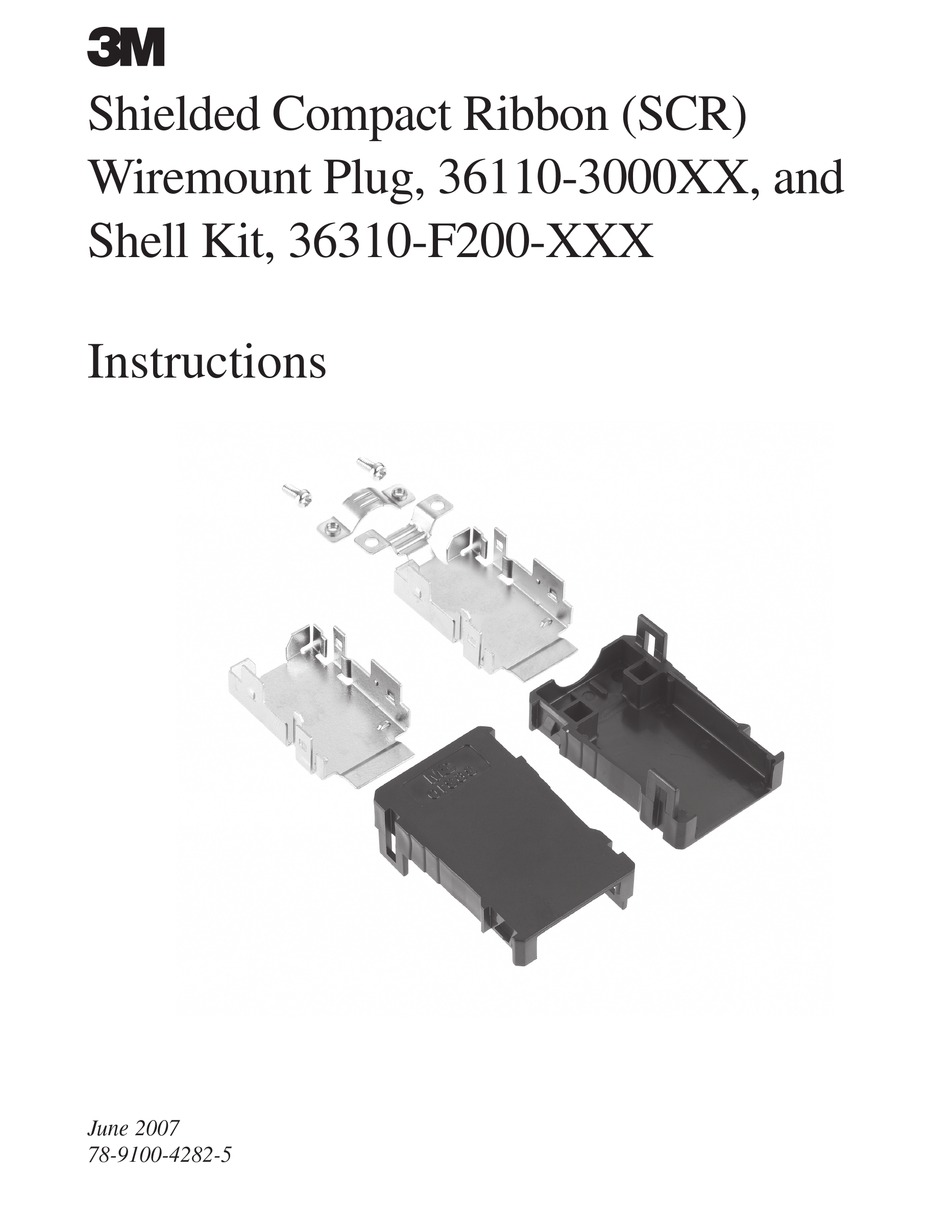

- Page 1 Shielded Compact Ribbon (SCR) Wiremount Plug, 36110-3000XX, and Shell Kit, 36310-F200-XXX Instructions June 2007 78-9100-4282-5...

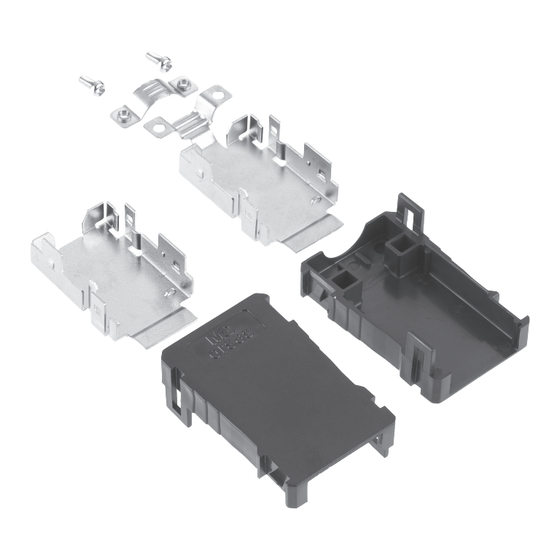

- Page 2 General This instruction manual explains the method of assembling the 3M Shielded Compact Ribbon (SCR) ™ Wiremount Plug and Shell Kit. Full details of wiring pin-outs vary by application and are not covered in this document. Components The components of the SCR Wiremount Plug and Shell Kit are listed below (reference Figure A).
- Page 3 Assembly Procedure for 3M Shielded Compact Ribbon (SCR) Wiremount Plug and Shell Kit ™ Strip 19 – 25 mm [ 0.75” – 1.00”] of cable jacket. Note: Strip length may be adjusted to accommodate differing wire gauges. 19 - 25 mm Fig. 1.0 Fold back the metallic braid over the jacket.
- Page 4 Assembly Procedure for 3M Shielded Compact Ribbon (SCR) Wiremount Plug and Shell Kit ™ 5.0a Strip wires to a length of 4 – 6 mm [.15” - .25”]. Stranded wires may be tinned to prevent unraveling. Remove any loose strands that may cause electrical shorts. Fig. 5.0a 5.0b Cut heat-shrink tubing to approximately 10 mm [0.4”] and load one tube per wire.
- Page 5 Assembly Procedure for 3M Shielded Compact Ribbon (SCR) Wiremount Plug and Shell Kit ™ Assemble the connector into the metal shell base. Make sure that the connector body (1) is fully seated against the retreat stop (2) of the metal shell base. Make sure that the metal tabs (3) of the connector body lie inside the metal shell base (4).
- Page 6 This product will be free from defects in material and manufacture for a period of three (3) years from the date of manufacture. If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the defective product.
