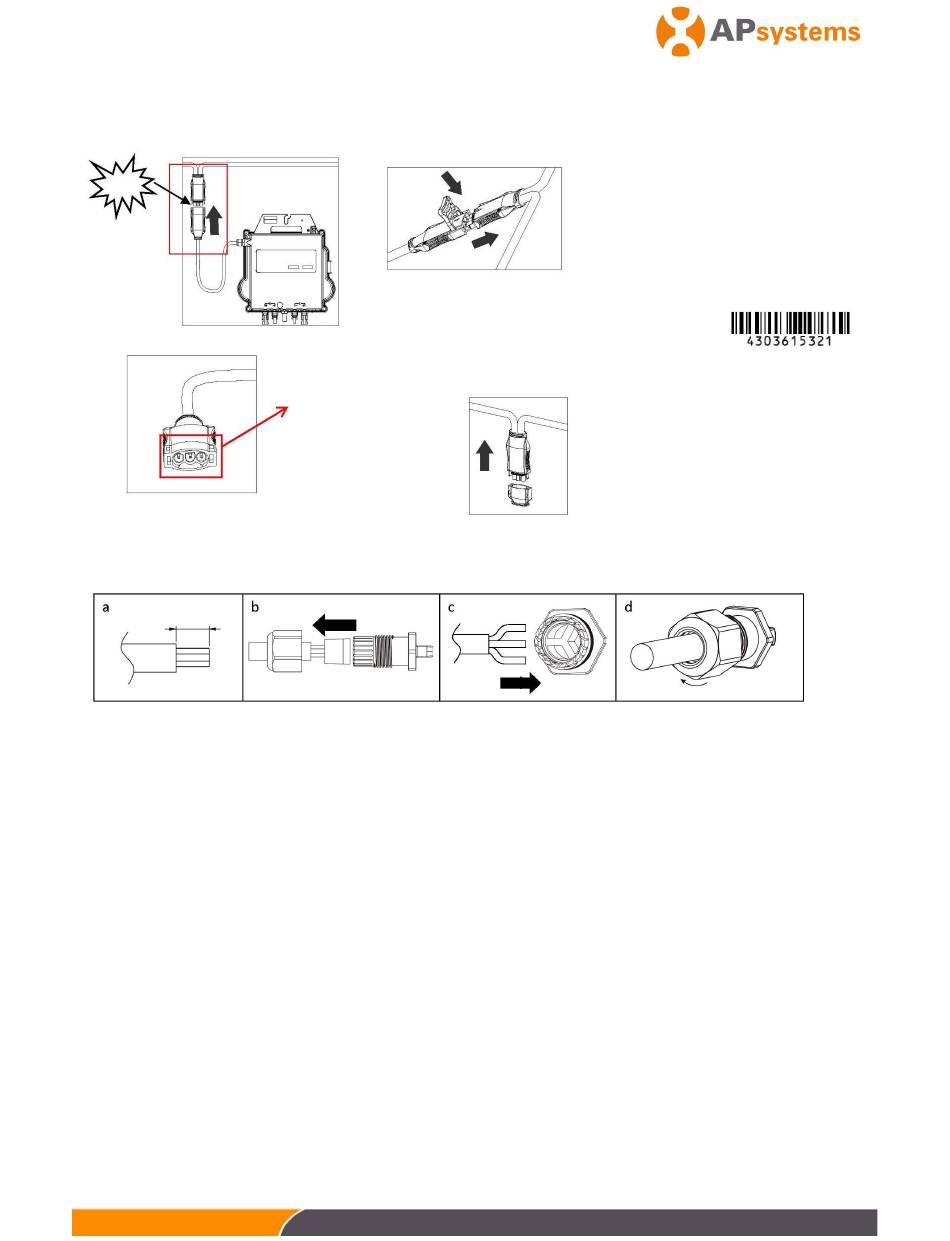

Step 5.

Connect the APsystems Microinverter to AC bus cable

Insert the microinverter AC connector into the trunk cable connector. Make sure to hear the "click" as a proof of robust
connection.
Click
NOTE: AC connector interface as follows.
Step 6.

Install a Bus Cable End Cap at the end of AC bus cable

25mm~30mm
Step 7.

Connect APsystems Microinverters to the PV Modules

NOTE: When plugging in the DC cables, the microinverter should immediately blink green ten times. This will happen
as soon as the DC cables are plugged in and will show that the microinverter is functioning correctly. This entire check
function will start and end within 10 seconds of plugging in the unit, so pay careful attention to these lights when
connecting the DC cables.
WARNING: Double check to make sure all of the AC and DC wiring has been correctly installed. Ensure that none of the
AC and/or DC wires are pinched or damaged. Make sure that all of the junction boxes are properly closed.
WARNING: Each PV panel must be carefully connected to the same channel.
Make sure to not split positive and negative DC cables into two different input channels: microinverter will be damaged
and warranty will not apply.
Best Practice: Use the AC Bus Cable Unlock Tool to disconnect
the connectors.
From left to right are:
L-PE-N.
Nut Seal Body
NOTE: Cover any unused connectors with Bus Cable Y-
CONN to protect the unused connectors.
3.3N · m
2022/01/06 Rev1.4
3
Quick Installation Guide
