4. APsystems Microinverter System Installation

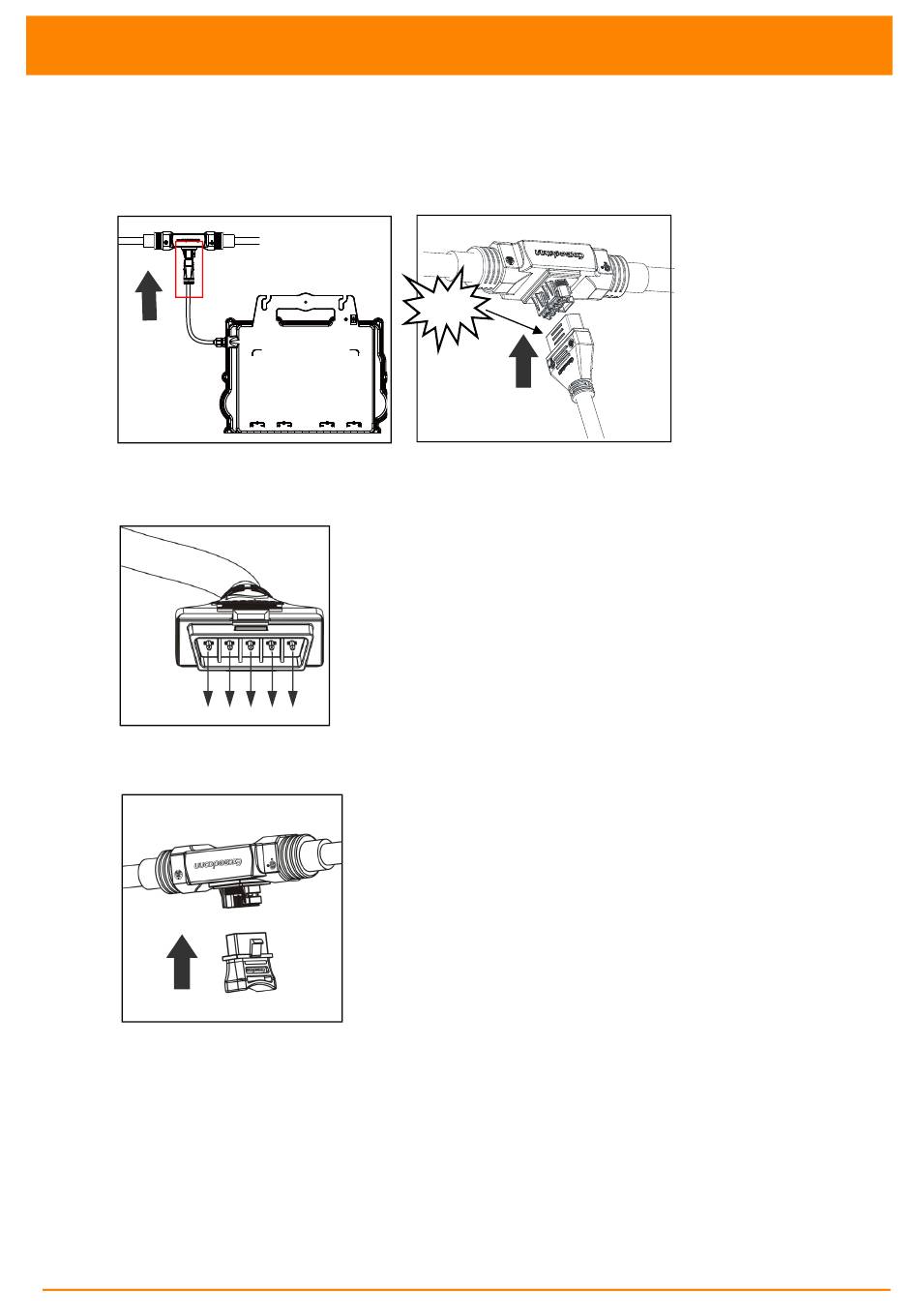

4.3.5 Step 5 - Connect the APsystems microinverter to AC bus cable
Insert the microinverter AC connector into the trunk cable connector. Make sure to hear the "click" as a proof of
robust connection
Click
AC connector interface as from left to right.
PE N L3 L2 L1
Cover any unused connectors with Bus Cable T-CONN Cap to protect the unused connectors.
APsystems Microinverter QT2-220 User Manual
