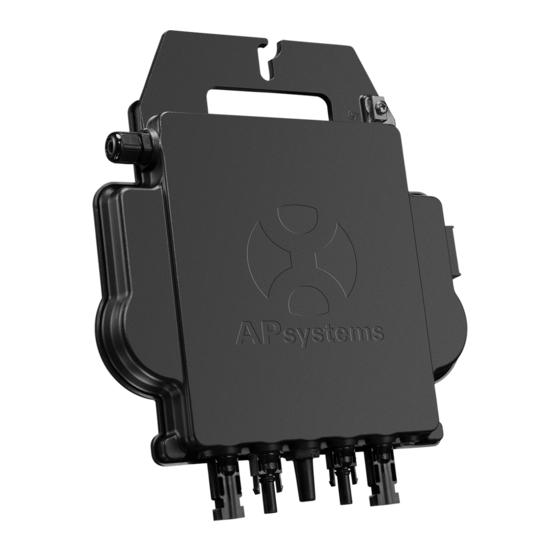

APsystems DS3 Series Installation Manual
Microinverters
Hide thumbs
Also See for DS3 Series:
- Manual (33 pages) ,
- User manual (25 pages) ,
- Installation & user manual (24 pages)
Table of Contents
Advertisement
Quick Links
ALTENERGY POWER SYSTEM Inc.
emea.APsystems.com
APsystems
Cypresbaan 7, 2908 LT, Capelle aan den Ijssel
The Netherlands
Tel: +31-10-2582670
Rue des Monts d'Or, ZAC de Folliouses Sud-Les Echets 01700 Miribel,
France
TEL: +33-481-65-60-40
EMAIL:info.emea@APsystems.com
© All Rights Reserved
EMAIL: info.emea@APsystems.com

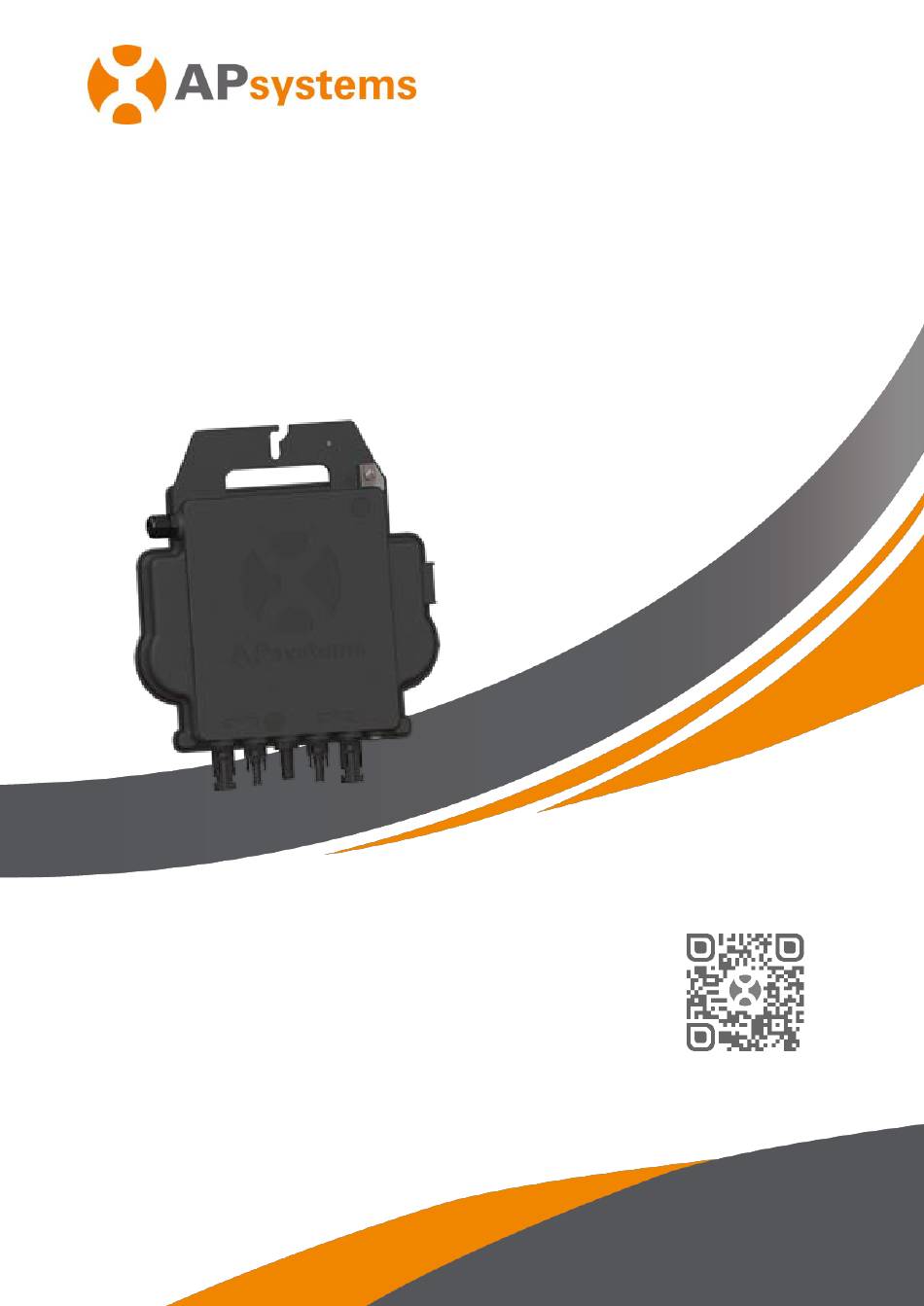

Installation Manual
APsystems DS3 series
DS3-L and DS3 Microinverters
Please scan this QR code to have
access to our APPs and Products
information
EMEA region
Advertisement
Table of Contents
Related Manuals for APsystems DS3 Series
Summary of Contents for APsystems DS3 Series
- Page 1 Installation Manual APsystems DS3 series DS3-L and DS3 Microinverters EMEA region ALTENERGY POWER SYSTEM Inc. emea.APsystems.com APsystems Cypresbaan 7, 2908 LT, Capelle aan den Ijssel The Netherlands Tel: +31-10-2582670 EMAIL: info.emea@APsystems.com Please scan this QR code to have access to our APPs and Products Rue des Monts d’Or, ZAC de Folliouses Sud-Les Echets 01700 Miribel,...
-
Page 2: Table Of Contents
4.3.4 Step 4 - Ground the system ......................... 10 4.3.5 Step 5 - Connect the APsystems microinverter to AC bus cable ............10 4.3.6 Step 6 - Install a Bus Cable End Cap at the end of AC bus cable ............11 4.3.7 Step 7 - Connect APsystems Microinverters to the PV Modules ............. -
Page 3: Important Safety Instructions
Do NOT disconnect the PV module from the APsystems Microinverter without first disconnecting the AC power. Be aware that the body of the APsystems Microinverter is the heat sink and can reach a temperature of 80°C. To reduce risk of burns, do not touch the body of the Microinverter. ... -
Page 4: Radio Interference Statement
1.Important Safety Instructions 1.2 Radio Interference Statement CE EMC Compliance：The APsystems Microinverter can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communication. APsystems Microinverter complies with CE EMC regulations, which are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Symbols Replace Words On The Equipment, On A Display, Or In Manuals
EMC and is authorized to energize, ground, and tag equipment, systems, and circuits in accordance with established safety procedures. The inverter and complete system may only be commissioned and operated by qualified personnel. APsystems DS3 series Installation Manual... -
Page 6: Apsystems Microinverter System Introduction
2.APsystems Microinverter System Introduction 2.1 Key elements of an APsystems system The APsystems Microinverter is used in utility-interactive grid-tied applications, comprised of three key elements: APsystems Microinverter APsystems Energy Communication Unit (ECU) APsystems Energy Monitor and Analysis (EMA) web-based monitoring and analysis system... -
Page 7: The Advantages Of An Apsystems System
When using an APsystems microinverter, PV modules are connected in parallel. Voltage at the back of each PV module never exceeds PV modules Voc, which is lower than 60 Vdc for most of PV modules used with APsystems microinverters. This low voltage is considered “safe to touch” by firemen department and will avoid risk of electrical shock, electrical arcs and fire hazards. -
Page 8: Apsystems Microinverter Ds3 Series Introduction
A 24/7 energy access through Apps or web based portal facilitate remote diagnosis and maintenance. The DS3 series is interactive with power grids through a feature referred to as RPC (Reactive Power Control) to better manage photovoltaic power spikes in the grid. With a performance and an efficiency of 97%, a unique integration with 20% less components, APsystems DS3-L and DS3 are a game changer to residential and commercial 3.2 Features of the DS3 microinverter... -
Page 9: Apsystems Microinverter System Installation
4.APsystems Microinverter System Installation A PV system using APsystems Microinverters is simple to install. Each Microinverter easily mounts on the PV racking, directly beneath the PV module(s). Low voltage DC wires connect from the PV module directly to the Microinverter, eliminating the risk of high DC voltage. -
Page 10: Installation Procedures
It is strictly prohibited to hand carry the microinverter by its AC cable. 4.3.3 Step 3 - Attach the APsystems Microinverters to the Racking a. Mark the location of the microinverter on the rack, with respect to the PV module junction box or any other obstructions. -
Page 11: Step 4 - Ground The System
Figure 3 4.3.5 Step 5 - Connect the APsystems microinverter to AC bus cable Insert the microinverter AC connector into the Y3 AC trunk cable connector. Make sure to hear the “click” as a proof of robust connection... -
Page 12: Step 6 - Install A Bus Cable End Cap At The End Of Ac Bus Cable
Strip cable jacket. c. Insert the wires into the cable clamps. Insert the cable end into the seal. d. Rotate the nut with 3.3N·m until the latching mechanism meets the base. Body Seal Figure 8 APsystems DS3 series Installation Manual... -
Page 13: Step 7 - Connect Apsystems Microinverters To The Pv Modules
4.APsystems Microinverter System Installation 4.3.7 Step 7 - Connect APsystems Microinverters to the PV Modules Figure 9 When plugging in the DC cables, the microinverter should immediately blink red one time and green t en times. This will happen as soon as the DC cables are plugged in and will show that the microinverter is functioning correctly. -
Page 14: Step 8 - Complete The Apsystems Installation Map
4.APsystems Microinverter System Installation 4.3.8 Step 8 - Complete the APsystems installation map a. Each APsystems Microinverter has 2 removable serial number labels. b. Complete installation map by sticking ID label of each microinverter at the right location. The second serial number label, could be stuck on the solar module frame, which could help later to... -
Page 15: Microinverter System Operating Instructions
Alternatively, LED sequences could be an indicator of microinverters status (see section 6.1) Once the ECU has been commissioned properly, the APsystems Microinverters will start to send performance data to the ECU. The time required for all of the Microinverters in the system to report to the ECU will vary depending on the number of Microinverters in the system. -
Page 16: Troubleshooting
Please contact your local APsystems Technical Support. 6.2 ECU_APP APsystems ECU_APP (available in the EMA Manager APP) is the recommended tool to do on-site troubleshooting. When connecting the ECU_APP to the ECU hotspot (please check ECU User Manual for more detailed information), installer can check every microinverter status (production, communication) but also Zigbee signal strength, grid profile and other insightful data helping the troubleshooting. -
Page 17: Apsystems Technical Support
6.0 Troubleshooting 6.5 APsystems Technical Support APsystems local Technical Support team is available to support professional installers to get familiar with our products and to troubleshoot installations when needed. Do not attempt to repair APsystems Microinverters. Please contact your local APsystems Technical Support. -
Page 18: Replace A Microinverter
7.Replace a microinverter Follow the procedure to replace a failed APsystems Microinverter A. Disconnect the APsystems Microinverter from the PV Module, in the order shown below: 1. Disconnect the AC by turning off the branch circuit breaker. 2. Disconnect the inverter AC connector from the AC Bus. -
Page 19: Technical Data
①. Be sure to verify that the voltage and current specifications of your PV module are compatible with the range allowed on APsystems Microinverter. Please check the micro-inverter datasheet. ②. DC operating voltage range of the PV module must be within allowable input voltage range of the APsystems Microinverter. -
Page 20: Ds3 Series Microinverter Datasheet
** Limits may vary. Refer to local requirements to define the number of microinverters per branch in your area. *** To be eligible for the warranty, APsystems microinverters need to be monitored via the EMA portal. Please refer to our warranty T&Cs available o n emea.APsystems.com... -
Page 21: Ds3 Series - Wiring Diagram
9. DS3 series - Wiring Diagram 9.1 Sample Wiring Diagram - Single Phase SOLAR PANEL BROWN - L BLUE - N YELLOW GREEN - PE AC JUNCTION BOX BUS CABLE END CAP INSTALL AT THE END OF AC BUS CABLE... -
Page 22: Apsystems Microinverter & Energy Communication Unit Installation Map
10 APsystems Microinverter & Energy Communication Unit Installation Map The APsystems Installation Map is a diagram of the physical location of each microinverter in your PV installation. Each APsystems microinverter has two serial number labels. Peel the one label and affix it to the respective location on the APsystems installation map.
