Summary of Contents for Forward Industries highmore Aggro HM-GD008-001

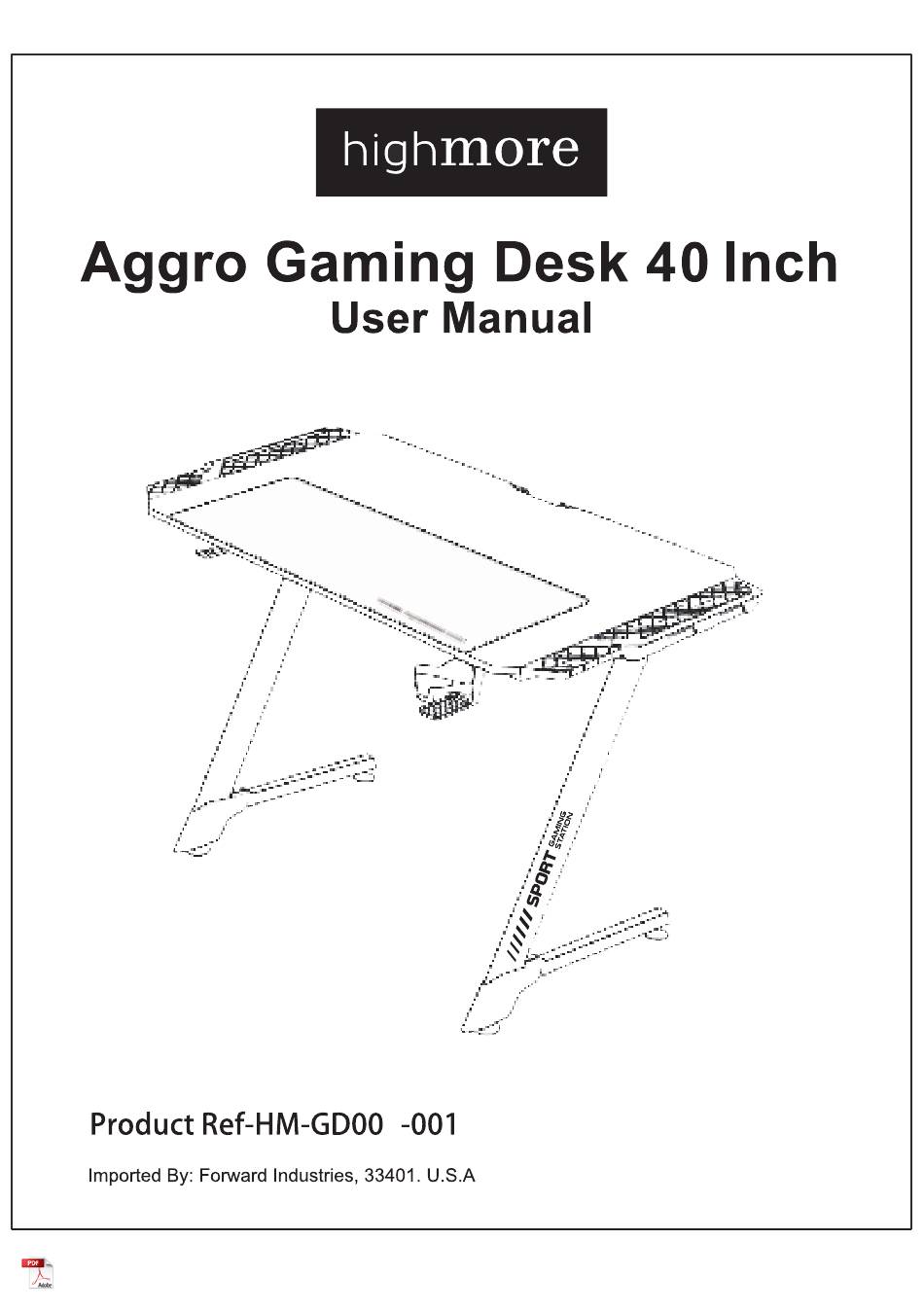

- Page 1 Issue 1 - 30/09/21...
- Page 2 1. The maximum weight that can be placed on this product is 176.4lbs. 2. This product must not be used as a seat. 3. Check carefully to ensure correct and complete assembly before using. 4. Don’t allow children to play near the chair as their behaviour is unpredictable. The manufacturer or importer is not responsible for loss, injury, or damage due to improper actions or use.
- Page 3 Table leg Qty 2 Support Qty 2 Rear brace (Left) Rear brace (Right) (20.86x0.98x28.11") (34.65x1.06x1.1") Qty 1 (7.87x1.97") Qty 1 (7.87x1.97") UNDERSIDE Table top Qty 1 Cup holder Qty 1 Headphone hook Qty 1 (39.37x23.62x0.59") (7.09x2.76") (5.12x1.97") Cable management box Cable management Cable management Leg cover Qty 2...
- Page 4 Screw Height adjustable foot Allen key Qty 1 M8x8.26" Qty 8 M8x1.96" Qty 2 Qty 4 Screw M4x6.29" Qty 52 Phone holder Qty 7 Pen holder Qty 1 Cable tie Qty 5 LED cable Qty 1...
- Page 5 STEP 1 Assemble supports between legs using screws Front Screws need to be checked and tightened again after assembly is completed. Screw Back Allen key Qty 1 M8x8.26" Qty 4 STEP 2 Assemble rear braces in the positions shown,at the back of the desk.
- Page 6 STEP 3 With help, carefully place desk top upside down onto a clean, flat, protected surface. With help, locate leg frame into position and secure using screws Back UNDERSIDE Front Screw Shown Upside Down Allen key Qty 1 M4x6.29" Qty 16 STEP 4 Assemble the two parts of cup holder...
- Page 7 STEP 5 Assemble cable clips to the underside of desk using screws Note: Cable clips are located at the back. Front Back Screw Allen key Qty 1 M4x6.29" Qty 4 STEP 6 Assemble cable management brackets to the back of desk top using screws...
- Page 8 STEP 7 Assemble cable management box between cable management brackets using screws Front Back Screw Allen key Qty 1 M4x6.29" Qty 4 STEP 8 With help, carefully turn the desk over into the standing position. Warning! The desk is heavy. Lift with care. Clip leg covers to legs as shown.
- Page 9 STEP 9 Assemble LED side extensions each side of the desk top using screws Connect cable in between LED side extensions as show. Use cable tie to support cable Stick decals legs as shown. Place Mouse Pad into position. Back Screw Allen key Qty 1 M4x6.29"...
- Page 10 STEP 10 Locate Phone Holders and Pen Holder required. Button M (means Mode) Press M once to turn RGB light on Press M twice to enter special volume control mode Press M three times to turn RGB light off Button C (means Colour switch) Press C to scroll through light colour options Phone holder Qty 7...
