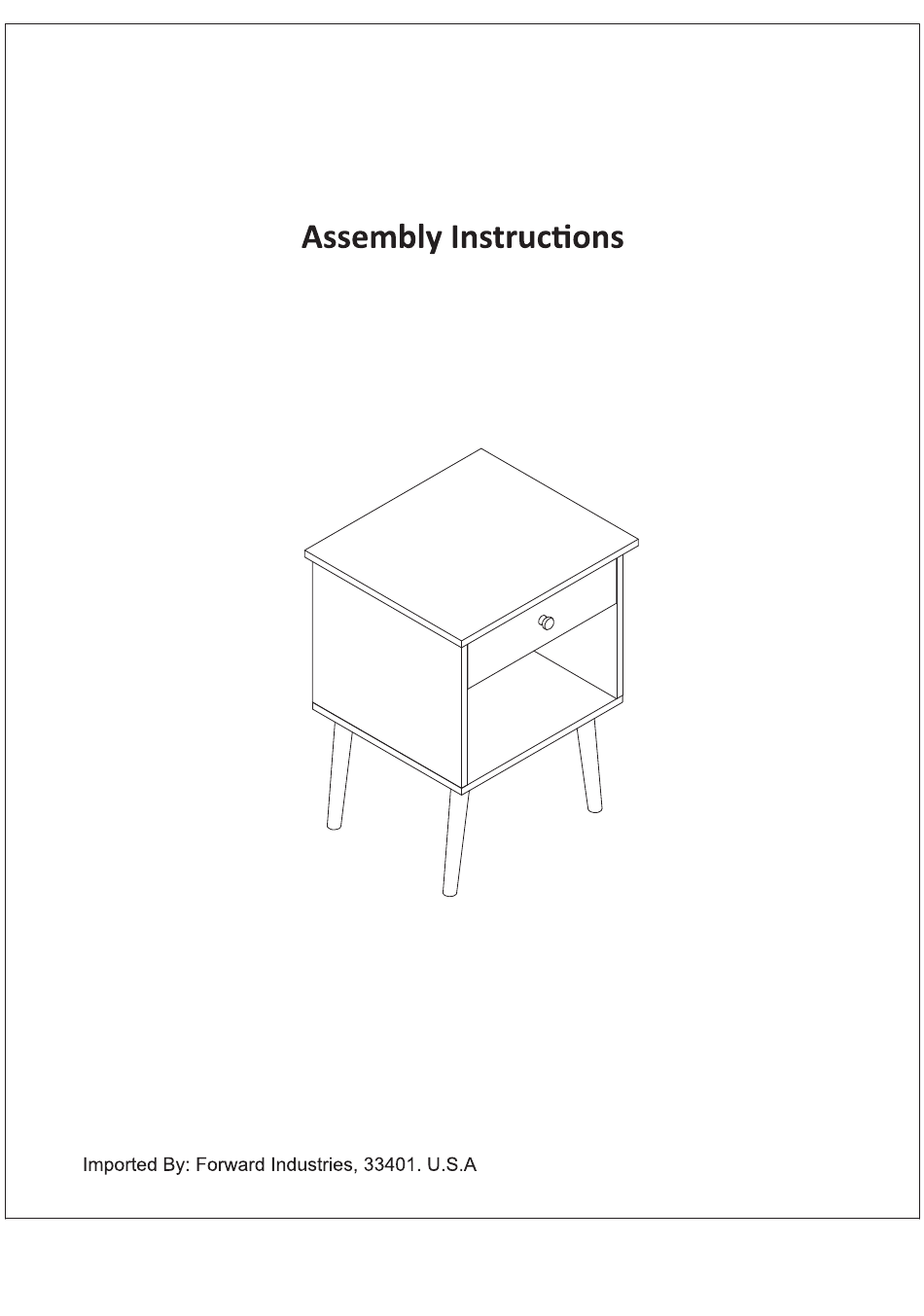

- Page 1 Nightstand Product Refs-HM-ST010-001 Issue 1 -14/12/20...
- Page 2 1. The maximum weight that can be placed on this product is 110lbs. 2. This product must not be used as a seat. 3. Check carefully to ensure correct and complete assembly before using. 4. Don’t allow children to play near the product as their behaviour is unpredictable. The manufacturer is not responsible for loss, injury, or damage due to improper actions or use.
- Page 3 Top Panel Qty 1 Side Panel (Left) Qty 1 (17.71×15.74×0.59") (12.99×14.96×0.59") Side Panel (Right) Qty 1 Base Panel Qty 1 (12.99×14.96×0.59") (16.14×14.96×0.59") Wooden Legs Qty 4 Back Panel Qty 1 (92.51") (15.66×13.74×0.11")
- Page 4 Drawer Base Qty 1 Drawer Front Qty 1 (13.18×13.93×0.11") (14.76×4.52×0.59") Drawer Side (Left) Qty 1 Drawer Side (Right) Qty 1 (13.38×3.74×0.47") (13.38×3.74×0.47") Drawer Back Panel Qty 1 (13.58×3.74×0.47")
- Page 5 Cam Dowel Qty 8 Wooden Dowel Qty 8 Large Cam Nut Qty 4 × × × 1.37") (M15 0.47”) 1.18") Screw Qty 4 Small Cam Nut Qty 4 Drawer Runner Qty 1 Pair (M3*0.39”) × (M15 0.37”) (11.81") Screw Qty 12 Wood Screw Qty 4 Screw Qty 2 ×...
- Page 6 561-465-0030, Option 0. Address: Forward Industries, 105 South Narcissus Avenue Suite 412, West Palm Beach, FL 33401...
- Page 7 STEP 1 Fit drawer runner F F F F F F F F F F F F F F E to side panels using screws F F F F F F F F F F F F F F F Fit wooden dowels F F F F F F F F F F F F F F A into side panels...
- Page 8 STEP 2 Assemble legs base panel using screws Screw Qty 8 M6 Screw Qty 1 STEP 3 Assemble side panels to base panel using screws Screw Qty 4 Allen Key Qty 1...
- Page 9 STEP 4 Fit cam dowels top panel and drawer front as shown. Underside Cam Dowel Qty 8 STEP 5 Stand the unit upright. Locate large cam nuts into side panels Locate top panel into position.Tighten cam nuts to sescure. Cam Nut Qty 4...
- Page 10 STEP 6 Fit back panel using screws Shown from back Screw Qty 12 STEP 7 Use self adhesive labels to cover fixing holes as shown. Paper Sticker Qty 8...
- Page 11 STEP 8 Assemble drawer back panel and side panels using screws Align grooves Slide drawer base into grooves. Assemble drawer front . Secure using small cam nuts Fit drawer using Knob screw Wood Screw Qty 4 Cam Nut Qty 4 Knob Qty 1 Screw Qty 1...
- Page 12 STEP 9 With help,stand the unit upright. Engage the drawer runners. STEP 10 Secure drawer body to runners using screws Screw Qty 2...
- Page 13 STEP 11...
