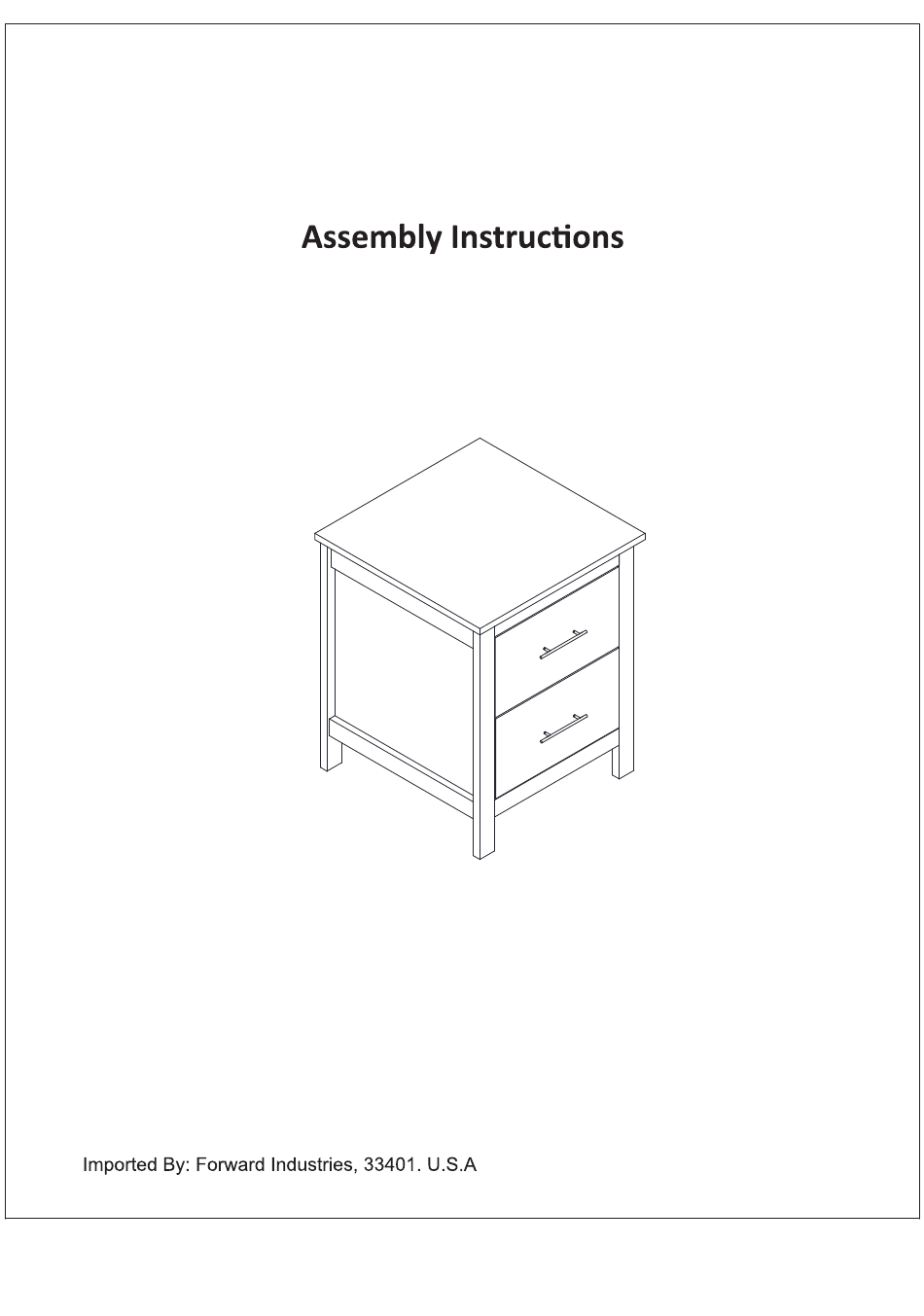

- Page 1 NIGHTSTAND Product Refs-HM-ST012-001 Issue 1 -11/11/20...
- Page 2 1. The maximum weight that can be placed on this product is 110lbs. 2. This product must not be used as a seat. 3. Check carefully to ensure correct and complete assembly before using. 4. Don’t allow children to play near the product as their behaviour is unpredictable. The manufacturer is not responsible for loss, injury, or damage due to improper actions or use.
- Page 3 Top Panel Qty 1 Side Panel (Left) Qty 1 (17.71×17.71×0.59") (21.45×17.51×4.5") Side Panel (Right)Qty 1 Upper Stretcher Qty 1 (21.45×17.51×4.5") (13.77×1.77×0.59") Bottom Stretcher Qty 2 Back Panel Qty 1 (13.77×1.77×0.59") (14.56×17.48×0.11")
- Page 4 Drawer Base Qty 2 Drawer Front Qty 2 (12.91×13.22×0.11") (13.62×6.69×0.59") Drawer Side (Left) Qty 2 Drawer Side (Right) Qty 2 (13.38×4.52×0.47") (13.38×4.52×0.47") Drawer Back Panel Qty 2 (12.59×4.52×0.47")
- Page 5 Wooden Dowel Qty 14 Cam Dowel Qty 16 Large Cam Nut Qty 4 × × × (M15 0.47”) 1.18") 1.37") Drawer Runner Qty 4 Small Cam Nut Qty 12 Screw Qty 8 × × (11.81") (M15 0.37”) 0.39”) Screw Qty 12 Wood Screw Qty 8 Screw Qty 4 ×...
- Page 6 STEP 1 Fit cam dowels side panels and drawer front Fit wooden dowels into side panels as shown. Wooden Dowel Qty 8 Cam Dowel Qty 12 STEP 2 Fit cam dowels top panel Fit wooden dowels into top panel shown. Wooden Dowel Qty 6 Cam Dowel Qty 4...
- Page 7 STEP 3 Assemble drawer runners to side F F F F F F F F F F F F F F E panels using screws F F F F F F F F F F F F F F F Drawer Runner Qty 4 Screw Qty 8...
- Page 8 STEP 4 Fit large cam nuts F F F F F F F F F F F F F F C into bottom stretchers Locate into position on right side panel Secure by tightening cam nuts. Locate top stretcher in the position shown. Large Cam Nut Qty 2 STEP 5 Repeat step 4 to...
- Page 9 STEP 6 With help , stand the unit upright. Insert cam nuts F F F F F F F F F F F F F F D into side panels Locate top panel into position and secure by tightening cam nuts. Small Cam Nut Qty 4 STEP 7 Fit back panel...
- Page 10 STEP 8 Assemble drawer back panel and side panels using screws Slide drawer base into grooves. Assemble drawer front . Secure using small cam nuts Fit drawer handle using screws Repeat for both drawers. Wood Screw Qty 8 Knob Qty 2 Small Cam Nut Qty 8 Screw Qty 4...
- Page 11 STEP 9 With help, stand the unit upright. Engage the drawer runners. Repeat for both drawers. STEP 10 Secure drawer bodies to runners using screws Repeat for both drawers. Screw Qty 4...
- Page 12 STEP 11...
