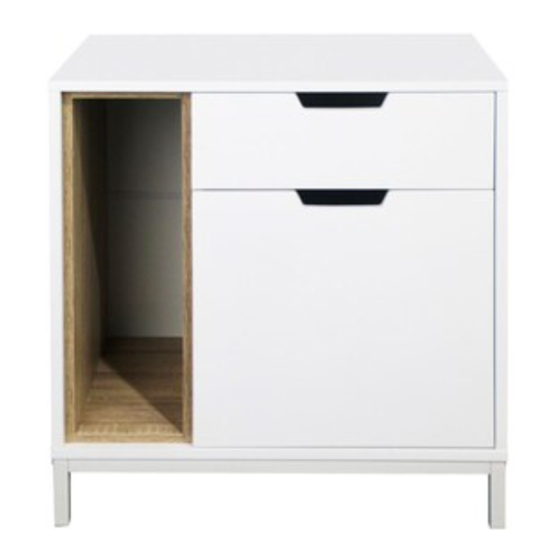

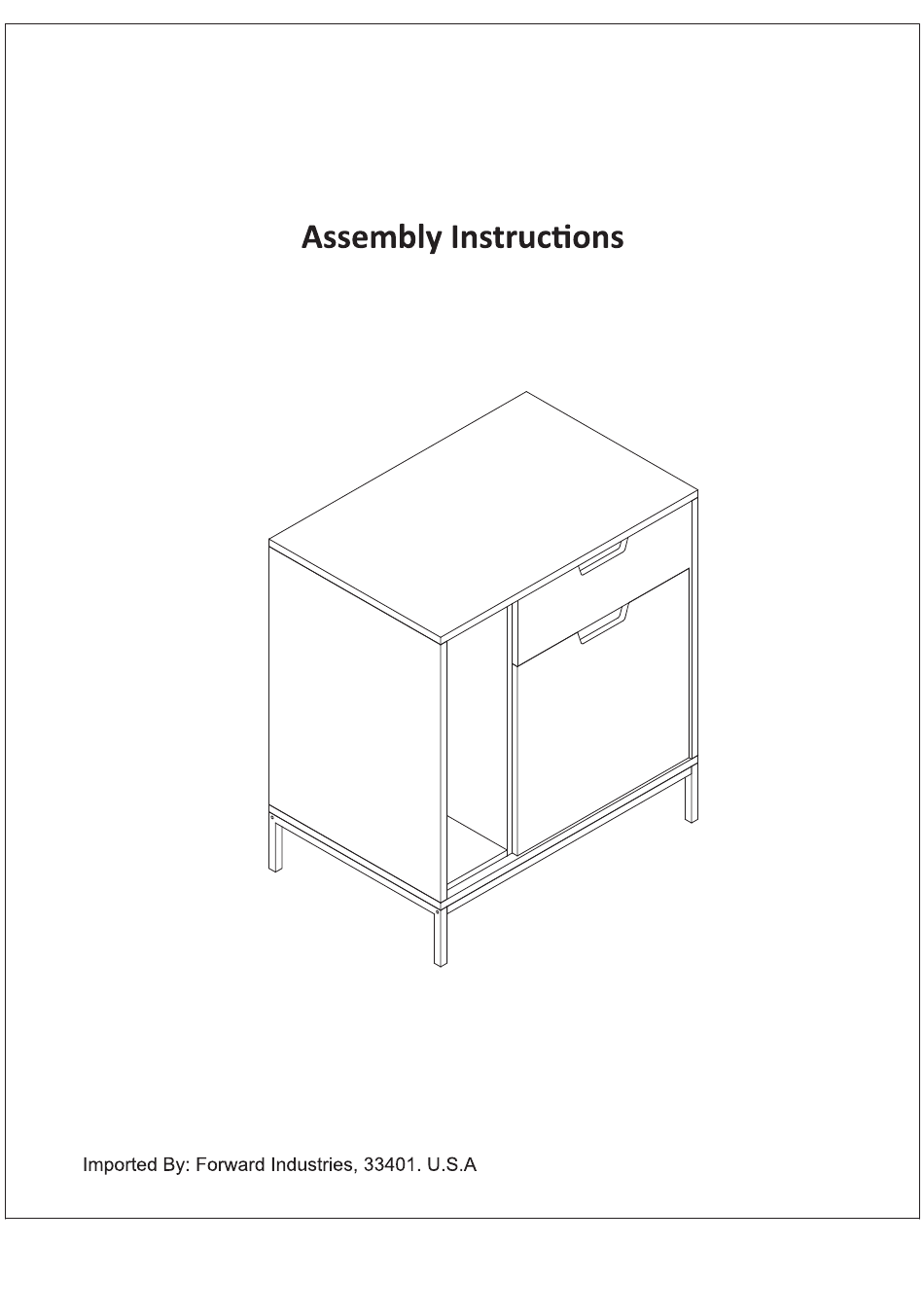

- Page 1 SIDEBOARD Product Refs-HM-SB001-001 Issue 1 -14/12/20...
- Page 2 1. The maximum weight that can be placed on this product is 110lbs. 2. This product must not be used as a seat. 3. Check carefully to ensure correct and complete assembly before using. 4. Don’t allow children to play near the product as their behaviour is unpredictable. The manufacturer is not responsible for loss, injury, or damage due to improper actions or use.
- Page 3 Side Panel (Right) Qty 1 Divider Qty 1 (20.62×15.74×0.59") (20.62×14.4×0.59") Storage Cabinet Side Panel Qty 2 Storage Cabinet Base/Top Qty 2 (20.62×14.4×0.47") (5.7×14.4×0.47") Top Panel Qty 1 Side Panel (Left) Qty 1 (23.62×15.74×0.59") (20.62×15.74×0.59")
- Page 4 Back Panel Qty 2 Base Panel Qty 1 (22.44×10.43×0.11") (23.62×15.74×0.59") Base Frame Legs Qty 2 Base Frame Stretcher Qty 2 (15.55×3.93×0.78") (21.85×0.78×0.78") Drawer Base Qty 1 Drawer Front Qty 1 (14.17×11.73×0.11") (15.55×5.51×0.59")
- Page 5 Drawer Side (Left) Qty 1 Drawer Side (Right) Qty 1 (11.81 3.93 0.47") (11.81 3.93 0.47") Drawer Back Panel Qty 1 Sealing Strip Qty 1 (13.77 3.93 0.47") (22.16 0.39") Door Qty 1 (15.55 14.76 0.59")
- Page 6 Large Cam Nut Qty 6 Large Wooden Dowel Qty 20 Cam Dowel Qty 10 × (M15 0.47”) × × 1.18") 1.37") Small Cam Nut Qty 4 Small Wooden Dowel Qty 4 Drawer Runner Qty 2 × (M15 0.37”) × (11.81") 0.59") Screw Qty 2 Screw Qty 4...
- Page 7 561-465-0030, Option 0. Address: Forward Industries, 105 South Narcissus Avenue Suite 412, West Palm Beach, FL 33401...
- Page 8 STEP 1 Assemble drawer runners to right side panel using fixings Groove at back Drawer Runner Qty 1 Screw Qty 2 STEP 2 Assemble drawer runners to divider using fixings Front Back Note the hole positions marked on the drawing to identify front and Drawer Runner Qty 1 Screw Qty 2...
- Page 9 STEP 3 Screw cam dowels into the underside of top panel and the inside of drawer fronts Fit wood dowels as shown. Underside Large Wooden Dowel Qty 6 Cam Dowel Qty 10 Small Wooden Dowel Qty 2 STEP 4 Two people required With help, assemble Holes on top storage cabinet panels...
- Page 10 STEP 5 Grooves Locate right and left side panels ,plus divider onto the underside of top Secure using large cam nuts Back Front Groove Shown upside down Large Cam Nut Qty 6 STEP 6 Two people required With help, carefully slide storage cabinet into position and ensure wood dowels are correctly aligned to...
- Page 11 STEP 7 Slide back panels into the grooves at the back of the unit. Ensure sealing strip is located in between the back panels. Fit wood dowels as shown. Back Front Small Wooden Dowel Qty 2 Large Wooden Dowel Qty 6 Shown upside down STEP 8 Locate base panel...
- Page 12 STEP 9 Fit hinges to door using screws Hinge Qty 2 Screw Qty 4 STEP 10 Assemble door using screw Screw Qty 8...
- Page 13 STEP 11 Assemble metal base frame legs stretchers together using screws Screw Qty 4 Allen Key Qty 1 STEP 12 Locate base frame into position. Secure using screws Front Shown upside down Screw Qty 8...
- Page 14 STEP 13 Assemble drawer back panel and side panels using screws Align grooves Slide drawer base into grooves. Assemble drawer front . Secure using small cam nuts Wood Screw Qty 4 Small Cam Nut Qty 4...
- Page 15 STEP 14 Two people required With help,stand the unit upright. Engage the drawer runners. STEP 15 Secure drawer body to runners using screws Screw Qty 2...
- Page 16 STEP 16 Assembly is complete.
