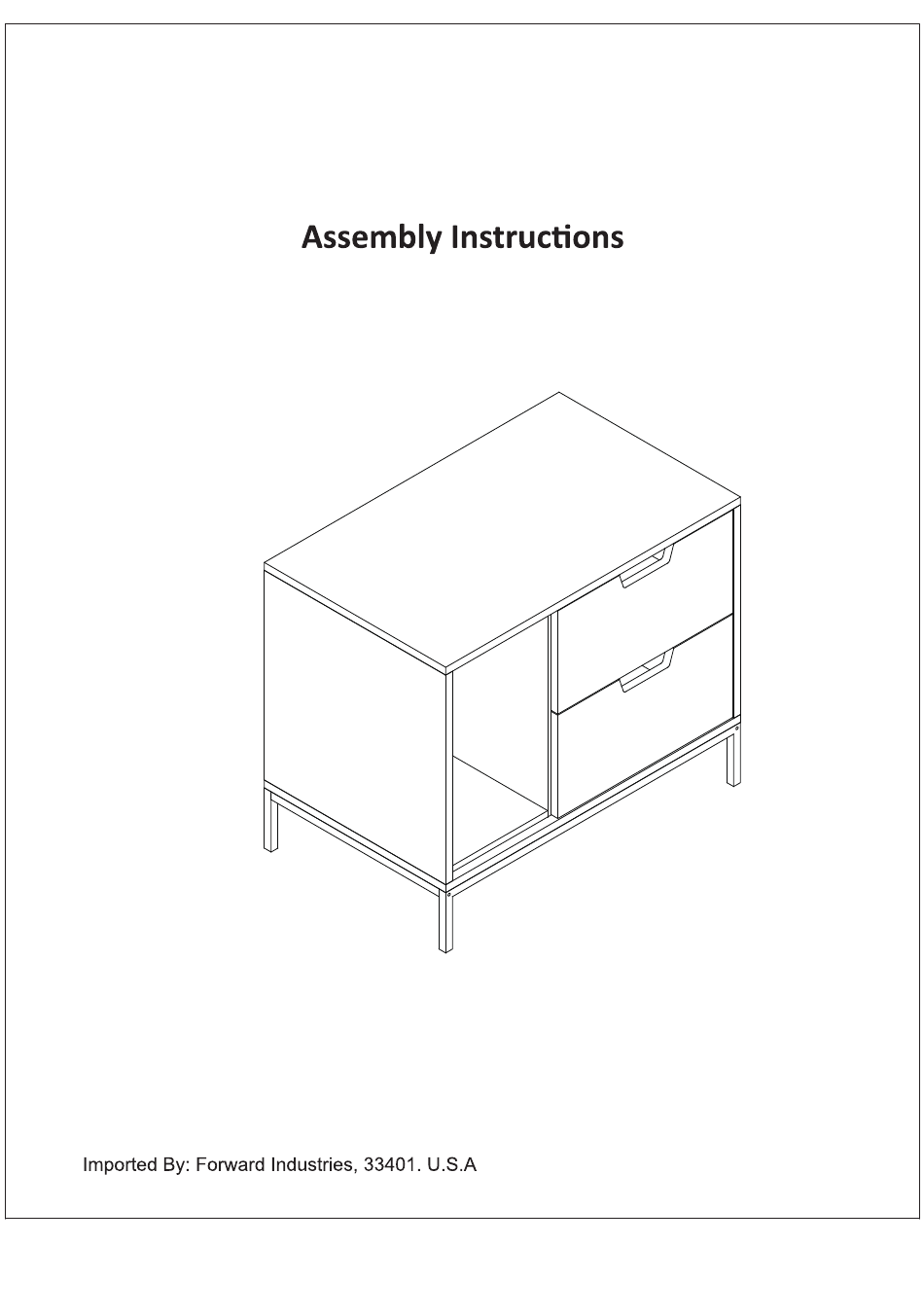

- Page 1 Sideboard Product Refs-HM-SB002-001 Issue 1 -11/11/20...
- Page 2 1. The maximum weight that can be placed on this product is 110lbs. 2. This product must not be used as a seat. 3. Check carefully to ensure correct and complete assembly before using. 4. Don’t allow children to play near the product as their behaviour is unpredictable. The manufacturer is not responsible for loss, injury, or damage due to improper actions or use.
- Page 3 Side Panel (Right) Qty 1 Divider Qty 1 (15.75×15.75×0.59") (15.75×14.41×0.59") Storage Cabinet Side Panel Qty 2 Storage Cabinet Base/Top Qty 2 (15.75×14.41×0.47") (5.71×14.41×0.47") Top Panel Qty 1 Side Panel (Left) Qty 1 (23.62×15.75×0.59") (15.75×15.75×0.59")
- Page 4 Back Panel Qty 2 Base Panel Qty 1 (8.26×22.83×0.12") (23.62×15.75×0.59") Base Frame Legs Qty 2 Base Frame Stretcher Qty 2 (15.55×3.93×0.78") (21.85×0.78×0.78") Drawer Base Qty 2 Drawer Front Qty 2 (14.17×11.65×0.12") (15.55×7.79×0.59")
- Page 5 Drawer Side (Left) Qty 2 Drawer Side (Right) Qty 2 (11.81×4.72×0.47") (11.81×4.72×0.47") Drawer Back Panel Qty 2 Sealing Strip Qty 1 (13.77×4.72×0.47") (22.16 0.39")
- Page 6 Large Wooden Dowel Qty 20 Cam Dowel Qty 14 Large Cam Nut Qty 6 × × × (M15 0.47”) 1.18") 1.37") Small Cam Nut Qty 8 Small Wooden Dowel Qty 4 Drawer Runner Qty 4 × (M15 0.37”) × (11.81") 0.59") Screw Qty 6 Screw Qty 8...
- Page 7 561-465-0030, Option 0. Address: Forward Industries, 105 South Narcissus Avenue Suite 412, West Palm Beach, FL 33401...
- Page 8 STEP 1 Assemble drawer runners to right side panel using fixings Groove at back Drawer Runner Qty 2 Screw Qty 4 STEP 2 Assemble drawer runners to divider using fixings Front Back Note the hole positions Drawer Runner Qty 2 marked on the drawing to identify front and back of Divider Ref...
- Page 9 STEP 3 Screw cam dowels into the underside of top panel and the inside of drawer fronts Fit wood dowels as shown. Underside Small Wooden Dowel Qty 2 Large Wooden Dowel Qty 6 Cam Dowel Qty 14 STEP 4 Two people required With help, Holes on top assemble storage cabinet...
- Page 10 STEP 5 Grooves Locate right and left side panels ,plus divider onto the underside of top Secure using large cam nuts Back Front Groove Shown upside down Large Cam Nut Qty 6 STEP 6 Two people required With help, carefully slide storage cabinet into position and ensure wood dowels are correctly aligned to...
- Page 11 STEP 7 Slide back panels into the grooves at the back of the unit. Ensure sealing strip is located in between the back panels. Fit wood dowels as shown. Back Large Wooden Dowel Qty 6 Front Shown upside down Small Wooden Dowel Qty 2 STEP 8 Locate base panel into position.
- Page 12 STEP 9 Assemble metal base frame legs stretchers together using screws Allen Screw Qty 4 Allen Key Qty 1 STEP 10 Locate base frame into position. Secure using screws Front Shown upside down Screw Qty 8...
- Page 13 STEP 11 Assemble drawer back panel and side panels using screws Align grooves Slide drawer base into grooves. Assemble drawer front . Secure using small cam nuts Repeat for both drawers. Wood Screw Qty 8 Small Cam Nut Qty 8...
- Page 14 STEP 12 Two people required With help,stand the unit upright. Engage the drawer runners. Repeat for both drawers. STEP 13 Secure drawer body to runners using screws Repeat for both drawers. Screw Qty 4...
- Page 15 STEP 14 Assemble is complete.
