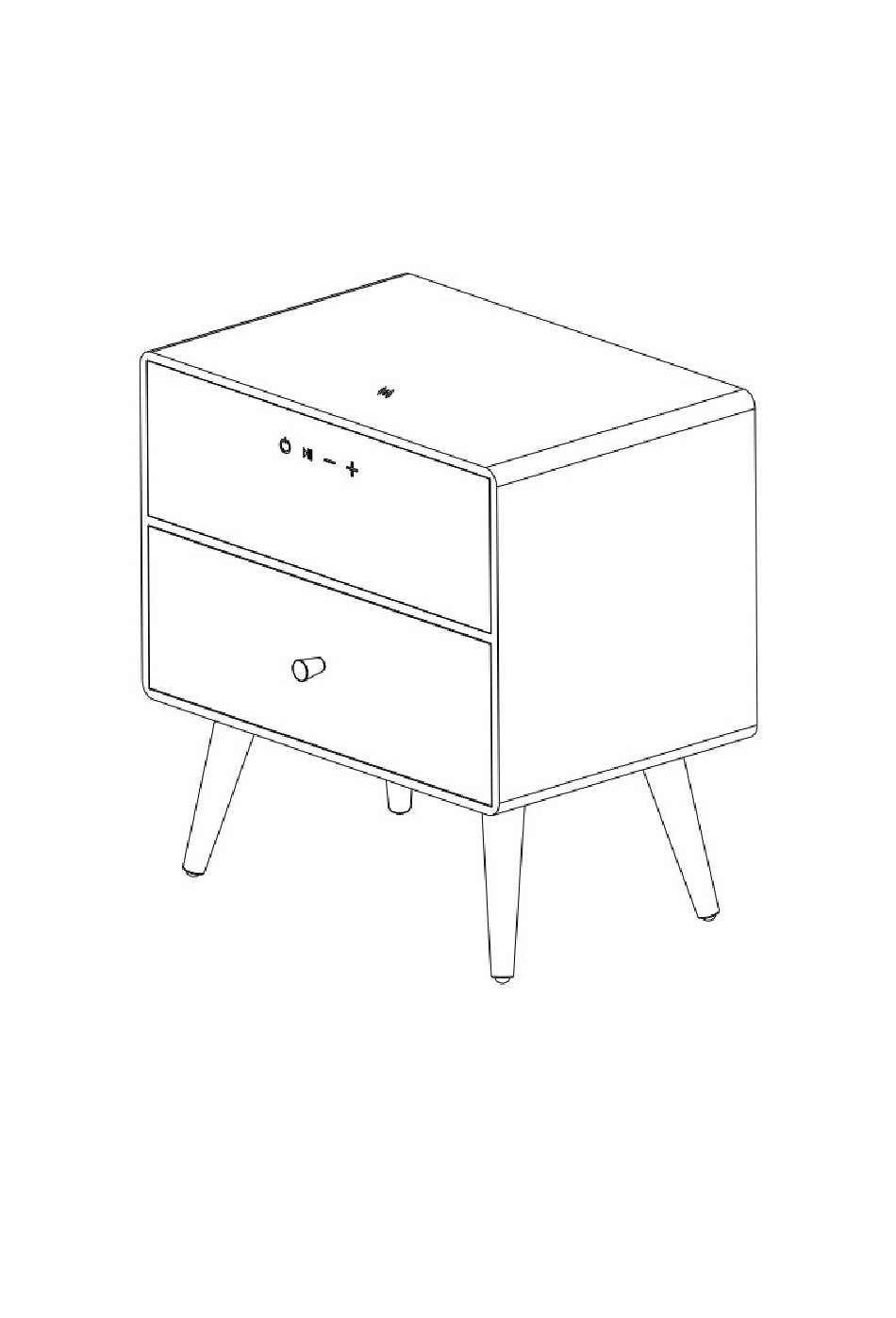

Smart Side Table
PRODUCT REFS-KBBM1115 / KBBM1116/KBBM1117
Assembly Instruction
Thank you for purchasing the Smart Side Table. In order to make the best use of this product and to use it safely, please read the manual
carefully before use and keep it for future reference.
Imported By: Forward Industries, 33401. U.S.A
Issue 1-06/07/2020
Advertisement
Table of Contents
Related Manuals for Forward Industries Smart Side Table REFS-KBBM1115
Summary of Contents for Forward Industries Smart Side Table REFS-KBBM1115
- Page 1 Thank you for purchasing the Smart Side Table. In order to make the best use of this product and to use it safely, please read the manual carefully before use and keep it for future reference. Imported By: Forward Industries, 33401. U.S.A Issue 1-06/07/2020...
-
Page 2: Specifications
Safety and Care Advice The maximum weight that can be placed on this product is 33 LBS. This product must not be used as a seat. Always use the original AC power adapter and power cable, otherwise it may cause slow wireless charging, poor bluetooth speaker function. -
Page 3: Main Components
Main Components Legs Qty 4 ( 6.7 inch ) Main Body Qty 1 (19*12.6*13 inch) Legs Qty 4 ( 10 inch ) Note : two size legs options supplied Accessories EVA pad Spare Parts（If required） Power Adapter Qty 1 (59 inch ) Qty 4 (1.18 inch) ②... - Page 4 Assembly Steps Step 1 Place main body upside down on to a clean fat surface. Note: Ensure the surface is suitably protected to prevent any scratches or damage to the main body Screw legs into position on the underside of main body Note: Two different legs length options...
- Page 5 Step 2 With help, carefully turn the side table over into the standing position. Step 3 Plug power adapter into the ‘DC IN’ port on the back of main body Plug the adapter into an electric socket for mains power. ④...
-
Page 6: Controls & Functions
Controls / Functions Front Back POWER / TWS PLAY / PAUSE / PHONE VOLUME - VOLUME + BLUETOOTH MODE LED INDICATOR TWS MODE LED INDICATOR DC IN WIRELESS CHARGING SYMBOL ⑤... -
Page 7: Volume Control
Power On / Off Connect the power adapter with the DC IN port (please make sure you use the original adapter supplied). You will hear "Power on" from the speaker. The speaker will automatically enter Bluetooth mode as default, and you will hear "Bluetooth, waiting for connection". Press and hold the [ ] button to turn the unit off. -
Page 8: Automatic Power Off
AC adapter is connected, to a mains power source that is switched on. Some phone cases may inhibit the wireless charging function. It may be necessary to remove the phone cases to improve wireless charging efficiency. TWS Function ( LED indicator: the right LED light ) If you have two side tables, you can listen to music in TWS mode via Bluetooth. - Page 9 If you have questions regarding the operation of your koble purchase, or in the unlikely event you need to return the unit because it is faulty or is no longer wanted, please contact our product returns department at customerservice@forwardindustries.com,or service number: 561-465-0030, Option 0. Address: Forward Industries, 105. South Narcissus Avenue Suite 412, West Palm Beach, FL 33401 ⑧...
