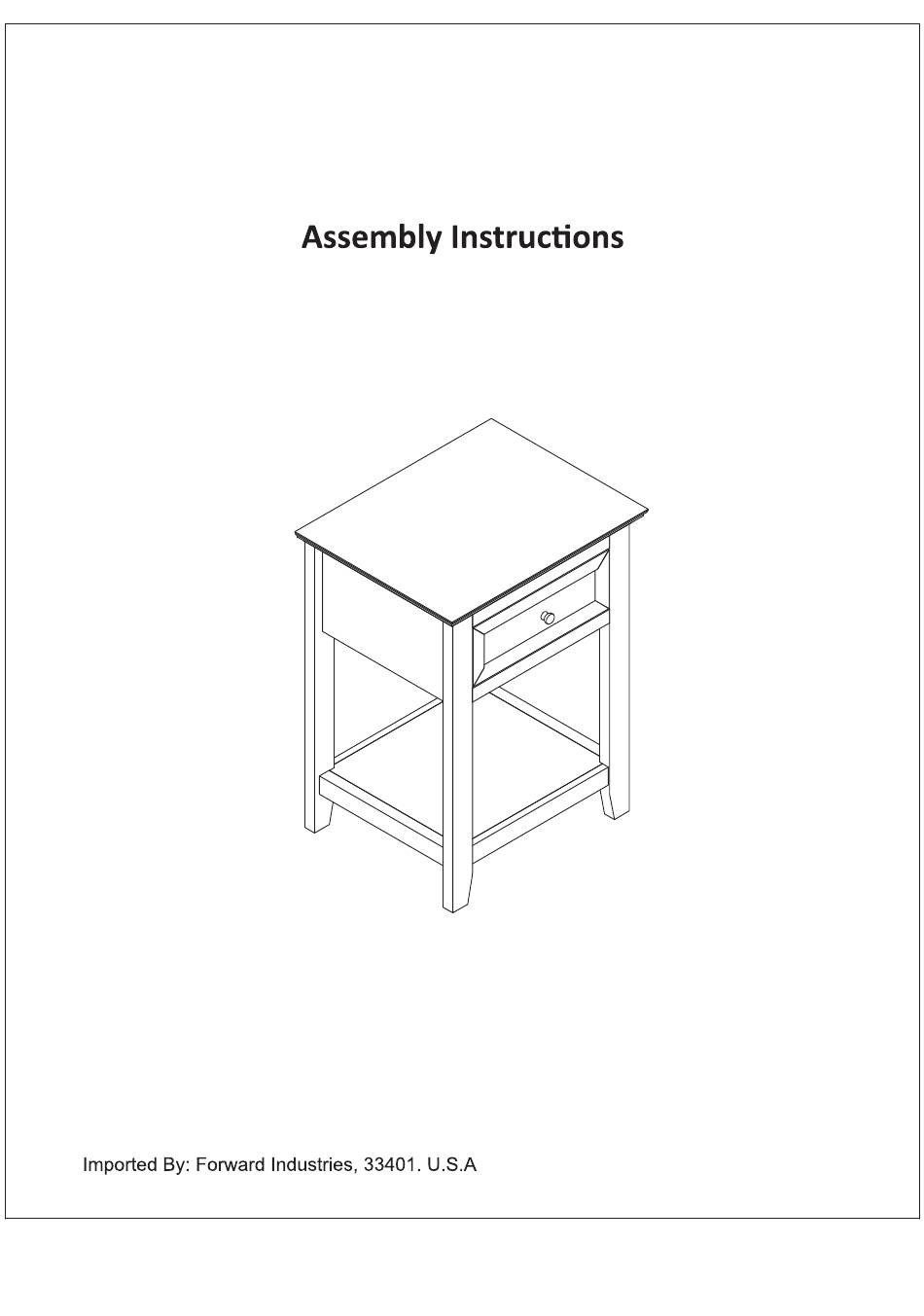

- Page 1 NIGHTSTAND Product Refs-HM-ST011-001 Issue 1 -14/12/20...
- Page 2 1. The maximum weight that can be placed on this product is 110lbs. 2. This product must not be used as a seat. 3. Check carefully to ensure correct and complete assembly before using. 4. Don’t allow children to play near the product as their behaviour is unpredictable. The manufacturer is not responsible for loss, injury, or damage due to improper actions or use.
- Page 3 Top Panel Qty 1 Side Panel (Left) Qty 1 (19.76×15.82×1.10") (14.88×25×1.96") Side Panel (Right) Qty 1 Base Panel Qty 1 (14.88×25×1.96") (14.76×13.03×0.59") Top Stretcher(Front) Qty 2 Back/Bottom Stretcher Qty 3 (13.77×1.18×0.59") (13.77×1.57×0.59")
- Page 4 Back Panel Qty 1 Drawer Front Qty 1 (14.84×7.48×0.11") (13.66×5.11×0.59") Drawer Side (Left) Qty 1 Drawer Side (Right) Qty 1 (13.18×3.93×0.47") (13.18×3.93×0.47") Drawer Back Panel Qty 1 Drawer Base Qty 1 (12.4×3.93×0.47") (13.03×12.71×0.11")
- Page 5 Large Cam Nut Qty 10 Wooden Dowel Qty 22 Cam Dowel Qty 18 × (M15 0.47”) × × 1.18") 1.37") Screw Qty 4 Small Cam Nut Qty 8 Drawer Runner Qty 1 Pair × × 0.47”) (M15 0.37”) (11.81") Screw Qty 10 Wood Screw Qty 4 Knob Qty 1 ×...
- Page 6 STEP 1 Fit cam dowels side panels and drawer front Fit wooden dowels into side panels as shown. Cam Dowel Qty 14 Wooden Dowel Qty 18 STEP 2 Fit cam dowels top panels Fit wooden dowels into top panel shown. Cam Dowel Qty 4 Wooden Dowel Qty 4...
- Page 7 STEP 3 Assemble drawer runners to side F F F F F F F F F F F F F F E panels using screws F F F F F F F F F F F F F F F Drawer Runner Qty 1 Paie Screw Qty 4...
- Page 8 STEP 4 Locate large cam nuts into back/bottom stretchers Locate stretchers the positions shown and secure by tighening cam nuts. Locate top stretchers in the positions shown. Large Cam Nut Qty 3 STEP 5 Locate large cam nuts into base panel Locate base panel into position and secure by tightening cam nuts.
- Page 9 STEP 6 Repeat step 5 to assemble side panel Large Cam Nut Qty 5 STEP 7 With help, stand the unit upright. Locate large cam nuts into side panels Carefully align top panels and secure by tightening the cam nuts. Small Cam Nut Qty 4...
- Page 10 STEP 8 Assemble back panel using screws Screw Qty 10...
- Page 11 STEP 9 Assemble drawer back panel and side panels using screws Align grooves Slide drawer base into grooves. Assemble drawer front . Secure using small cam nuts Fit drawer knob using screw Wood Screw Qty 4 Small Cam Nut Qty 4 Knob Qty 1 Screw Qty 1...
- Page 12 STEP 10 With help,stand the unit upright. Engage the drawer runners. STEP 11 Secure drawer body to runners using screws Screw Qty 2...
- Page 13 STEP 12...
