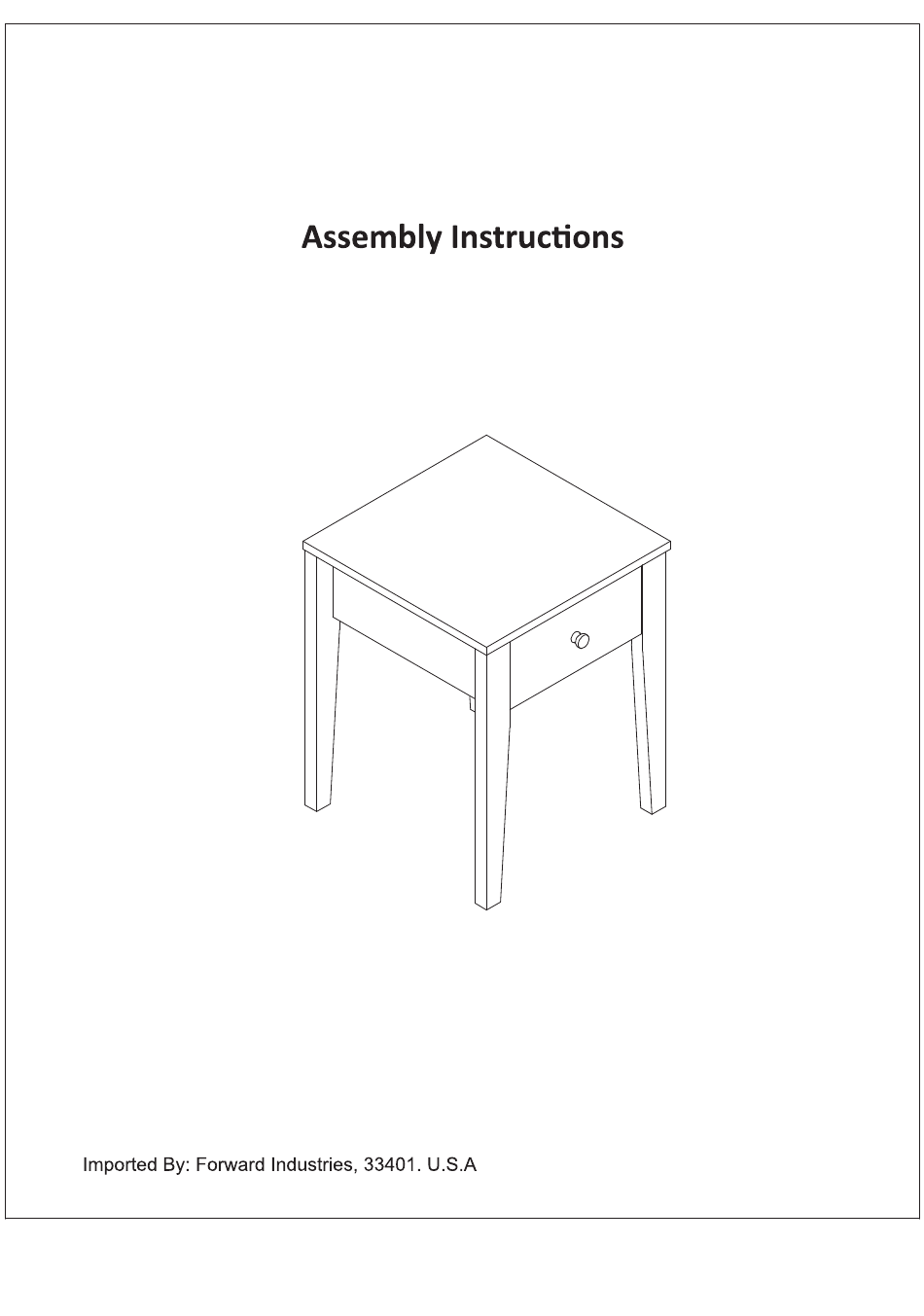

- Page 1 END TABLE Product Refs-HM-ST005-001 Issue 1 -14/12/20...
- Page 2 1. The maximum weight that can be placed on this product is 110lbs. 2. This product must not be used as a seat. 3. Check carefully to ensure correct and complete assembly before using. 4. Don’t allow children to play near the product as their behaviour is unpredictable. The manufacturer is not responsible for loss, injury, or damage due to improper actions or use.
- Page 3 Top Panel Qty 1 Side Panel (Left) Qty 1 (15.74×15.74×0.59") (15.55×19.09×1.96") Side Panel (Right) Qty 1 Stretcher Qty 2 (15.55×19.09×1.96") (11.41×2.16×0.59") Back Panel Qty 1 Drawer Front Qty 1 (11.92×5.51×0.11") (11.29×5.31×0.59")
- Page 4 Drawer Side (Left) Qty 1 Drawer Side (Right) Qty 1 (13.38×4.13×0.47") (13.38×4.13×0.47") Drawer Back Panel Qty 1 Drawer Base Qty 1 (10.15×4.13×0.47") (13.22×10.47×0.11")
- Page 5 Large Cam Nut Qty 8 Wooden Dowel Qty 8 Cam Dowel Qty 12 × (M15 0.47”) × × 1.18") 1.37") Small Cam Nut Qty 4 Drawer Runner Qty 2 Screw Qty 4 × × (M15 0.37”) (11.81") 0.39”) Screw Qty 8 Wooder Screw Qty 4 Screw Qty 2 ×...
- Page 6 STEP 1 Fit cam dowels side panels and drawer front Fit wooden dowels into side panels as shown. Cam Dowel Qty 8 Wooden Dowel Qty 4 STEP 2 Fit cam dowels top panel Fit wooden dowels into top panel shown. Cam Dowel Qty 4 Wooden Dowel Qty 4...
- Page 7 STEP 3 Assemble drawer runners to side F F F F F F F F F F F F F F E panels using screws F F F F F F F F F F F F F F F Drawer Runner Qty 2 Screw Qty 4...
- Page 8 STEP 4 Fit large cam nuts F F F F F F F F F F F F F F C into stretchers shown. Assemble stretchers to side panels Secure by tightening the cam nuts. Large Cam Nut Qty 4 STEP 5 With help , stand the unit upright.
- Page 9 STEP 6 Assemble back panel using screws Screw Qty 8...
- Page 10 STEP 7 Assemble drawer back panel and side panels using screws Slide drawer base into grooves. Assemble drawer front . Secure using small cam nuts Fit drawer Knob using screw Wood Screw Qty 4 Small Cam Nut Qty 4 Knob Qty 1 Screw Qty 1...
- Page 11 STEP 8 with help,stand the unit upright. Engage the drawer runners. STEP 9 Secure drawer body to runners using screws Screw Qty 2...
- Page 12 STEP 10...
