- Page 1 Instruction Manual SEE378 8MP Anti-Vandal Dome 2.8-12mm Motorised Lens © 2022 System Q Ltd ZipDVR.com...
-
Page 2: Table Of Contents
Table of Contents Part 1 Introduction 1 SEE378 ..........................1 Part 2 Tools & Handy Extras Part 3 Connections & Dipswitches Part 4 Dipswitch 4-In-1 Technology Part 5 Mounting 1 Anti-Vandal Dome ......................3 Part 6 Motorised Lens Part 7 OSD Menu 1 8MP OSD Menu Motorised .................... -
Page 3: Part 1 Introduction

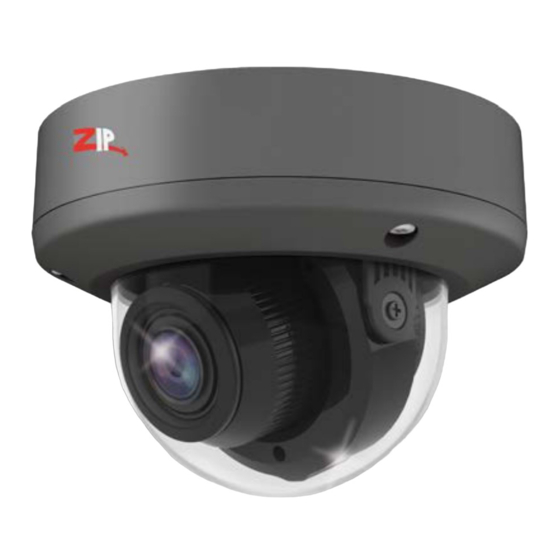

Designed to be used with a 4K DVR such as the new Zip Xtreme. With 4K resolution, and a true day night filter make it great choice for the professional installer. -
Page 4: Part 3 Connections & Dipswitches
xSEE378 Connections & Dipswitches The camera has a 2.1mm socket which requires 12V DC, use a regulated power supply rated above the current draw of the camera. The camera is polarity sensitive so connections must be correctly made. The camera has a standard BNC connector for the 4-in-1 video output, the output can be changed to AHD, CVI or CVBS if required. -
Page 5: Part 5 Mounting
Index Mounting 5.1 Anti-Vandal Dome A template is provided in the box for marking the hole positions for the fixing screws. © 2022 System Q Ltd ZipDVR.com... -
Page 6: Part 6 Motorised Lens
xSEE378 Motorised Lens To access the Motorised Lens via coaxitron:- 1. Click on the image in Live view 2. Click on the PTZ button at the bottom of the screen 3. Use Zoom + and - to zoom in and out, the camera should automatically focus when Zoom +/- is released 04/04/2022 ZipDVR.com... -
Page 7: Part 7 Osd Menu
Index OSD Menu Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set as default. To access the Cameras Menu via coaxitron:- 1. Click on the image in Live view 2. Click on the PTZ button at the bottom of the screen 3. - Page 8 xSEE378 AF MODE SEMI / AUTO / MANUAL ZOOM - / + FOCUS - / + BOOT MODE SAVE POS / WIDE END / TELE END / TDN AD OPEN / CLOSE FOCUS TRIGGER SELECT (IRIS +) LENS INIT SELECT (IRIS +) RETURN MODE PRO / GREY WORLD...
- Page 9 Index VIDEO SETTING NO ADJUSTMENT SEE 4-IN-1 SWITCH STANDARD 8MP 15 / 8MP 12.5 REBOOT & APPLY RETURN LANGUAGE ENGLISH / SIMPLIFIED CHINESE / TRADITIONAL CHINESE / RUSSIAN / SPANISH / FRENCH / POLISH / ITALIAN / PORTUGUESE OFF / ON FUNC PRIVACY MODE...
-
Page 10: Key Menu Settings
xSEE378 7.2 Key Menu Settings Exposure Mode - AUTO / GLOBE / GLOBAL sets the required shutter speed for the current light level. The shutter speed will automatically detect the required length of time to keep the digital sensor exposed to light. FLK option sets the shutter speed to stop synchronisation with lighting so that pulsing effect is minimised. -
Page 11: Part 8 Troubleshooting
B. If set to CVBS, then this is a low quality video output for legacy systems (analogue - CVBS), when using a 2 MegaPixel DVR or above then use another video format, like HD-TVI. C. Reset the camera menu via Zip Coaxitron – OSD Menu D. -
Page 12: Part 9 General Maintenance
xSEE378 C. Use thicker gauge copper cabling to reduce the voltage drop to the camera, using thicker cable will reduce the resistance between the camera and the power supply and therefore reduce the voltage dropped along the cable. D. Ensure that the BNC – BNC lead that is connected between the camera and DVR has no shorts between the ground and the centre core (positive) or open circuits along the centre core (positive) or open circuits along the ground. -
Page 13: Part 10 Specification
Index Specification 10.1 SEE378 Resolution 4K (8MP) Lens Type 2.8-12mm Motorised Lens Image Output 1 Volt Peak-Peak 75 ohm Min.Illumination 0 Lux IR On Day/Night Mechanical (True Day-Night) IR Range Input Voltage 12V DC Current Consumption 500mA (IR On) IP Rating... -
Page 14: Part 11 Conditions
WEE/CG0783SS collection point as defined by your local council. 11.3 Copyright © Copyright 2022 Zip is a registered trademark of System Q Ltd, Chesterfield. Derbyshire. S40 2WB 04/04/2022 ZipDVR.com... -
