ZIP TVI Camera Range Table of Contents Part 1 Introduction 1 SEE877 ..........................1 Part 2 Tools & Handy Extras Part 3 Connections Part 4 4-In-1 Technology Part 5 Mounting 1 Eyeball ........................... 3 Part 6 OSD Menu 1 8MP OSD Menu ....................... 4 2 Key Menu Settings ...................... -
Page 3: Part 1 Introduction

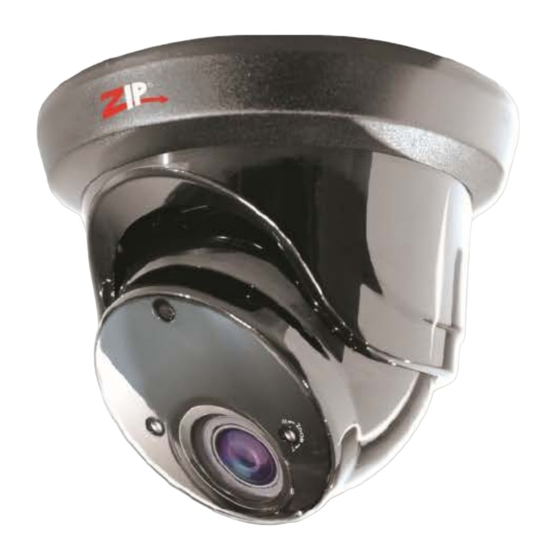

Introduction Introduction 1.1 SEE877 Stand out from your competitors with this different take on the classic eyeball that’s extra flexible thanks to a choice of bracketry available for it. Choose from a swan neck wall mount or a variety of ceiling mounts or simply add an extra deep base for extra cables. -
Page 4: Part 3 Connections
ZIP TVI Camera Range Connections The camera is provided with a fly lead with a 2.1mm DC socket and standard BNC connector It is recommended to use a power supply that is rated higher than the current consumption of the... -
Page 5: Part 4 4-In-1 Technology
4-In-1 Technology 4-In-1 Technology Selectable HD-TVI, HD-CVI, AHD and CVBS (Analogue) Output. The default is set to HD- TVI however the output can be changed to AHD, CVI or CVBS if required. This output can be changed either with the dip switches on the fly-lead of the camera. Please note the “Output Mode”... -
Page 6: Part 6 Osd Menu
ZIP TVI Camera Range OSD Menu Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set as default. To access the Cameras Menu via coaxitron:- 1. Click on the image in Live view 2. Click on the PTZ button at the bottom of the screen 3. - Page 7 OSD Menu N – D (AGC) 0 ~ 215 (Default 25) N – D (DELAY) 0 ~ 15 (Default 2) RETURN / SAVE & END COLOR (Permanently in colour) IR SMART / OFF LEVEL 0 ~ 15 (Default 0) AREA POSITION &...
-
Page 8: Key Menu Settings
ZIP TVI Camera Range 6.2 Key Menu Settings Exposure Mode - AUTO sets the required shutter speed for the current light level. The shutter speed will automatically detect the required length of time to keep the digital sensor exposed to light. -
Page 9: Part 7 Troubleshooting
B. If set to CVBS, then this is a low quality video output for legacy systems (Analogue), when using a 2 MegaPixel DVR or above then use another video format, like HD-TVI. C. Reset the camera menu via Zip Coaxitron – OSD Menu D. -
Page 10: Part 8 General Maintenance
ZIP TVI Camera Range General Maintenance · Ensure that nothing is obscuring the field of view, position the camera to ensure the Lens can see clearly. · Routinely clean the camera to prevent dust build up as this can effect the performance of the camera. -
Page 11: Part 10 Conditions
WEE/CG0783SS collection point as defined by your local council. 10.3 Copyright © Copyright 2021 Zip is a registered trademark of System Q Ltd, Chesterfield. Derbyshire. S40 2WB © 2021 System Q Ltd ZipNVR.com... -
