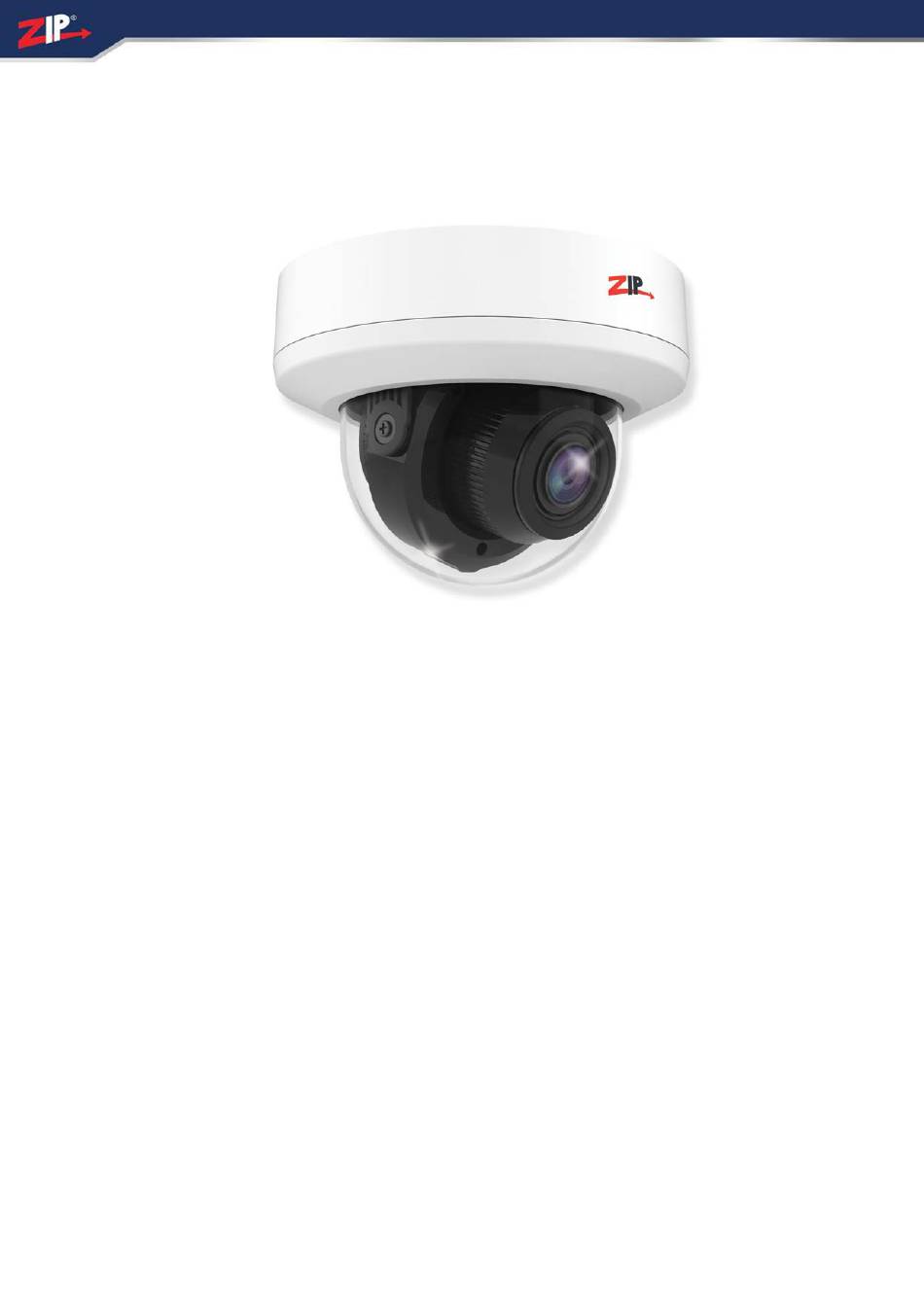

- Page 1 Instruction Manual SEE502W 2MP Internal Dome 2.8-12mm 4pc IR © 2022 System Q Ltd ZipDVR.com...
-
Page 2: Table Of Contents
3 Image is Black & White ....................6 4 NCD / No Image Displayed on Recorder ................. 6 Part 7 General Maintenance Part 8 Specification 1 SEE502W ........................8 Part 9 Conditions 1 General Company Disclaimer ..................9 2 WEEE Declaration ......................9 3 Copyright ........................ -
Page 3: Part 1 Introduction
Index Introduction 1.1 SEE502 Specifically designed for retail and commercial use. This attractive dome is feature packed for optimum results regardless of the lighting conditions. A mechanical IR filter gives accurate colour reproduction during daylight or in brightly lit environments such as shops whilst the built-in IR LEDs offer extra illumination when darkness or ambient light levels fall. -
Page 4: Part 3 Connections
xSEE502W Connections The camera has a 2.1mm socket which requires 12V DC, use a regulated power supply rated above the current draw of the camera. The camera is polarity sensitive so connections must be correctly made. The camera has a standard BNC connector for video output, the output can be changed to AHD, CVI or CVBS if required in the menu 4-In-1 Technology Selectable HD-TVI, HD-CVI, AHD and CVBS (Analogue) Output. -
Page 5: Part 5 Osd Menu
Index OSD Menu Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set as default. To access the Cameras Menu via coaxitron:- 1. Click on the image in Live view 2. Click on the PTZ button at the bottom of the screen 3. -
Page 6: 2Mp Osd Menu
xSEE502W 5.1 2MP OSD Menu Format 2M25 / 2M30 / PAL Video Mode TVI / AHD / CVI / CVBS Language English / Spanish / French / Chinese Exposure Exposure Mode Global / BLC / HLC / DWDR High / Middle / Low Back Exit Save –... -
Page 7: Key Menu Settings
Index 5.2 Key Menu Settings Exposure Mode - AUTO / GLOBE / GLOBAL sets the required shutter speed for the current light level. The shutter speed will automatically detect the required length of time to keep the digital sensor exposed to light. FLK option sets the shutter speed to stop synchronisation with lighting so that pulsing effect is minimised. -
Page 8: Part 6 Troubleshooting
B. If set to CVBS, then this is a low quality video output for legacy systems (analogue - CVBS), when using a 2 MegaPixel DVR or above then use another video format, like HD-TVI. C. Reset the camera menu via Zip Coaxitron – OSD Menu D. -
Page 9: Part 7 General Maintenance
Index C. Use thicker gauge copper cabling to reduce the voltage drop to the camera, using thicker cable will reduce the resistance between the camera and the power supply and therefore reduce the voltage dropped along the cable. D. Ensure that the BNC – BNC lead that is connected between the camera and DVR has no shorts between the ground and the centre core (positive) or open circuits along the centre core (positive) or open circuits along the ground. -
Page 10: Part 8 Specification
Specification 8.1 SEE502W Resolution Lens Type 2.8-12mm Varifocal Lens Image Output 1 Volt Peak-Peak 75 ohm Min.Illumination 0 Lux IR On Day/Night Mechanical (True Day-Night) IR Range Input Voltage 12V DC Current Consumption 300mA (IR On) Video Connection BNC Socket Power Connection 2.1mm DC Socket... -
Page 11: Part 9 Conditions
WEE/CG0783SS collection point as defined by your local council. 9.3 Copyright © Copyright 2022 Zip is a registered trademark of System Q Ltd, Chesterfield. Derbyshire. S40 2WB © 2022 System Q Ltd ZipDVR.com... -
Page 13: Index
