Summary of Contents for Zip SEE862

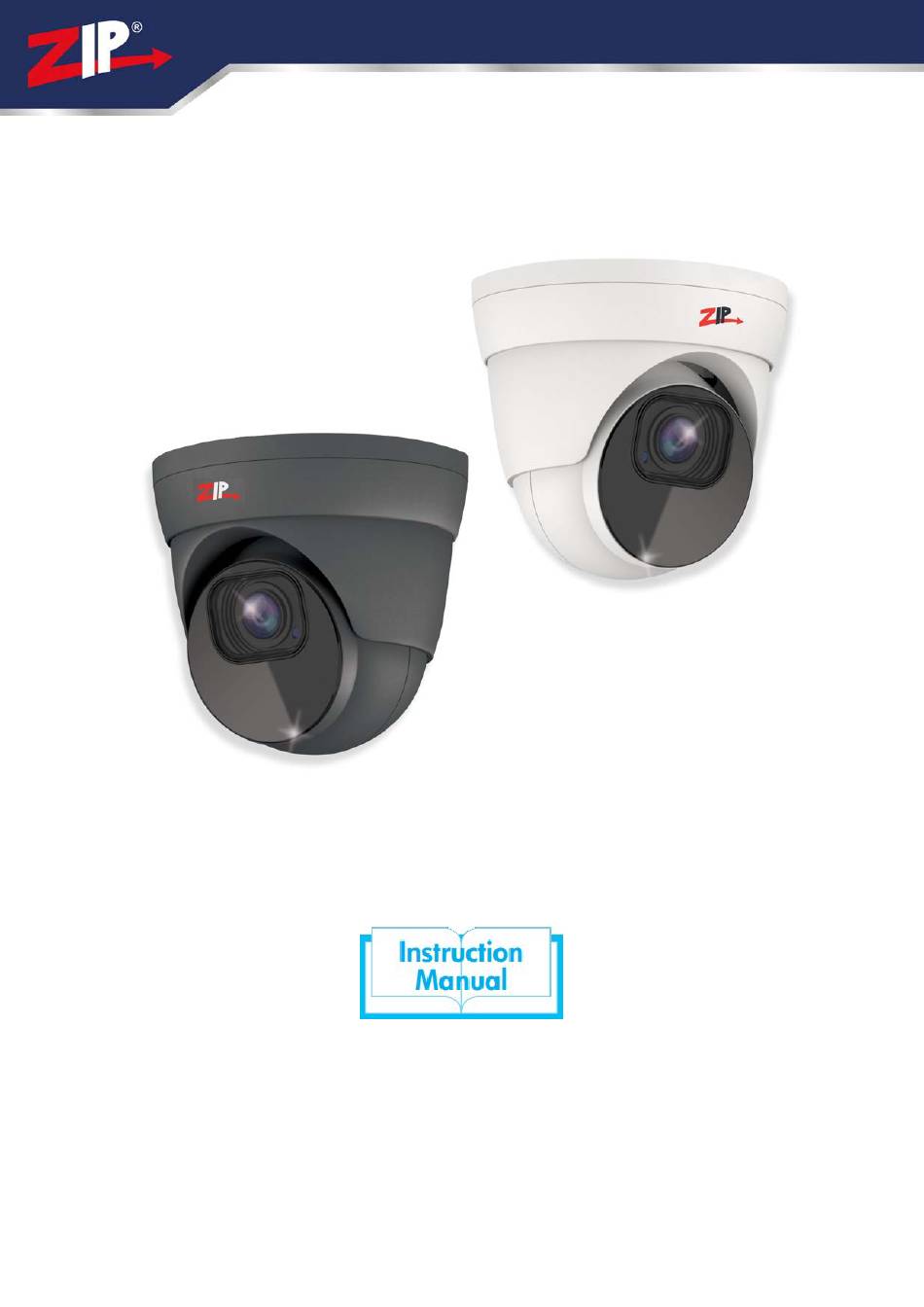

- Page 1 2MP Eyeball 2.8-12mm Varifocal Lens Camera SEE862 © 2021 System Q Ltd ZipDVR.com...
-
Page 2: Table Of Contents
Table of Contents Part 1 Introduction 1 SEE862 ..........................1 Part 2 Tools & Handy Extras Part 3 Connections Part 4 4-In-1 Technology Part 5 Mounting 1 Eyeball ........................... 3 Part 6 OSD Menu 1 2MP OSD Menu Standard ....................4 Part 7 Troubleshooting 1 Camera Rebooting / Turning Off .................. -
Page 3: Part 1 Introduction
Introduction 1.1 SEE862 The SEE862 is a manual varifocal lens for jobs on a tight budget. With 4-in-1 technology design means you can set the output signal to either TVI, CVI, AHD or CVBS. Built in twin IR arrays provide 40m of night time vision to get 24/7 performance on these new eyeballs. -
Page 4: Part 3 Connections
xSEE615 Connections The camera has a 2.1mm socket which requires 12V DC, use a regulated power supply rated above the current draw of the camera. The camera is polarity sensitive so connections must be correctly made. The camera has a standard BNC connector for the 4-in-1 video output, the output can be changed to AHD, CVI or CVBS if required. -
Page 5: Part 5 Mounting
Mounting Mounting 5.1 Eyeball A template is provided in the box for marking the hole positions for the fixing screws. © 2021 System Q Ltd ZipNVR.com... -
Page 6: Part 6 Osd Menu
OSD Menu Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set as default. To access the Cameras Menu via coaxitron:- 1. Click on the image in Live view 2. Click on the PTZ button at the bottom of the screen 3. - Page 7 OSD Menu IMAGE ENHANCE CONTRAST AUTO / MANUAL 0 ~ 20 (Default 0) SHARPNESS AUTO / MANUAL 0 ~ 20 (Default 8) SATURATE AUTO / MANUAL 0 ~ 20 (Default 10) 3DNR AUTO / MANUAL 0 ~ 20 (Default 2) 2DNR AUTO / MANUAL...
-
Page 8: Part 7 Troubleshooting
B. If set to CVBS, then this is a low quality video output for legacy systems (analogue - CVBS), when using a 2 MegaPixel DVR or above then use another video format, like HD-TVI. C. Reset the camera menu via Zip Coaxitron – OSD Menu D. - Page 9 Troubleshooting D. Ensure that the BNC – BNC lead that is connected between the camera and DVR has no shorts between the ground and the centre core (positive) or open circuits along the centre core (positive) or open circuits along the ground. ©...
-
Page 10: Part 8 General Maintenance
xSEE615 General Maintenance · Routinely clean the camera to prevent dust build up as this can effect the performance of the camera. It is recommended to use a damp non-abrasive microfibre cloth. · Routinely check the connections for power and data to ensure no water ingress and corrosion. ·... -
Page 11: Part 9 Specification
Specification Specification 9.1 SEE862 Resolution Lens Type 2.8-12mm Varifocal Image Output 1 Volt Peak-Peak 75 ohm Min.Illumination 0 Lux IR On Day/Night Mechanical (True Day-Night) IR Range Input Voltage 12V DC Current Consumption 400mA (IR On) IP Rating IP66 Video Connection... -
Page 12: Part 10 Conditions
WEE/CG0783SS collection point as defined by your local council. 10.3 Copyright © Copyright 2021 Zip is a registered trademark of System Q Ltd, Chesterfield. Derbyshire. S40 2WB © 2021 System Q Ltd ZipNVR.com... -
Page 13: Index
Index Index - H - Handy Extras - 2 - - M - 2.1mm DC Socket Maintenance - 4 - Mounting - N - 4-In-1 Technology - A - No Image Adjustment - O - - B - OSD Menu Output - P - - C -... - Page 14 xSEE615 - V - Video 2, 6 Video Loss Voltage drop - W - WEEE Declaration © 2021 System Q Ltd ZipNVR.com...
