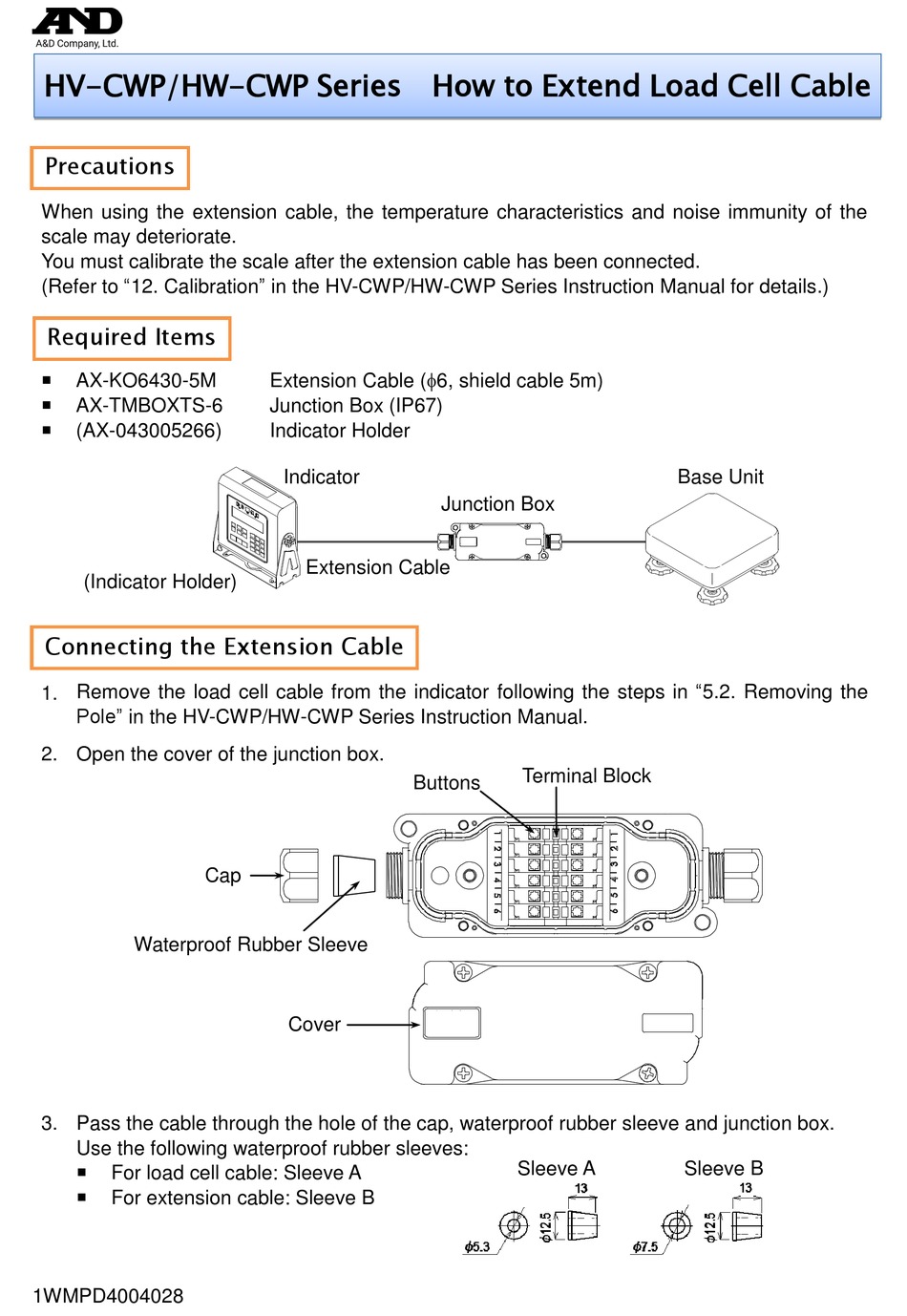

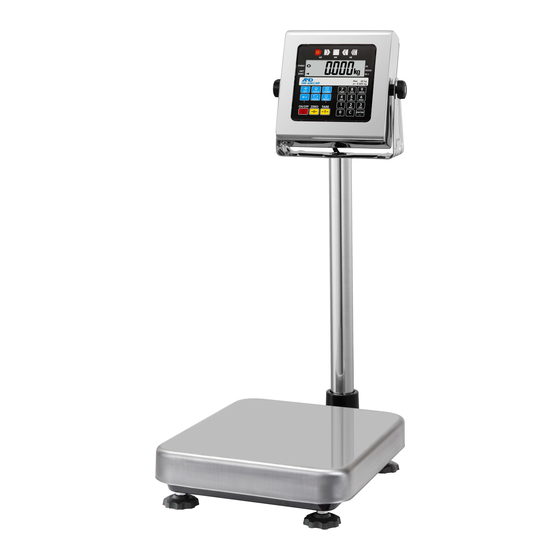

HV-CWP/HW-CWP Series How to Extend Load Cell Cable
Precautions
When using the extension cable, the temperature characteristics and noise immunity of the
scale may deteriorate.
You must calibrate the scale after the extension cable has been connected.
(Refer to "12. Calibration" in the HV-CWP/HW-CWP Series Instruction Manual for details.)
Required Items
AX-KO6430-5M
AX-TMBOXTS-6
(AX-043005266)
(Indicator Holder)
Connecting the Extension Cable
1. Remove the load cell cable from the indicator following the steps in "5.2. Removing the
Pole" in the HV-CWP/HW-CWP Series Instruction Manual.
2. Open the cover of the junction box.
Waterproof Rubber Sleeve
3. Pass the cable through the hole of the cap, waterproof rubber sleeve and junction box.
Use the following waterproof rubber sleeves:
For load cell cable: Sleeve A
For extension cable: Sleeve B
1WMPD4004028
Extension Cable (6, shield cable 5m)
Junction Box (IP67)
Indicator Holder
Indicator
Extension Cable
Cap
Cover
Junction Box
Terminal Block
Buttons
Sleeve A
Base Unit
Sleeve B
Advertisement
Related Manuals for AND HV-CWP Series
Summary of Contents for AND HV-CWP Series
- Page 1 2. Open the cover of the junction box. Terminal Block Buttons Waterproof Rubber Sleeve Cover 3. Pass the cable through the hole of the cap, waterproof rubber sleeve and junction box. Use the following waterproof rubber sleeves: Sleeve A Sleeve B ...
- Page 2 Make sure that the cables are securely connected. 5. Close the load cell panel of the indicator. 6. Close the cap and cover of the junction box firmly. 7. Place an object on the weighing pan and check that it can be weighed correctly.
