Imported by
Amart Furniture
For any assistance with assembly or for missing parts please phone
Amart Furniture
2021-06-22
Pty Ltd, Qld, Brisbane Australia.
, Customer Service Free call 1800 351 084

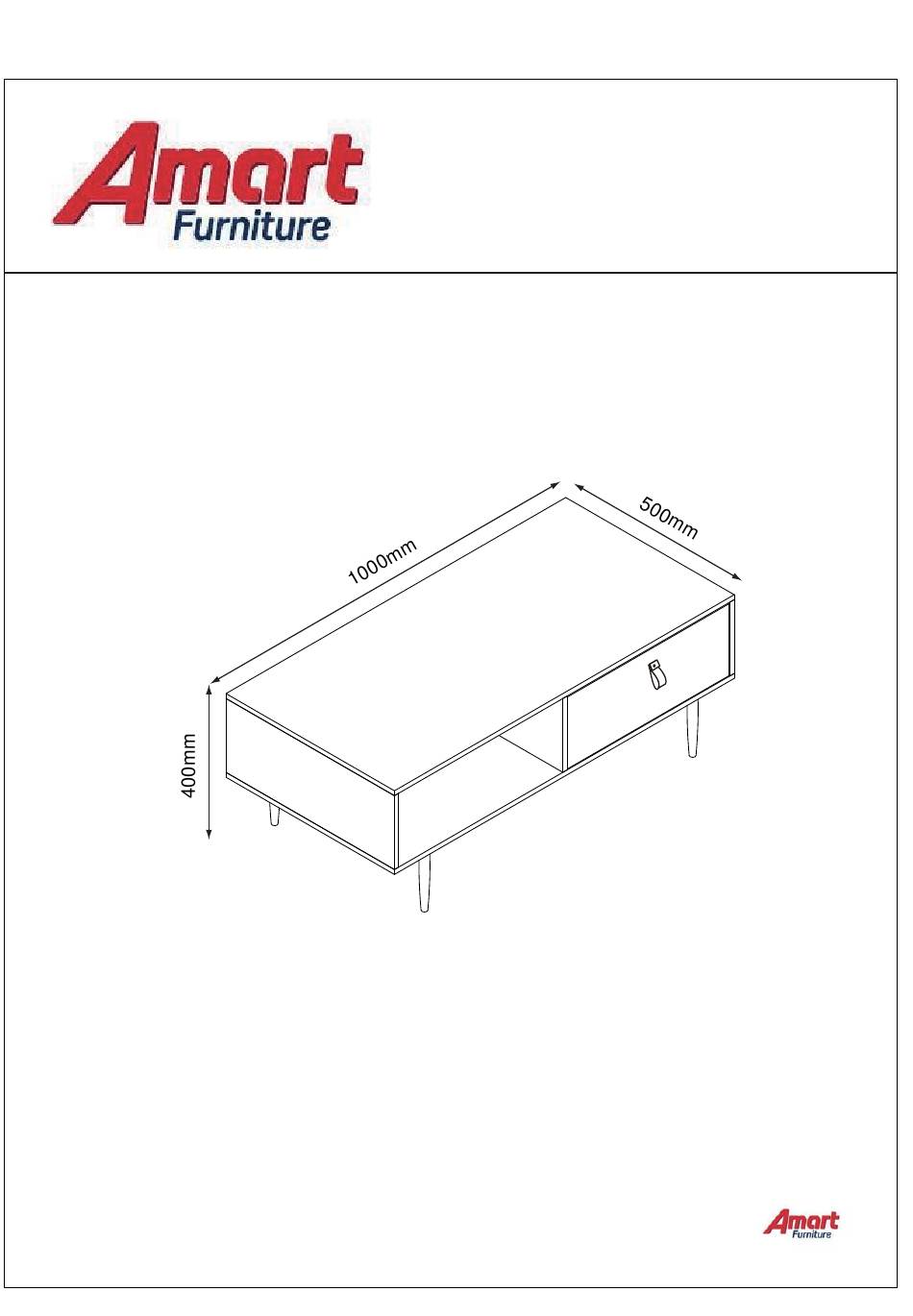

ASSEMBLY INSTRUCTION
MORGANA COFFEE TABLE
ITEM CODE 72880
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
1-16
Item Code: 72880
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture MORGANA 72880
Summary of Contents for Amart Furniture MORGANA 72880
- Page 1 ITEM CODE 72880 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Pty Ltd, Qld, Brisbane Australia.
- Page 2 2021-06-22 Item Code: 72880 2-16...
- Page 3 2021-06-22 3-16 Item Code: 72880...
- Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
- Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 2021-06-22 Item Code: 72880 5-16...
- Page 6 (MM) 350x200x15 495x200x15 495x200x15 967x200x15 1000x500x15 1000x500x15 330x140x15 330x140x15 421x140x15 429x322x2.7 469x193x15 Item Code: 72880 6-16 2021-06-22...
- Page 7 1xCL 1xCR STEP 1: Fix runners (CL) to panels (1)(2) with screws (D). STEP 2: Fix cam pin (A) to panels (2)(3). 2021-06-22 7-16...
- Page 8 Attach panels (1)(2)(3) to panel(4) with dowel(C)and screws (F). STEP 3: STEP 4: Fix cam pin (A) to panel (5). 2021-06-22 Item Code: 72880 8-16...
- Page 9 Attach panel (5) to the body with dowel(C)and cam lock (B). STEP 5: STEP 6: Attach panel (6) to the body with screws (F). Item Code: 72880 2021-06-22 9-16...
- Page 10 20xE STEP 7: Fix metal plate(H) to panel(6) with screws (E). STEP 8: Fix leg (I) to panel(6). Item Code: 72880 2021-06-22 10-16...
- Page 11 1xDL 1xDR STEP 9:Install drawers as shown in diagram. 1A:Fix cam lock (A) and handle(G) to 2:Join side panels (7)(8) and back panel (11). panel(9) with screws (F). 3A:Put bottom panel (10) into groove 4:Install runner(DR)(DL) to the bottom of drawer of panel(7)(8)and (9).
- Page 12 STEP 10: Assemble drawers to the body. ASSEMBLY COMPLETE. Item Code: 72880 2021-06-22 12-16...
- Page 13 STEP 1: Fix bracket to back panel using screws M3.5*14MM . into bracket. NOTE are used. Failure to do so may result in personal injury or cause property damage if the product topples over. Please note that the screws are only suitable for plasterboard wall materials, please contact local hardware store for corresponding screws for other wall materials.
- Page 14 STEP 2: Fix bracket onto the wall using screws M4*30MM. Furniture top Wallboard Bracket 14-16...
- Page 15 SAFETY BRACKETS INSTRUCTIONS 1.Attach a bracket to the wallboard with the long screws provided. 2.Attach a bracket to the furniture frame under the top with the short screws provided. 3.Move the furniture into its final position. Thread a strap through the bracket as shown in the illustration, tighten strap until snug.
-
Page 16: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
