Amart Furniture MORGANA 72882 Assembly Instruction Manual

Beffet
Hide thumbs

Advertisement

Quick Links

Download this manual
Imported by
Amart Furniture
For any assistance with assembly or for missing parts please phone
Amart Furniture
2021-06-22
Pty Ltd, Qld, Brisbane Australia.
, Customer Service Free call 1800 351 084

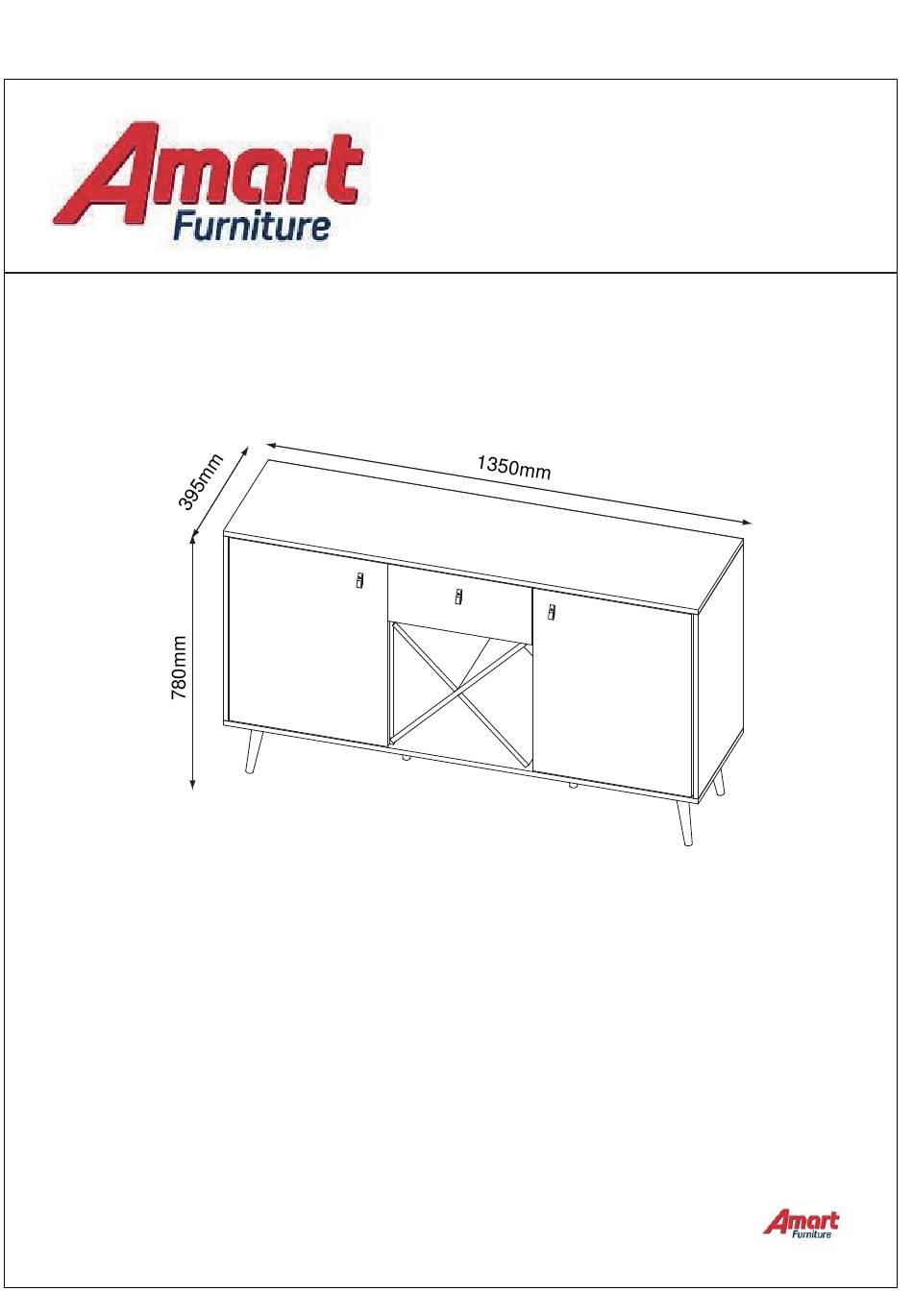

ASSEMBLY INSTRUCTION
MORGANA BEFFET
ITEM CODE 72882
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
1-18
Item Code: 72882

Advertisement

loading
Need help?

Need help?

Do you have a question about the MORGANA 72882 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amart Furniture MORGANA 72882

Summary of Contents for Amart Furniture MORGANA 72882

  • Page 1 ITEM CODE 72882 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Pty Ltd, Qld, Brisbane Australia.
  • Page 2 2021-06-22 Item Code: 72882 2-18...
  • Page 3 2021-06-22 3-18 Item Code: 72882...
  • Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
  • Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 2021-06-22 Item Code: 72882 5-18...
  • Page 6 (MM) 1501x395x15 580x393x15 580x393x15 580x375x15 580x375x15 482x374x15 482x374x15 1493x303x2.7 1501x395x15 574x485x15 574x485x15 485x190x15 330x140x15 426x322x2.7 418x140x15 330x140x15 473x140x15 1480 550x370x15 Item Code: 72882 6-18 2021-06-22...
  • Page 7 1xCL 1xCR STEP 1: Fix cam pin (C) and runners (CL)(CR) to panels (4)(5)with screws(I). STEP 2: Fix cam pin (C) to panels (2)(3). Item Code: 72882 2021-06-22 7-18...
  • Page 8 Attach panels(2)(4) to panel (6) with dowel(B) and cam lock(D). STEP 3: Attach panels(3)(5) to panel (7) with dowel(B) and cam lock(D). STEP 4: Attach panels(4)(5) to panel (17) with dowel(B) and screws(A). 2021-06-22 Item Code: 72882 8-18...
  • Page 9 STEP 5: Attach panel(9) to the body with dowel(B) and screws(A). Fx20 STEP 6: Fix metal parts(G) to bottom panel(9) with screws(F). Item Code: 72882 2021-06-22 9-18...
  • Page 10 Fix legs (E) to metal parts . STEP 7: Attach Legs (N) to base (9) Attach Adjustable feet (J) to Legs (N). Fix cam pin (C)to panel(1). STEP 8: Attach panel(1) to the body with dowel(B) and cam lock(D). TURN OVER Item Code: 72882 2021-06-22 10-18...
  • Page 11 16xI STEP 9: Fix handle (L) and hinges(H) to doors with screws(I). Item Code: 72882 2021-06-22 11-18...
  • Page 12 1xDL 1xDR STEP 10:Install drawers as shown in diagram. 1A:Fix cam lock (C) and handle(L) to 2:Join side panels (13)(16) and back panel (12). panel(15) with screws (A). 3A:Put bottom panel (14) into groove 4:Install runner(DR)(DL) to the bottom of drawer of panel(13)(16)and (15).
  • Page 13 26xK STEP 11: Join back panels with filler (18) and attach back panels to the body with screws(K) . STEP 12: Assemble drawers to the body. 2021-06-22 Item Code: 72882 13-18...
  • Page 14 STEP 13: Assemble panels (19) as shown,and insert into the buffet. ASSEMBLY COMPLETE. Item Code: 72882 2021-06-22 14-18...
  • Page 15 STEP 1: Fix bracket to back panel using screws M3.5*14MM . into bracket. NOTE are used. Failure to do so may result in personal injury or cause property damage if the product topples over. Please note that the screws are only suitable for plasterboard wall materials, please contact local hardware store for corresponding screws for other wall materials.
  • Page 16 STEP 2: Fix bracket onto the wall using screws M4*30MM. Furniture top Wallboard Bracket 16-18...
  • Page 17 SAFETY BRACKETS INSTRUCTIONS 1.Attach a bracket to the wallboard with the long screws provided. 2.Attach a bracket to the furniture frame under the top with the short screws provided. 3.Move the furniture into its final position. Thread a strap through the bracket as shown in the illustration, tighten strap until snug.

  • Page 18: Product Care

    PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
