Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts, please phone
Amart Furniture, Customer Service Free call 1800 351 084

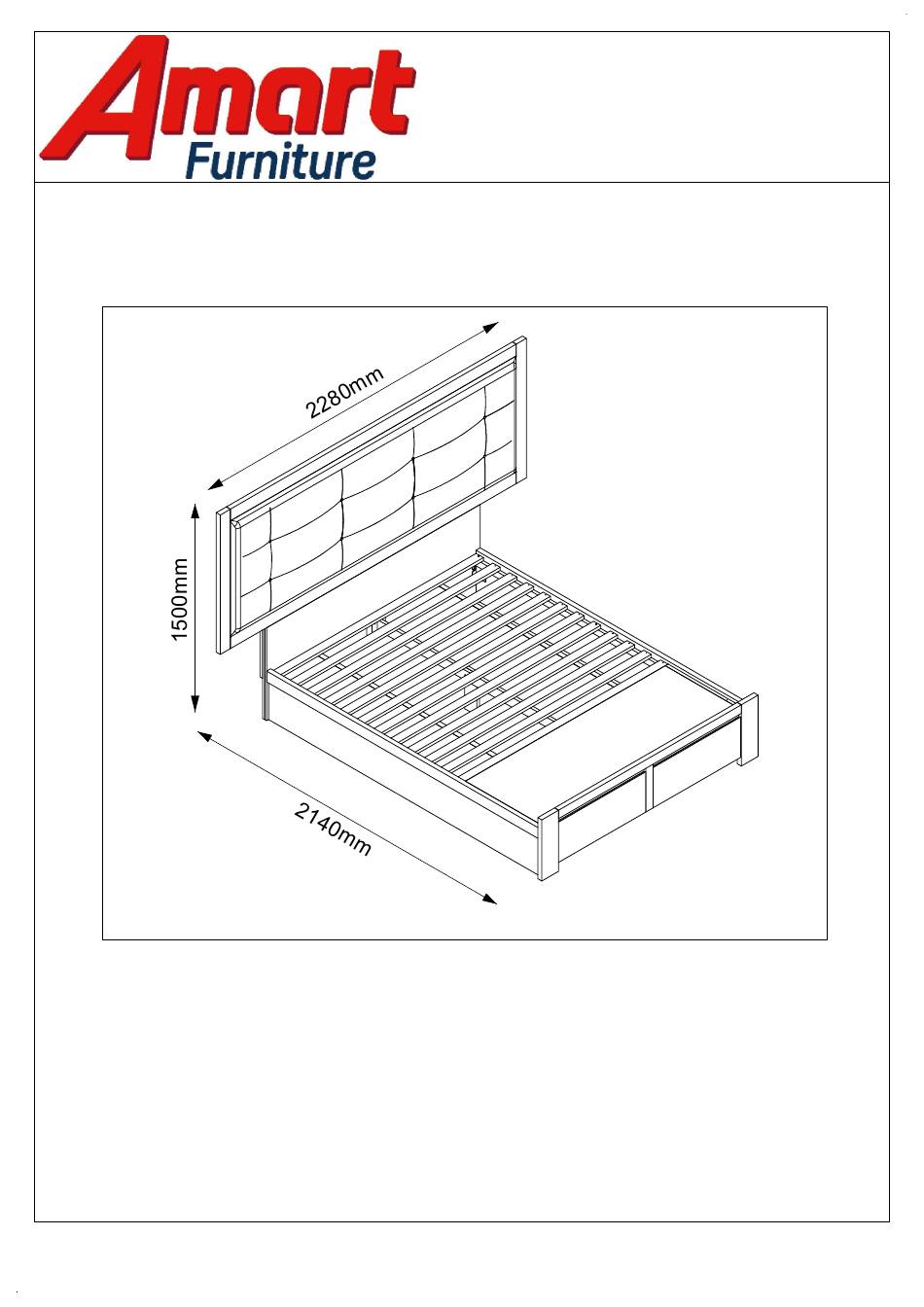

ASSEMBLY INSTRUCTION

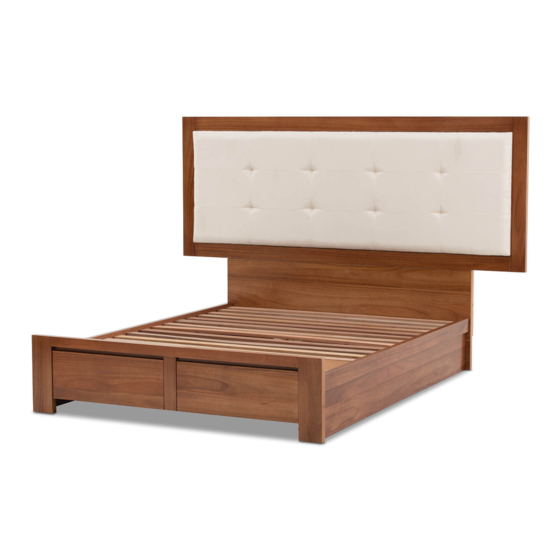

WINTON QUEEN BED
ITEM CODE 72062
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts, please phone
Amart Furniture, Customer Service Free call 1800 351 084
1
ITEM CODE 72062
Advertisement
Table of Contents
Related Manuals for Amart Furniture Winton 72062
Summary of Contents for Amart Furniture Winton 72062
- Page 1 ASSEMBLY INSTRUCTION WINTON QUEEN BED ITEM CODE 72062 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts, please phone Amart Furniture, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product. 2. Take care when lifting. Product should be assembled as near as possible to the point of use. 3. Ensure that you have all the required contents for complete assembly. 4.
- Page 3 PART LIST A. Spring Washer B. Flat Washer 30pcs 30pcs C. Bolt D. Bolt Note: Hardware are located inside siderail boxes. JCBC M8 x 16 8pcs JCBC M8 x 40 24pcs E. Bolt F. Screw DESCRIPTION QTY. HEADBOARD JCBC M6 x 40 8pcs CSK M4 x 32mm 32pcs HEADBOARD BASE...
- Page 4 ITEMS REQUIRED C. Bolt E. Bolt F. Screw G. Dowel I. Allen Key J. Allen Key 8pcs 2pcs 8pcs 4pcs JCBC M8 x 16 JCBC M6 x 40 CSK M4 x 32mm M8 x 40 - Attach Siderail (5 & 6) to Headboard Base (2) & Footboard (4) by pushing the bracket down.
- Page 5 ITEMS REQUIRED A. Spring Washer B. Flat Washer D. Bolt E. Bolt K. Screw H. Dowel I. Allen Key J. Allen Key 6pcs 24pcs 2pcs 3pcs 30pcs 30pcs JCBC M8 x 40 JCBC M6 x 40 CSK M4 x 50mm M8 x 50 - Install all three Headboard Support (3) to the back of Headboard Base (2) using Bolts (D), Spring Washer (A), Flat Washer (B) and Allen Key (J).
- Page 6 ITEMS REQUIRED F. Screw 24pcs CSK M4 x 32mm - Once the bed is positioned, the Slat Support Leg (9) should be adjusted to touch the floor. - Place Slats (7) to ledge of Side Rails (5 & 6). - Attach together using Screw (F). - Tighten with screw driver or power drill on low speed setting.
- Page 7 CARE AND MAINTENANCE A multi-step finish is applied to all our furniture, but all wood comes from nature. Because of this, there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in character are not defects, but distinctions that make each piece of furniture unique.
