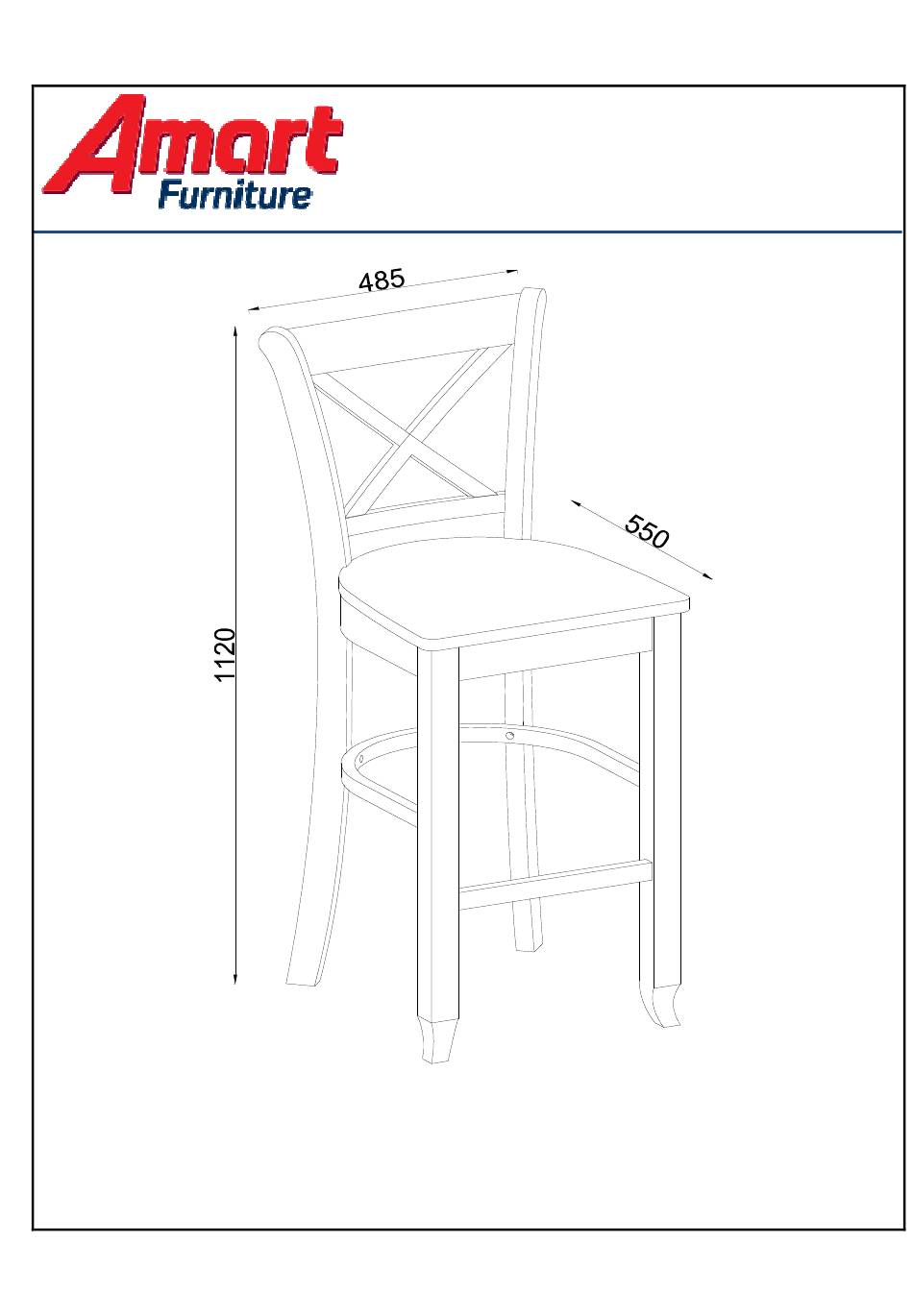

ASSEMBLY INSTRUCTION

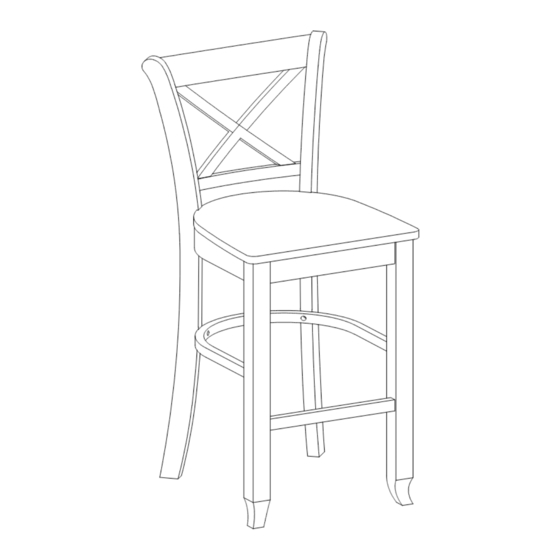

ECHUCA STOOL
ITEM CODE 72827
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
1
72827
Advertisement
Table of Contents
Related Manuals for Amart Furniture ECHUCA 72827
Summary of Contents for Amart Furniture ECHUCA 72827
- Page 1 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST NO DESCRIPTION Chair back Seat Frame Leg (L-R) U Stretcher Front stretcher Bolt M8x45 Bolt M6x60 Lock Washer c. Flat Washer (Φ8.5xΦ19) (Φ8.5xΦ13) 6pcs 4pcs 6pcs 6pcs Flat Washer Lock Washer (Φ6.5xΦ9) Screw M4x40 Allen key M4 (Φ6.5xΦ19) 4pcs 4pcs 4pcs...
- Page 4 ITEMS REQUIRED Lock Washer Allen key M4 a. Bolt M8x45 Flat Washer (Φ8.5xΦ13) (Φ8.5xΦ19) 4pcs 4pcs 4pcs Attach chair back ( 1 ) to seat frame (2) using bolts (a), Flat Washers(c) and Lock • Washers(d). Tighten with Allen Key (h). •...
- Page 5 ITEMS REQUIRED Bolt M8x45 Bolt M6x60 Lock Washer c. Flat Washer (Φ8.5xΦ19) (Φ8.5xΦ13) 2pcs 4pcs 2pcs 2pcs Flat Washer Lock Washer (Φ6.5xΦ9) Screw M4x40 Allen key M4 (Φ6.5xΦ19) 4pcs 4pcs 4pcs • Attach leg (3(L-R)) to front stretcher (5) using screw (g). •...
- Page 6 ASSEMBLY IS COMPLETE Do Not: Use chair/stool as a ladder Climb on the chair/stool. Stand on the foot- rest of the chair/stool, as this could lead to the stool becoming unbalanced and overturning 72827...
- Page 7 Care and maintenance • A multi-step finish is applied to all our furniture, but all wood comes from nature. Because of this, there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in character are not defects, but distinctions that make each piece of furniture unique.
