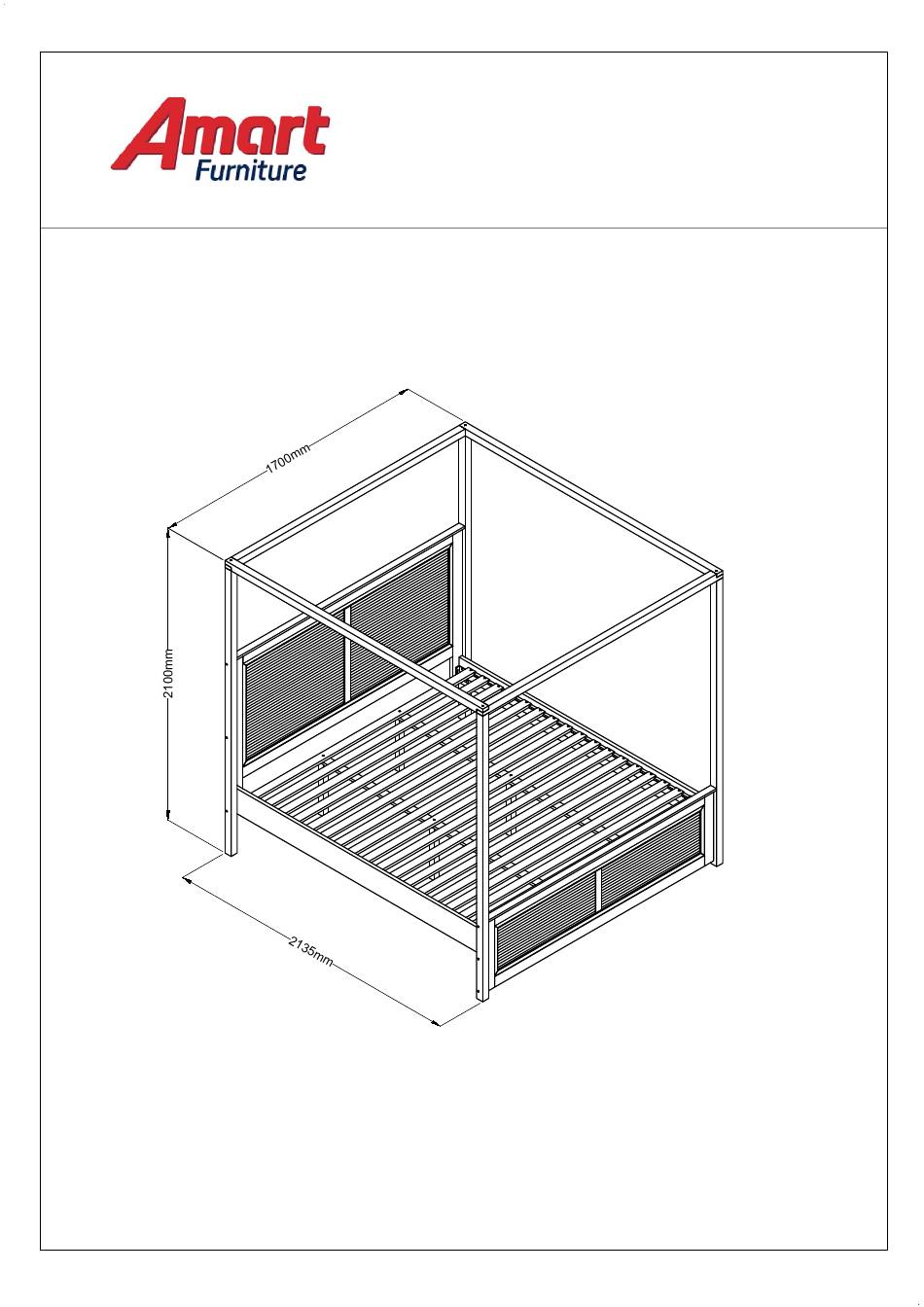

- Page 1 ASSEMBLY INSTRUCTION LOCKLYN QUEEN 4 POST BED ITEM CODE 72733 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 72733...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST PARTS LIST QT'Y HARDWARE LIST QT'Y Headboard 1 pc Bolt M6x75mm 12 pcs Footboard 1 pc Spring washer M6 12 pcs Side rails 2 pcs Flat washer M6xØ14 12 pcs Middle rails 2 pcs Bolt M8x25mm 8 pcs 6 pcs Support legs Bolt M6x60mm... - Page 4 STEP 1: Attach wood dowels (K) onto headboard and vertical headboard rails. Attach headboard (1) onto vertical headboard rail-right (8a) and vertical headboard rail-left (8b) using the bolts (A),Spring washer (B) and Flat washer (C), tighten it up by using an allen key (G). Attach adhesive felt pad (M) onto the legs.
- Page 5 STEP 3: Attach side rails (3) onto (M frame) and (N frame) using the bolts (D), tighten it up by using an allen key (G). (x8) M frame N frame STEP 4: Attach cross top rails (10) and horizontal top rails (11) onto vertical headboard rail-right (8a), vertical headboard rail-left (8b), vertical footboard rail-right (9a) and vertical footboard rail-left (9b) using the screws (i) tighten it up by using an allen key (G).
- Page 6 STEP 5: Attach support legs (5) onto middle rails (4) and middle slats (6) using the bolts (E), tighten it up by using an allen key (G). Assemble these components out of bed frame. (x6) Y frame STEP 6: Use two people to place (Y frame) onto side rails (3). Attach (Y frame) onto side rails (3) using the bolts (F), tighten it up by using an allen key (G).
-
Page 7: Important Note
STEP 7: Once the bed is positioned and the support legs are adjusted to touch floor,the slats can then be laid down and secured before putting on the mattress. Attach slats (7) onto side rails (3) using the screws (H), tighten it up by using a screwdriver. (X28) ASSEMBLY IS COMPLETE IMPORTANT NOTE:... - Page 8 suitable and sudden...
