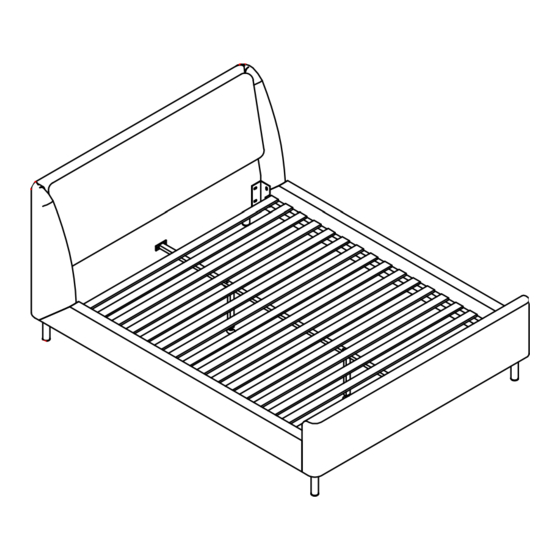

ASSEMBLY INSTRUCTION
BILLIE QUEEN BED
ITEM CODE 72024
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart furniture, Customer Service Free call 1800 351 084
1
72024
Advertisement
Table of Contents
Related Manuals for Amart Furniture BILLIE 72024
Summary of Contents for Amart Furniture BILLIE 72024

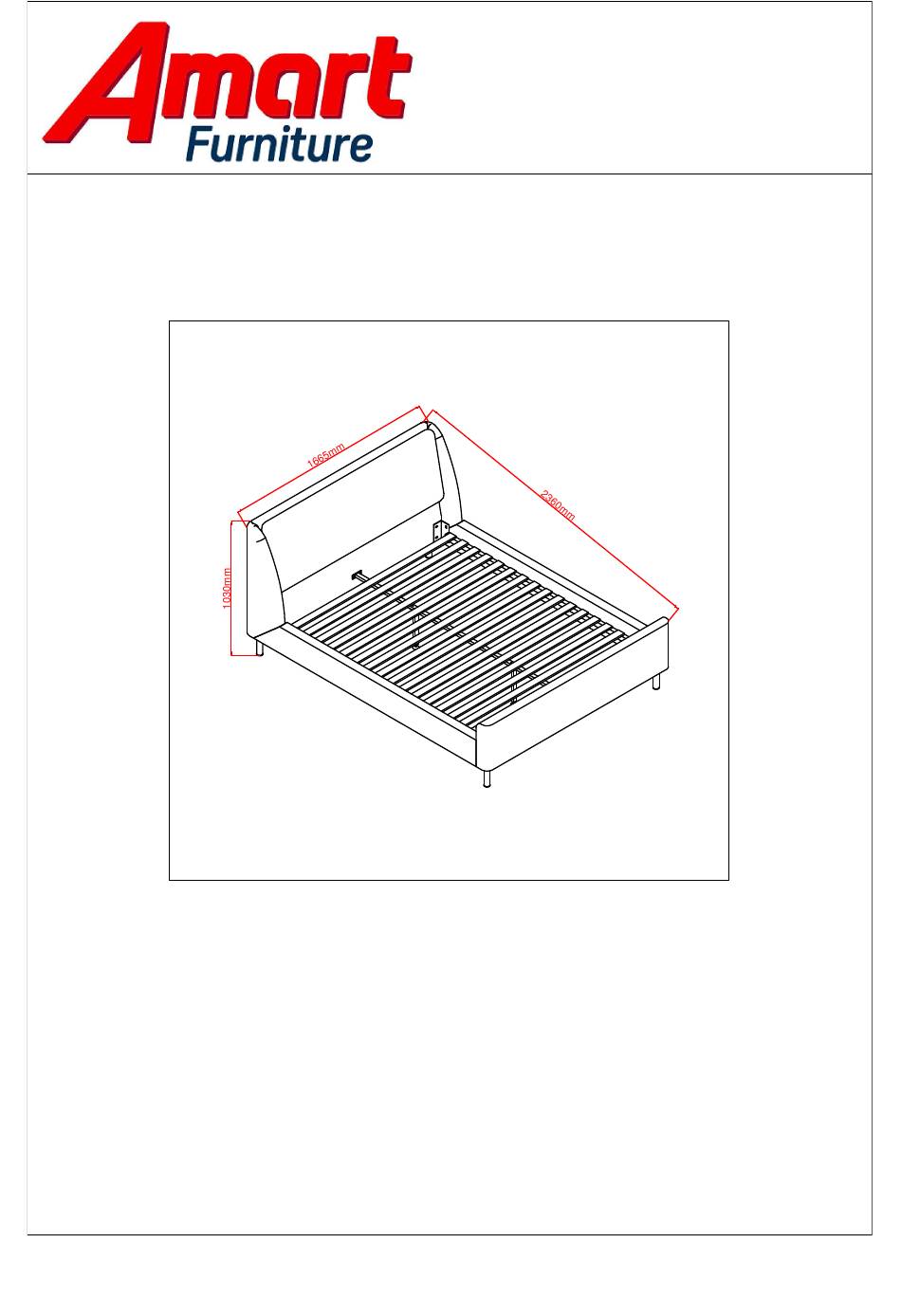

- Page 1 ASSEMBLY INSTRUCTION BILLIE QUEEN BED ITEM CODE 72024 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart furniture, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia.
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
- Page 3 PARTS LIST Left Side Rail Right Side Rail Footboard Headboard Slat Metal Bracket Centre slat rail Screw 72024...
- Page 4 Attach Metal bracket(9)to Headboard(1),using spring washer(H) STEP 1 flat washer(A),and bolt(C)as shown below,then tighten with allen key(B). Pay attention to the orientation of Metal Bracket(9) installation Attach Metal bracket(9)to Foot end of Side rails,using spring STEP 2 washer(H)flat washer(A),and bolt(C)as shown below,then tighten with allen key(B).
- Page 5 Attach Rails(2,3)to Metal bracket on Headboard(1),using spring washer(H)Flat washer(A),and bolt(C)as shown below,then tighten STEP 3 with allen key(B). Then attach bracket on Rails(2,3)to Footboard(4),using spring washer(H)flat washer(A),and bolt(C)as shown below,then tighten with allen key(B). Attach Centre slat rail(7)to Headboard(1)and Footboard(4), using flat washer(A)and bolt(C)as shown below,then tighten STEP 4 with allen key(B).
- Page 6 Using two people,carefully turn the bed onto its side.Align Legs(6)with pre-drilled holes,and attach using spring washer(H) STEP 5 flat washer(A),and bolt(E) as shown below,then tighten with allen key(B).Then align screw(D) with the hole and tighten. Attach Centre support legs(5)to centre slat rail(7),using flat washer(A)nut(F),and bolt(C)as shown below,then tighten with STEP 6 allen key(B)and wench(G).
- Page 7 STEP 7 Attach Slats (8) to side rails(2,3),using screw(D). ASSEMBLY IS COMPLETE 72024...
- Page 8 Fabric Care and Maintenance REGULAR CARE: CLEANING: they may have zippers recommended SPOT CLEANING: fabric before applying cleaner remove the residue of the spill Do not saturate the fabric or interior with water or other cleaning liquids WARNING: Apply only water-based soil resist (fabric protection) treatments. Do not use aerosol products * PILLING IS NOT A FABRIC DEFECT OR FAULT AND IS NOT COVERED BY WARRANTY...
