Amart Furniture KHYBER 72840 Assembly Instruction Manual

Amart Furniture KHYBER 72840 Assembly Instruction Manual

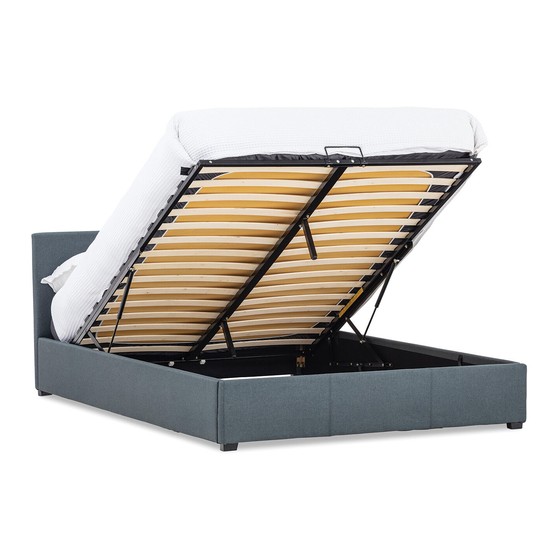

Queen bed

Advertisement

Quick Links

870mm
Imported by Amart Furniture Pty Ltd,Brisbane, Qld, Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
ASSEMBLY INSTRUCTION
KHYBER QUEEN BED
ITEM CODE 72840
Imported by Amart Furniture Pty Ltd, Brisbane, Qld, Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
1
Item code 72840

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KHYBER 72840 and is the answer not in the manual?

Questions and answers

Summary of Contents for Amart Furniture KHYBER 72840

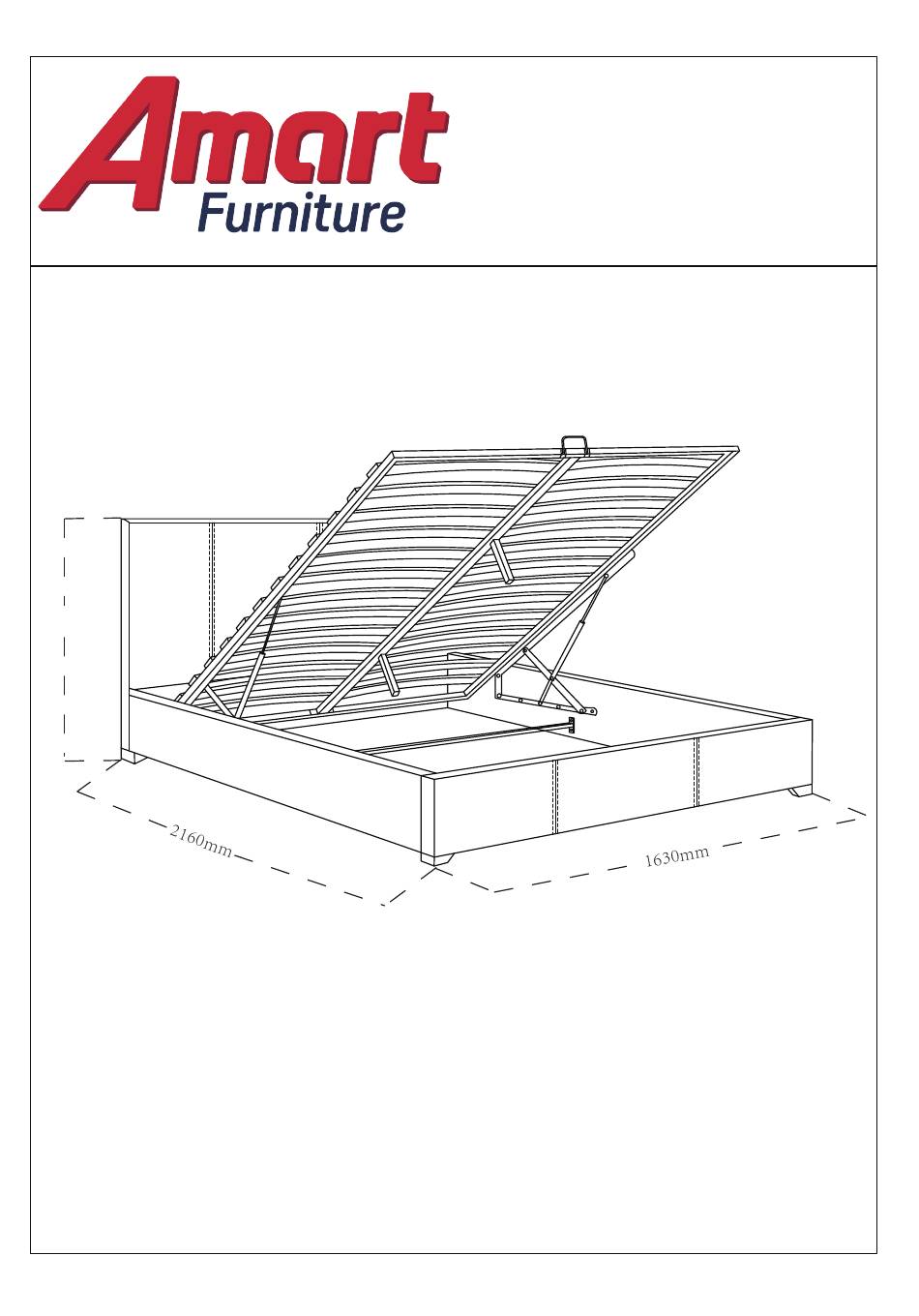

  • Page 1 ASSEMBLY INSTRUCTION KHYBER QUEEN BED ITEM CODE 72840 Imported by Amart Furniture Pty Ltd, Brisbane, Qld, Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 870mm Imported by Amart Furniture Pty Ltd,Brisbane, Qld, Australia.
  • Page 2: Before You Start

    PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
  • Page 3: Parts List

    Parts List Platform Bottom Rail Headboard     1PC Foot   Board   1PC Side Rail 2PCS 1 PC Platform Side Rail 2PC Slat   30   PCS Single Plastic Cap      30pcs Double Plastic Cap     15pcs Leg   4  PCS 4  PCS Support  Leg    2 ...
  • Page 4 Step1 Attach Legs (I) to bottom of Headboard (A) and Footboard (B) using Bolt (9) and Washer (5) as shown below. Tighten with Allen key (6). Step2 Connect Bolts (1) with Washer (5) and Spring washer (4) to Headboard (A) and Footboard (B).Do not tighten these bolts fully until after Middle bar has been attached in Step 5.
  • Page 5 Step3 Attach the platform top rail(M), platform bottom rail(D) and platform side rail(E) using corner connectors (J), fasten them with bolts and barrel nuts (11) and tighten with allen key (12). Then attach the centre support bar(O) with the bolts(2) and nuts(3), tighten them by spanner(7) and screw driver(8). Attach support legs(K) under the centre support bar(O), with bolts(2) and nuts(3), tighten them with spanner(7) and screw driver(8).
  • Page 6 Step5 Attach the centre support bar(Q) to the side rails (C) with bolts (1), and tighten all bolts holding side rails to Headboard and Footboard from step 2. 4pcs Step6 Put the metal frame assembled in Step 3 onto the pneumatic frame, and attach with screws (2) and nuts(3) using Spanner (7) and Screwdriver (8).
  • Page 7 Step7 Attach hook (N) to Platform Top Rail (M) and handle (P) to Platform Bottom Rail (D) with bolts (10) and nuts (3) using Spanner (7) and Allen Key (6). 1 pc 2pcs 2pcs Step8 Attach an end cap(G) onto one end of every slat (F), 1 per slat. Attach 2 slat pieces together using middle cap(H) to form 14x slat pairs.
  • Page 8 Assembly Is Complete CAUTION ALWAYS LIFT YOUR BEDS WHEN MOVING/RELOCATING - DO NOT DRAG. DRAGGING CAN CAUSE THE CENTRE SUPPORT LEG TO BENT/BREAK. Item code 72840...
  • Page 9: Product Care

    * PILLING IS A NORMAL OCCURRENCE CAUSED BY WEAR AND TEAR AND DOES NOT AFFECT THE DURABILITY OR FUNCTIONALITY OF THE FABRIC AND IS EASILY REMOVED Made In China Imported By Amart Furniture Pty Ltd Brisbane, Qld, Australia Item Code: 72840 Product Name: KHYBER QUEEN LIFT BED Item code 72840...
