Amart Furniture MORGANA 72878 Assembly Instruction Manual

Desk
Hide thumbs

Advertisement

Quick Links

Download this manual
Imported by
Amart Furniture
For any assistance with assembly or for missing parts please phone
Amart Furniture
2021-06-22
Pty Ltd, Qld, Brisbane Australia.
, Customer Service Free call 1800 351 084

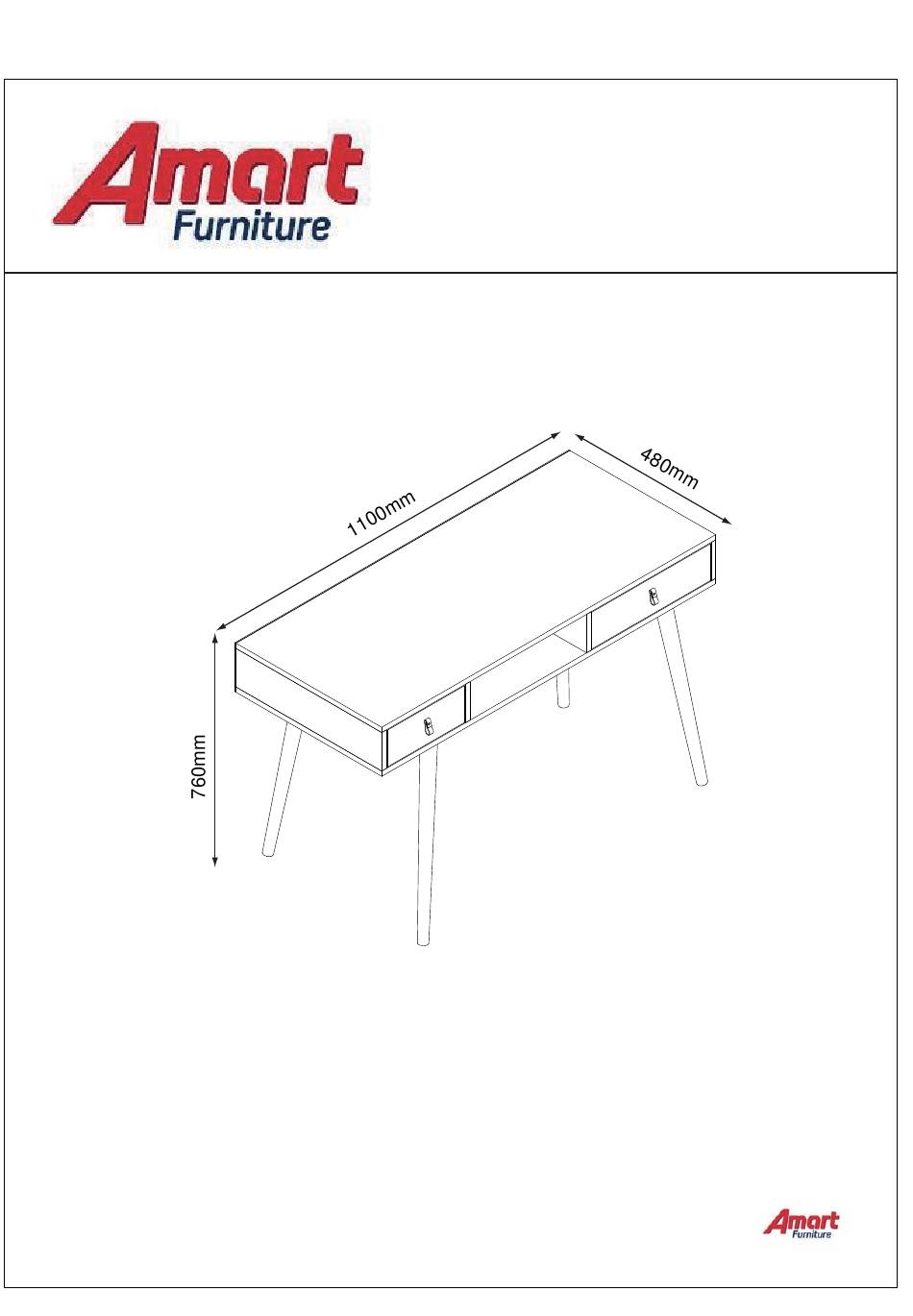

ASSEMBLY INSTRUCTION
MORGANA DESK
ITEM CODE 72878
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
1-16
Item Code: 72878

Advertisement

loading
Need help?

Need help?

Do you have a question about the MORGANA 72878 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amart Furniture MORGANA 72878

Summary of Contents for Amart Furniture MORGANA 72878

  • Page 1 ITEM CODE 72878 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Pty Ltd, Qld, Brisbane Australia.
  • Page 2 2021-06-22 Item Code: 72878 2-16...
  • Page 3 2021-06-22 3-16 Item Code: 72878...
  • Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
  • Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 2021-06-22 Item Code: 72878 5-16...
  • Page 6 (MM) 479x110x15 479x110x15 479x110x15 479x110x15 1100x480x15 1100x480x15 1094x138x2.7 330x95x15 330x95x15 218x95x15 322x226x2.7 254x104x15 348x95x15 356x322x2.7 384x104x15 Item Code: 72878 6-16 2021-06-22...
  • Page 7 12xD STEP 1: Fix runners (F) to panels (1)(2)(3)(4) with screws (D). Item Code: 72878 2021-06-22 7-16...
  • Page 8 Attach panels(1)(2)(3)(4) to panel (5) with dowel(C) and screws(E). STEP 2: 16xL STEP 3: Supporter (I) to bottom panel(5) with screws(L) by allen key(K). 2021-06-22 Item Code: 72878 8-16...
  • Page 9 STEP 4: Fix legs (J) to Supporter(I). STEP 5: Fix cam pin (A)to panel (6). Item Code: 72878 2021-06-22 9-16...
  • Page 10 Attach top panel(6) to the body with dowel(C) and cam lock(B). STEP 6: 14xH STEP 7: Attach panel(7) to the body with screws(H). Item Code: 72878 2021-06-22 10-16...
  • Page 11 STEP 8:Install drawers as shown in diagram. 1A:Fix cam lock (A) and handle(N) to 2:Join side panels (8)(9) and back panel (15)(12). panel(10)/(13)with screws (E). 3A:Put bottom panel (11) into groove of panel(8)(9)and (10). 3B:Attach drawer front(12)/(15) to the drawer with cam lock (B). Item Code: 72878 2021-06-22 11-16...
  • Page 12 Insert screws (M) to attach drawers to runners. STEP 9: Assemble drawers to the body. ASSEMBLY COMPLETE. Item Code: 72878 2021-06-22 12-16...
  • Page 13 STEP 1: Fix bracket to back panel using screws M3.5*14MM . into bracket. NOTE are used. Failure to do so may result in personal injury or cause property damage if the product topples over. Please note that the screws are only suitable for plasterboard wall materials, please contact local hardware store for corresponding screws for other wall materials.
  • Page 14 STEP 2: Fix bracket onto the wall using screws M4*30MM. Furniture top Wallboard Bracket 14-16...
  • Page 15 SAFETY BRACKETS INSTRUCTIONS 1.Attach a bracket to the wallboard with the long screws provided. 2.Attach a bracket to the furniture frame under the top with the short screws provided. 3.Move the furniture into its final position. Thread a strap through the bracket as shown in the illustration, tighten strap until snug.

  • Page 16: Product Care

    PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
