Connecting The Panel To The Monitoring Pc - Matrix COSEC Panel Quick Start Manual

Connect your computer's Ethernet port and the PANEL's Ethernet Port by using
either of two below mentioned methods:

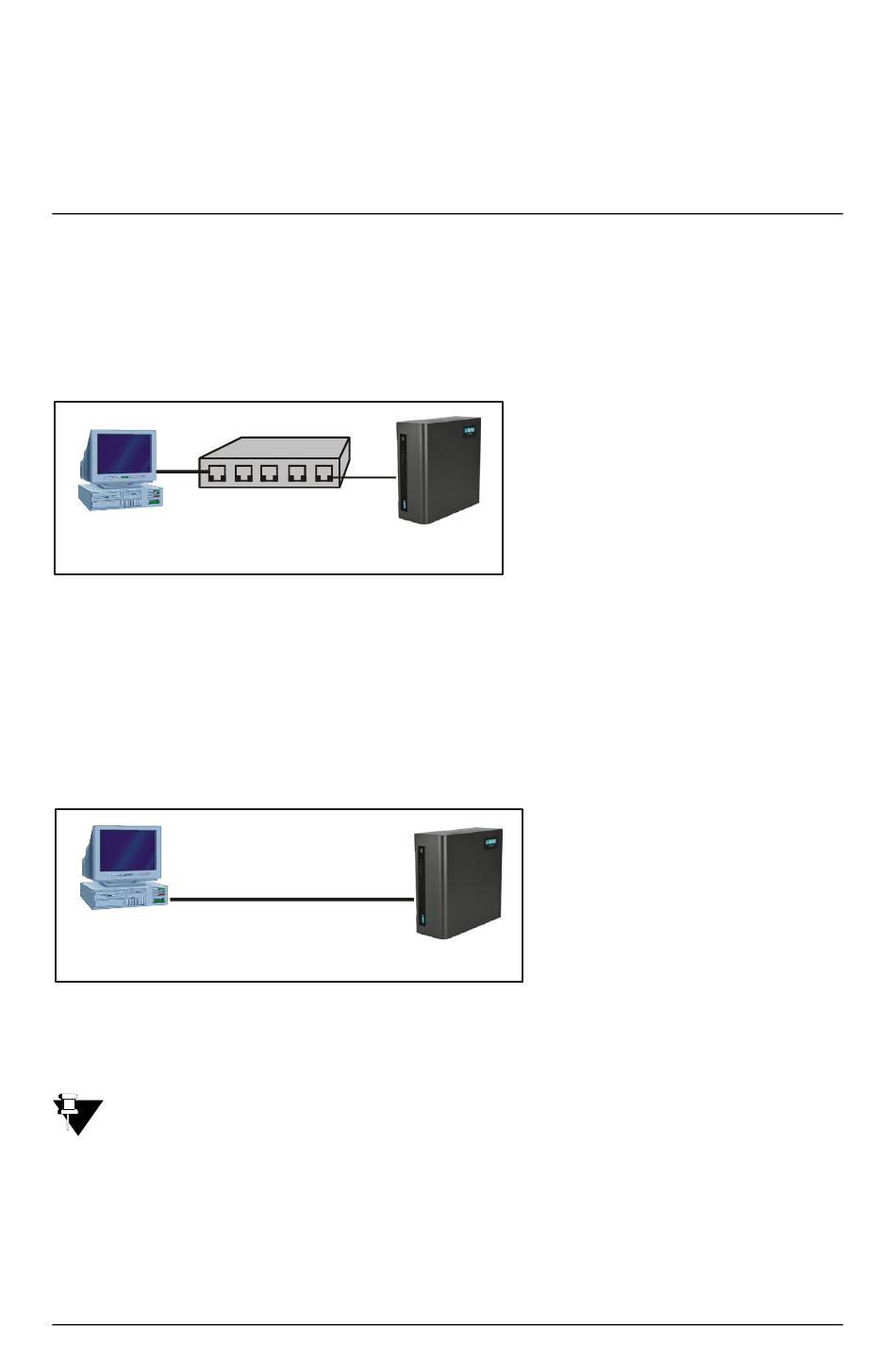

• Connect both the computer's and the DOOR's Ethernet port to an Ethernet
hub with standard straight-through Ethernet patch cables as shown.
COSEC
Application Server
• Connect the computer's Ethernet port directly to the PANEL's Ethernet port
with an Ethernet crossover/Straight cable. A crossover cable is a cable that
maps all output signals on one connector to the input signals on the other
connector. This allows the computer and the PANEL to perform full-duplex
Ethernet communication.
Crossover/Straight Cable
COSEC
Application Server
When configuring the IP addresses of the new COSEC PANEL, please
ensure that you connect the PANELs one at a time on the network. This is to
avoid conflict of IPs which would occur if two PANELs with the same default
IP addresses are connected on the network.
