telephone equipment or lines, and at a minimum of 8 meters (25 feet) from any
transmitting equipment.
• Review the COSEC PANEL layout, cable runs, and power needs.
• Mount the enclosure at the proper location on the wall. Use appropriate
anchors for the mounting material.
• Run all I/O wires to the enclosure, and properly mark each wire for its use.
The PANEL comes with a 8 port terminal strip to connect the I/O and the
RS485 communication cables.

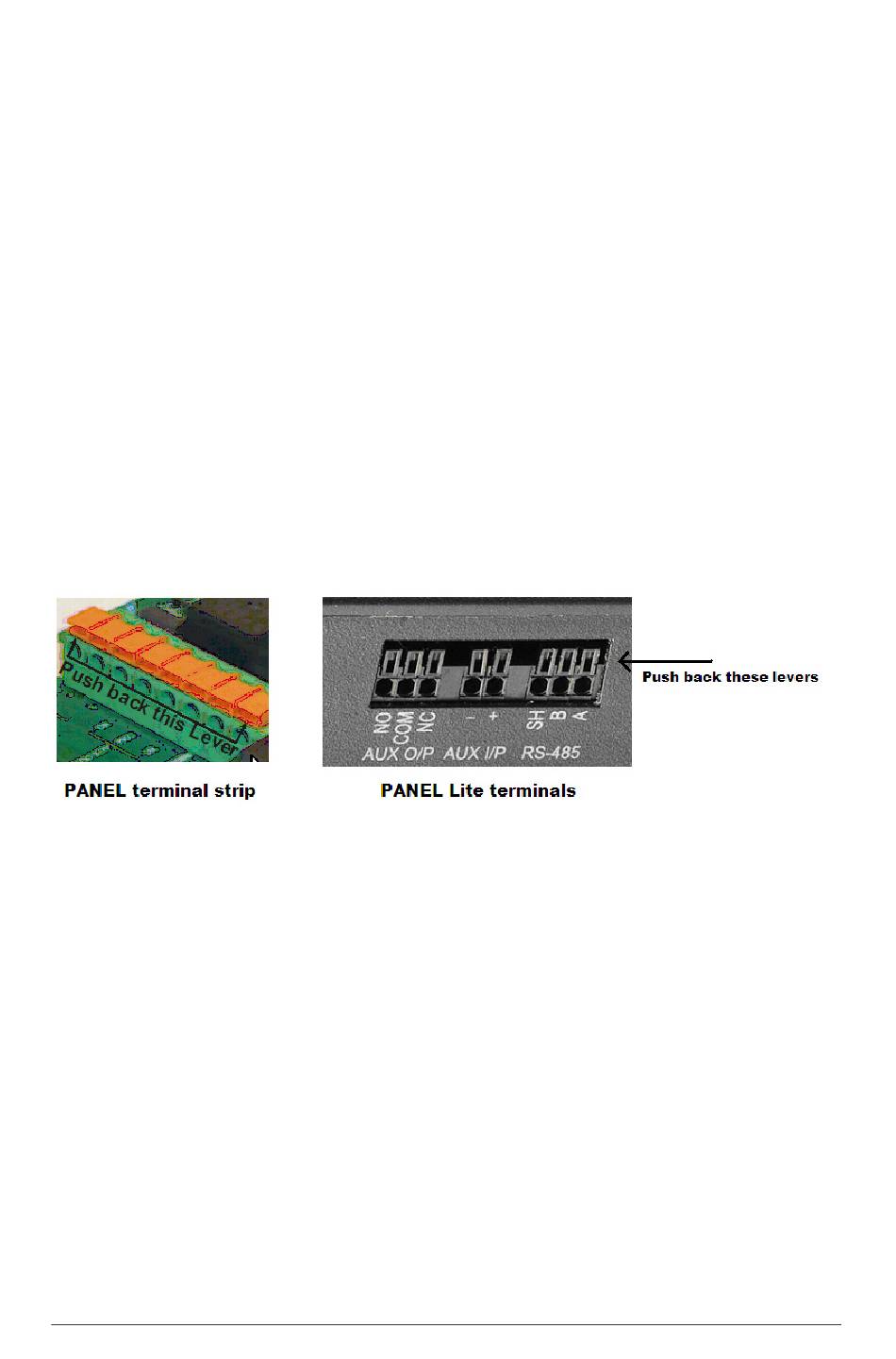

To connect the wires to the ports:
• Strip off about half a centimeter of the insulation of the wire ends.
• Push back the orange/black levers of the connector of appropriate port,
using a blunt pin or a small flat screw driver.
• Insert the stripped ends of the wires into the openings of the connector, with
one wire in each opening.
• Release pressure on the levers. The wires will be held in place by spring
clamp action
To remove the wires,
a. push back the levers.
b. pull out the wires gently.
c. release pressure on the levers.
