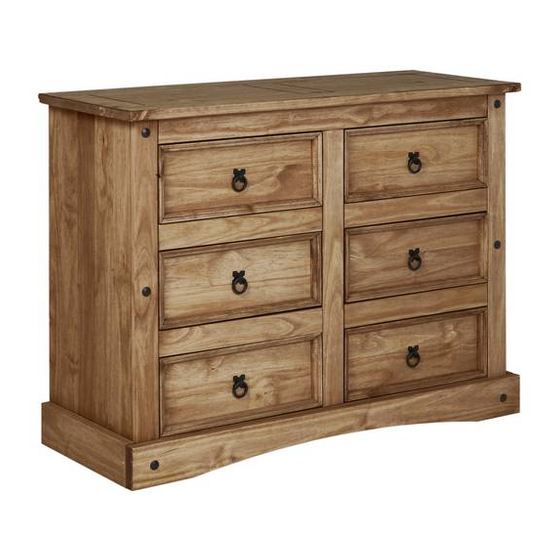

Puerto Rico - 3+3 Drawer Chest
Assembly Instructions
Dimensions
Width - 132cm
Depth - 48cm
Height - 104cm
Important –
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
- Please keep for future reference
Customer Helpline: 03456 400 800
368/9277
335/9246
Issue 1 - 01/10/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Puerto Rico 368/9277
Summary of Contents for Argos Puerto Rico 368/9277
- Page 1 Puerto Rico - 3+3 Drawer Chest Assembly Instructions - Please keep for future reference 368/9277 335/9246 Dimensions Width - 132cm Depth - 48cm Height - 104cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800 Issue 1 - 01/10/14...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly Check you have all the This product has been produced We do not components and tools listed on from natural timber; you may recommend the pages 2 and 3. notice some variation in the grain use of power and colour of different component...
- Page 3 Components - Panels Please check you have all the panels listed below underside 7 Smaller drawer front (52.8 x 19.5cm) 6 Larger drawer front (52.8 x 29cm) 1 Top panel (132 x 48cm) 9 Smaller drawer side (39 x 19.5cm) 8 Larger drawer side (39 x 29cm) 11 Smaller drawer back...
- Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 03456 400 800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 Assembly Instructions Step 1 Insert dowels into the indicated parts. Step 2 Fixing drawer runners. Attach 2 drawer runners to right side panel using screws Note: Leave top drawer runner assembly for later. Repeat above procedures for the left side panel and 2 drawer runners...
- Page 6 Assembly Instructions Step 3 Insert side panels. (Two people required for an easier assembly) Attention: Place front frame with its front facing down in a clean and free from damage surface. Fit right side panel and left side panel on the front frame Step 4 Fixing cross rail.
- Page 7 Assembly Instructions Step 5 Fixing blocks. (Two people required for an easier assembly) Place blocks between the two marks on the front frame shown. A ttach blocks into side panels using screws A ttach blocks into front frame using screws Step 6 Fixing middle drawer runner .
- Page 8 Assembly Instructions Step 7 Fixing back column . Fit back column at the middle drawer runners and cross rail Attach back column to the cross rail using screws Attach back column to the middle drawer runners using screws Step 8 Fixing top panel.
- Page 9 Assembly Instructions Step 10 Fix side plinths the side panels using screws Note: Make sure side plinths are aligned to the bottom and front edges of the side panels. Fix front plinth to the bottom front panel using screws Note: Make sure front plinth is aligned to the...
- Page 10 Assembly Instructions Step 12 Smaller drawer assembly. Attach drawer sides to the drawer front using screws Slide drawer bottom into slots on drawer sides and position drawer back in place. Holding the drawer back , press the drawer sides and fix them using screws Using bolt attach...
- Page 11 Assembly Instructions Step 14 Insert drawers into unit. With the back of the drawers past the front frames, use a hammer to tap dowels in flush to drawer sides. This is a safety catch to stop drawer falling out. Step 15 Fix round metal studs into the pre drilled holes in the top panel...
- Page 12 Assembly Instructions Step 16 Fixing to wall. Furniture must be fixed to Note: Wall plugs not supplied. a wall. Fix wall strap The correct type of fixing must top of furniture using be used for your wall, seek washer and screw professional advice if in doubt.
-
Page 13: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
