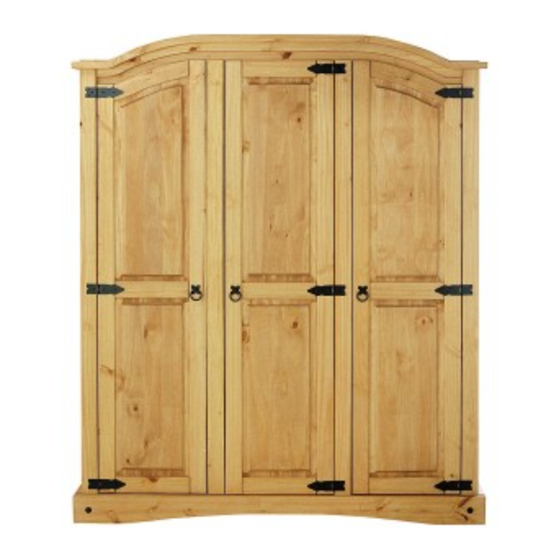

Puerto Rico - 3 Door Wardrobe

Assembly Instructions

Dimensions

Width - 158.8cm

Depth - 57cm

Height - 188cm

Important –

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the

- Please keep for future reference

Customer Helpline: 03456 400 800

332/6901

338/7012

Issue 1 - 01/10/14

Need help?

Do you have a question about the Puerto Rico 332/6901 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Puerto Rico 332/6901

Page 1 Puerto Rico - 3 Door Wardrobe Assembly Instructions - Please keep for future reference 332/6901 338/7012 Dimensions Width - 158.8cm Depth - 57cm Height - 188cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800 Issue 1 - 01/10/14...
Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly Check you have all the This product has been produced We do not components and tools listed on from natural timber; you may recommend the pages 2 and 3. notice some variation in the grain use of power and colour of different component...
Page 3 Components - Panels Please check you have all the panels listed below 8 Right front frame (178 x 6.5cm) underside 9 Left front frame (178 x 6.5cm) 20 Left shelf 1 Right side panel (177.3 x 53cm) (100.5 x 51.5cm) 10 Right middle front frame underside (167 x 6.5cm)
Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 03456 400 800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5 Assembly Instructions Step 1 Fixing right front frame. (Two people required for an easier assembly). Insert right side panel into right front frame through joints. Yes! Note: Before fixing the blocks into place it is important to ensure that the slot and groove of parts Attention: this are fully pushed together...
Page 6 Assembly Instructions Step 3 Fixing middle front frame. (Two people required for an easier assembly). Insert middle wall panel into right middle front frame through joints. Yes! Attention! Attention: Correct position out. Ensure to leave of middle front frame out before fixing.
Page 7 Assembly Instructions Step 5 Insert dowels into the indicated parts. Fix hanging rail supports in the pre marked holes on left side panel and middle wall panel using screws , as shown.
Page 8 Assembly Instructions Step 6 Fitting Metal dowels. Screw metal dowels into right side panel and left side panel Insert metal Note: dowels as far as shown. Do not over tighten. Step 7 Fitting Metal dowels. Screw metal dowels into both sides of middle wall panel Note: Insert metal...
Page 9 Assembly Instructions Step 8 Attention: Fixing base panel. Fit base panel to the middle wall panel then fix it using screws Attention! Round edge on base panel must be facing front. Step 9 Attention! Fixing shelves. With help, fit shelf fixed shelf to middle wall panel...
Page 10 Assembly Instructions Step 10 Fixing right side panel. Two people are required for an easier assembly. With help, place right side panel properly ensuring dowels are all fit into their holes at the same time. Insert 4 locking nuts into base panel and fixed shelf where shown.
Page 11 Assembly Instructions Step 12 Place left middle front frame properly ensuring dowels are all located into their holes. Attach left middle front frame to left shelf using screw Attach the block base panel and to the h orizontal front frame using screws Step 13 Fix curved top rail...
Page 12 Assembly Instructions Step 14 Fix side top mouldings to the sides using screws Attention: Ensure top mouldings are fixed in the correct position in a height from the top edge of the side panels. Attention: Step 15 Fix curved top moulding to the curved top rail using screws Note:...
Page 13 Assembly Instructions Step 16 Attention: Fixing top panel. Attach top panel the cabinet using screws and middle wall panel using screws Do not over tighten screws. Attention: Make sure top panel is completely pushed against the top moulding before fixing. Step 17 Attach the block top panel...
Page 14 Assembly Instructions Step 18 Fix side plinths the side panels using screws Note: Make sure side plinths are aligned to the bottom and front edges of the side panels. Fix front plinth to the bottom front frame using screws Chanfred edges to be facing up! Note: Make sure front...
Page 15 Assembly Instructions Step 20 Attach bottom support to the base panel using screws Step 21 Fitting hinges to the doors. Attach hinges to the pre drilled holes in the doors using screws...
Page 16 Assembly Instructions Step 22 Hanging doors. With help, centralise the door in the opening of the cabinet using the door spacer to ensure correct spacing, as shown. Fix hinges using screws as shown. Note: To ensure the alignment of the doors is correct, centralise the doors in the opening before attaching to the...
Page 17 Assembly Instructions Step 24 Hinge adjustment. To move doors up or down: loosen screws shown and move doors to suit. Once doors are aligned, re-tighten screws. To move doors left or right: loosen screws shown and move doors to suit. Re-tighten screws.
Page 18 Assembly Instructions Step 26 Fitting door locks. Screw clips in place using screws Ensure that the 2 small wheels are flush with the edge of the base as shown in the diagram. Insert plugs into clips , ensuring they are leveled as shown in the diagram.
Page 19 Assembly Instructions Step 27 Fixing back panels. Important: Cabinet MUST ‘square’ when back panels are attached. Make sure back panels are in flush with the edge of the top panel prior to fixing. Attach the left back panel first using nails Position profiles onto back panel (just attach).
Page 20: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
