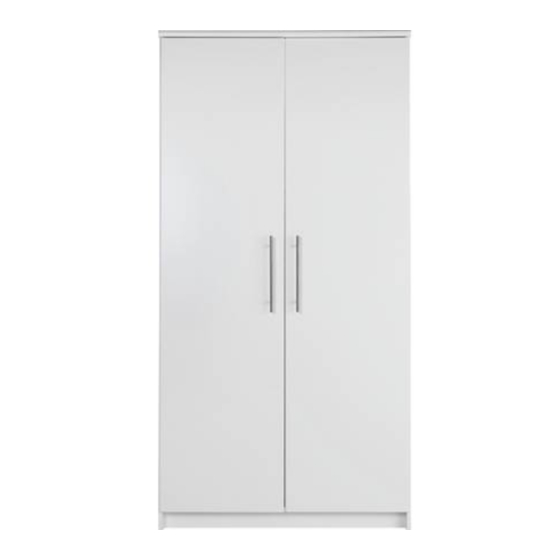

Normandy - 2 Door Tall Robe
Assembly Instructions -
Dimensions
Width - 100cm
Depth - 50cm
Height - 200cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Please keep for future reference
357/1505
274/3750
343/1023
268/9986
327/8987
258/2588
MADE IN
BRITAIN
Issue 6 - 03/03/15
Advertisement
Related Manuals for Argos Normandy 2 Door Tall Robe 357/1505
Summary of Contents for Argos Normandy 2 Door Tall Robe 357/1505
- Page 1 Normandy - 2 Door Tall Robe Assembly Instructions - 274/3750 357/1505 Please keep for future reference 268/9986 343/1023 258/2588 327/8987 Dimensions Width - 100cm Depth - 50cm MADE IN Height - 200cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 Issue 6 - 03/03/15...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 60kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the panels listed below (D2057A) (999 x 496mm) Base (D2058A) (965 x 470mm) Left Side Right Side (D2048C) (D2049C)
-
Page 4: Tools Required
If you have damaged or missing components, call the Components - Fittings Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. - Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 03456 400800 quoting the reference numbers below Step 1 Prepare the left side Screw 4 metal dowels into the left side Note: Tighten metal dowels up fully against the panel.
- Page 6 Assembly Instructions Step 2 Prepare the right side Screw 4 metal dowels into the right side Insert 2 large locking These 2 holes nuts into the right are not used side Fit 4 hinge plates onto the right side , making sure that the slot is facing towards the finished front edge.
- Page 7 Assembly Instructions Step 4 Fit the base to the right side Push the base onto the right side Use a screwdriver to tighten the 2 large Finished locking nuts fitted to front edge the base Note: Turn the large p l a i n c locking nuts as far as...
- Page 8 Assembly Instructions Step 6 Fit the plinth Push the plinth onto the right side Use a screwdriver to tighten the large locking fitted to the plinth Step 7 Prepare the back rail Finished Insert 2 large locking front edge nuts into the back rail Tap 2 wooden dowels into the back rail...
- Page 9 Assembly Instructions Step 8 Fit the back rail to the left side Finished front edge Push the back rail onto the left side Use a screwdriver to Finished tighten the large locking front edge fitted to the back rail Step 9 Fit the left side Push the left side onto the base...
- Page 10 Assembly Instructions Step 10 Prepare the top Screw 4 metal dowels into the top Rounded front edge Step 11 Fit the top and plastic nails Push the top onto the assembly. Use a screwdriver to tighten the 4 large locking nuts fitted to the left side and right...
- Page 11 Assembly Instructions Step 12 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y.
- Page 12 Assembly Instructions Step 14 Fit the shelves Shelf Position 1 Insert 4 shelf studs position 1or 2 for the shelf Lower the shelf down onto the shelf studs Shelf Position 2 Step 15 Prepare the 2 doors Push fit 4 hinges into each of the doors Secure each hinge with...
- Page 13 Assembly Instructions Step 16 Fit doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 14 Assembly Instructions Step 17 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 15 Assembly Instructions Step 18 Attach bracket to top To prevent possible overbalancing, we recommend that this unit is secured to a suitable wall by use of the bracket fitted to the top of the unit. Fixings are not supplied, as they will need to suit the wall type and the length of screw will depend on the distance...
- Page 16 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3004...
