FLIR DM284 Quick Start Manual

WORK SAFER AND SMARTER
Thermal Imaging allows you to quickly scan for
overheating system components, then use the DMM
test functions to troubleshoot and diagnose the fault
• Identify energized and faulty equipment
from a safe distance with non-contact
temperature measurement
• Streamline inspections and simplify data
collection, sharing, and reporting by
wirelessly connecting to the FLIR InSite
professional workflow management tool*
• Save electrical parameter data and thermal
images with onboard data storage*
TROUBLESHOOT CHALLENGING
PROBLEMS EFFECTIVELY
Fully loaded with features for high
and low voltage applications
• Solve challenging problems with the 18-function
DMM including VFD mode, True RMS, LoZ,
NCV, a built-in worklight, and laser pointer
• Measure voltage, current, frequency, resistance,
continuity, diode, capacitance, and temperature
• Operate easily with an intuitive menu system
I N D U S T R I A L I M A G I N G M U L T I M E T E R S

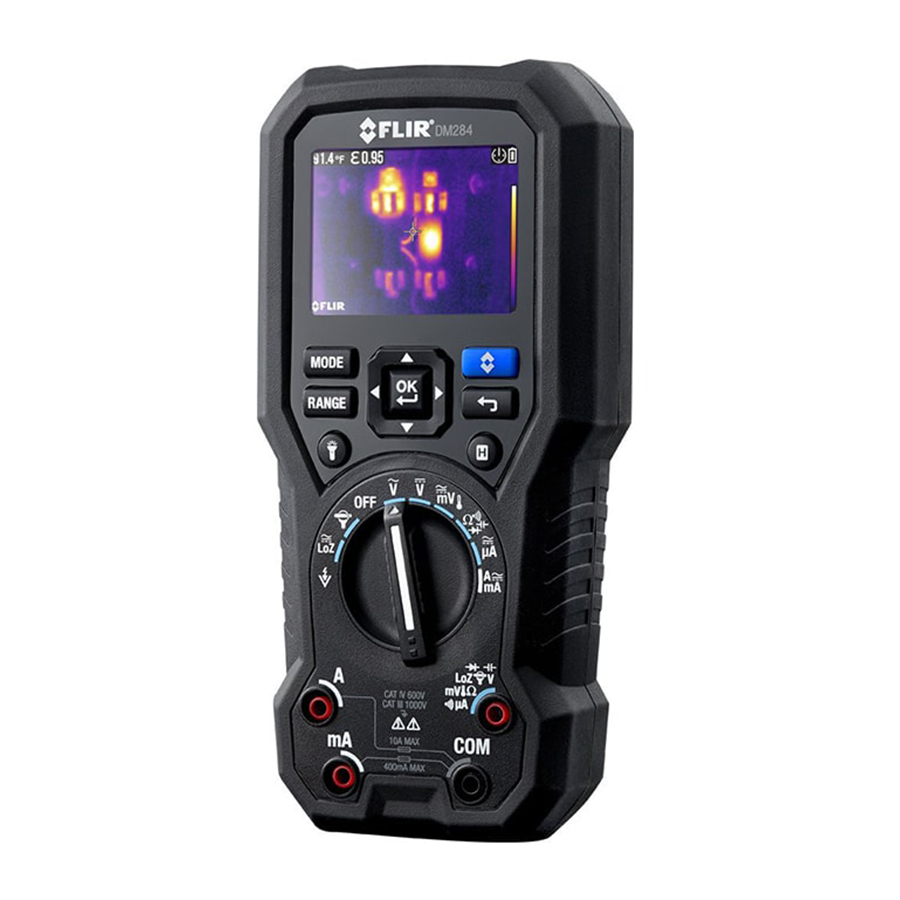

FLIR DM284/285
The FLIR DM284 and DM285 are industrial, all-in-one True
RMS digital multimeters and thermal imagers that can
show you exactly where a hot spot or temperature anomaly
is for faster troubleshooting. Featuring Infrared Guided
Measurement (IGM ) powered by a built-in 160 x 120
™
FLIR thermal imager, the meters visually guide you to the
precise location of a problem. You'll pinpoint issues faster,
more safely, and efficiently. Both multimeters are ideal for
inspecting industrial-electrical, mechanical, HVAC/R, and
electronic systems, and can be used for both benchtop
electronics or in the field.
The DM285 uniquely features Bluetooth® which enables
wireless data transfer by connecting to the FLIR Tools
Mobile app on compatible mobile devices. The DM285
is also compatible with the new FLIR InSite™ workflow
management tool that allows you to prepare efficient survey
routes, maintain accurate documentation, share information
with clients, and file instant reports.
flir.com/IGM-Multimeters

DESIGN AND FUNCTIONALITY

An all-in-one tool that's built to last
• Rely on the meters' drop-tested
durability in any working condition
• Change the battery quickly and easily with
the 'no tool' battery compartment*
• See readings clearly on the TFT display
with a wide viewing angle*
*DM285 Only.
