3

INSTALLATION PROCEDURES

This section details the installation of the RSTAR Affinity data logger's
components.
3.1 I
NSTALLATION
The following are the tools you need to install the data logger:



3.2 C
ONNECT THE
NOTE: The cable gland seals the connection and protects the data logger
from moisture and contamination. It accepts instruments with ½" (12.70 mm)
diameter cables.
To connect the cable gland to the data logger, complete the following steps:
1. Unscrew the front cover of the data logger using a screwdriver to access the
2. Remove the cable gland assembly from the enclosure.
PSM0003A
T
OOLS
number 2 Phillips head screwdriver
2 mm flat head screwdriver
20 mm open wrench or an optional gland wrench available from RST
C G
ABLE LAND

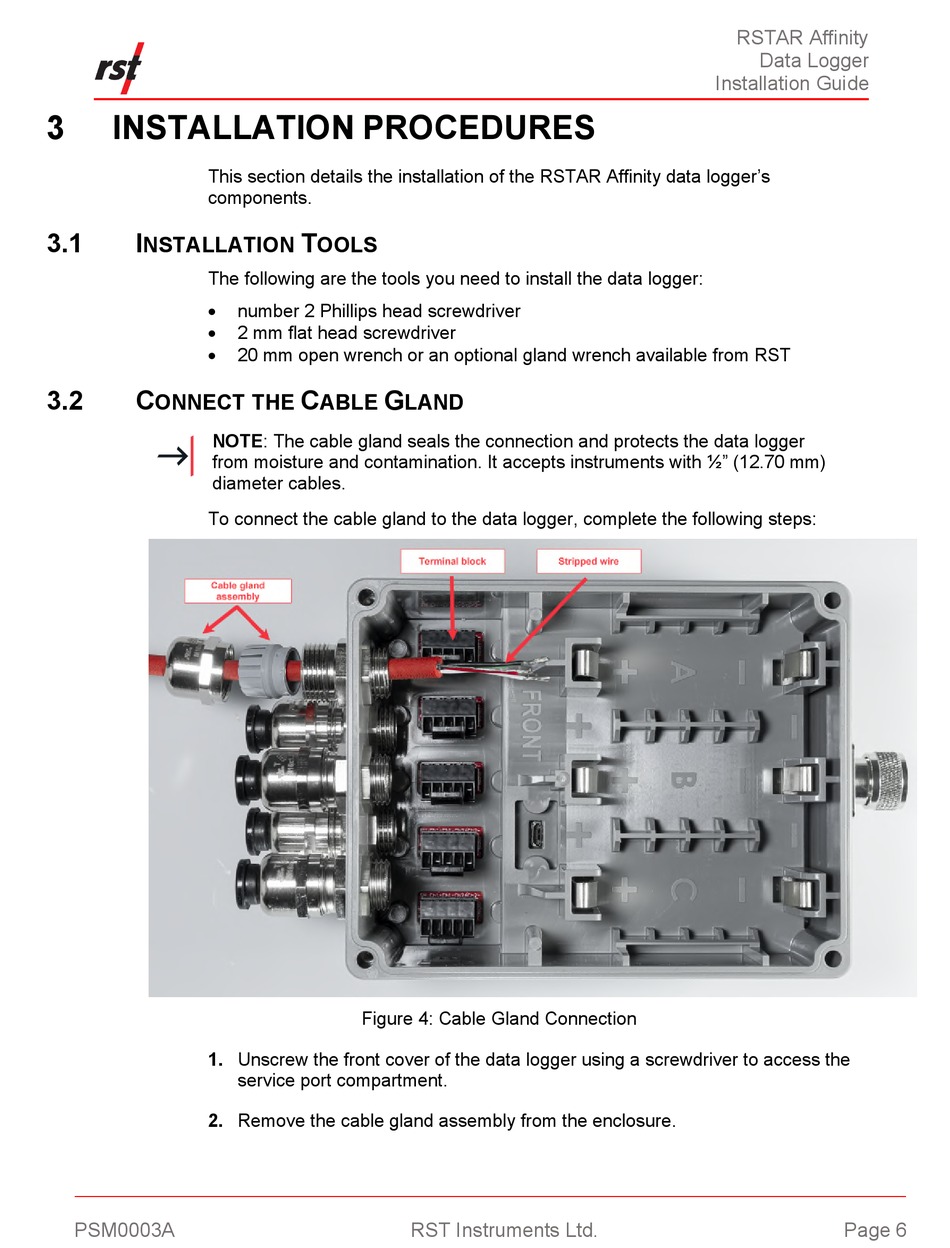

Figure 4: Cable Gland Connection

service port compartment.
RST Instruments Ltd.
RSTAR Affinity
Data Logger
Installation Guide
Page 6
