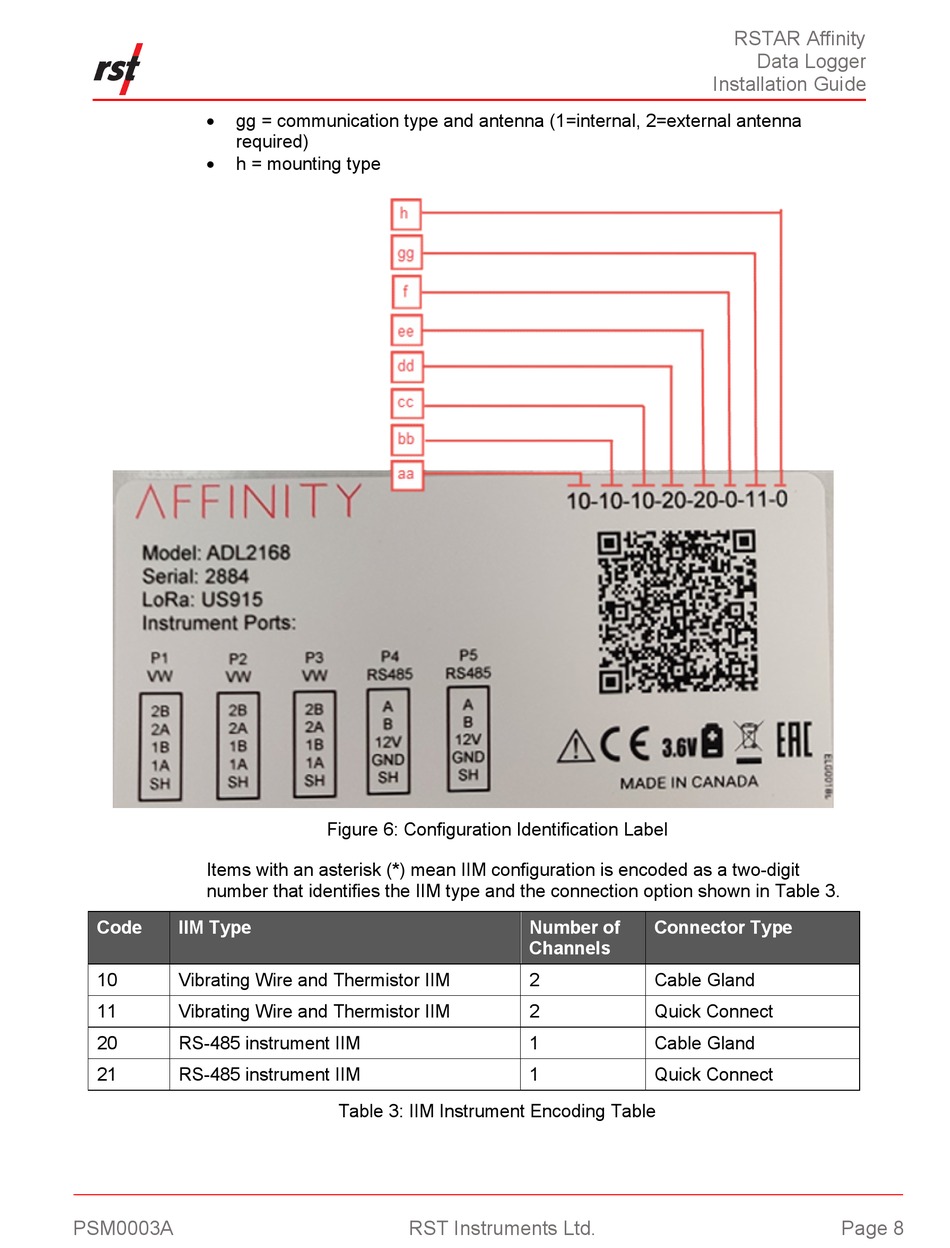

Figure 6: Configuration Identification Label; Table 3: Iim Instrument Encoding Table - RST Instruments RSTAR Affinity Installation Manual


gg = communication type and antenna (1=internal, 2=external antenna
required)

h = mounting type
Items with an asterisk (*) mean IIM configuration is encoded as a two-digit
number that identifies the IIM type and the connection option shown in Table 3.
Code IIM Type
10 Vibrating Wire and Thermistor IIM
11 Vibrating Wire and Thermistor IIM
20 RS-485 instrument IIM
21 RS-485 instrument IIM
PSM0003A

Figure 6: Configuration Identification Label

Table 3: IIM Instrument Encoding Table

RST Instruments Ltd.
Number of Connector Type
Channels
2 Cable Gland
2 Quick Connect
1 Cable Gland
1 Quick Connect
RSTAR Affinity
Data Logger
Installation Guide
Page 8
