3.5 I
NSTALL THE
Keep in mind when installing the data logger that although it is designed to
withstand harsh environmental conditions and its IP67-rated enclosure is dust-
tight and weather-resistant, it can be exposed to elements such as rain and
splashes of water but cannot be submerged in liquid.
Options for installing or mounting the data logger include the following:




3.5.1

Pole Mount Option

To mount the data logger on a pole, complete the following steps:
1. Remove the four screws from the back of the data logger.
2. Install the back plate using the same four screws. Tighten the screws.
3. Thread the hose clamps through the top and bottom slots on the back plate.
4. Wrap the hose clamps around the pole and tighten the screws.
PSM0003A
D L
ATA OGGER
Pole mount – for use on a pole with diameter between from and 120 mm (5")
and 254 mm (10")
Wall mount – for use on a flat wall or panel
Magnet mount – for use on a magnetic wall or panel
Secondary enclosure mount – for use within a secondary enclosure

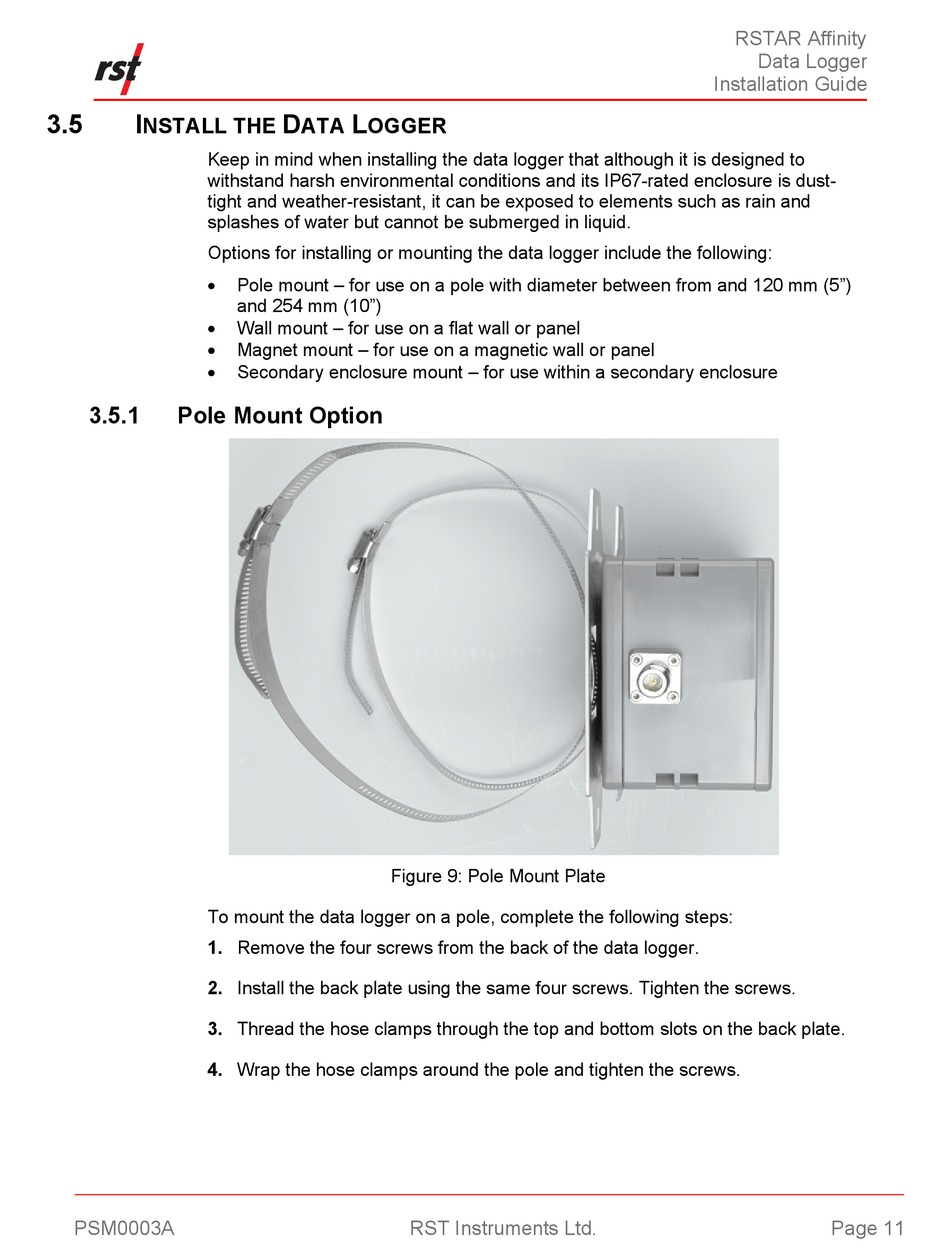

Figure 9: Pole Mount Plate
