RSTAR Affinity
Data Logger
Installation Guide

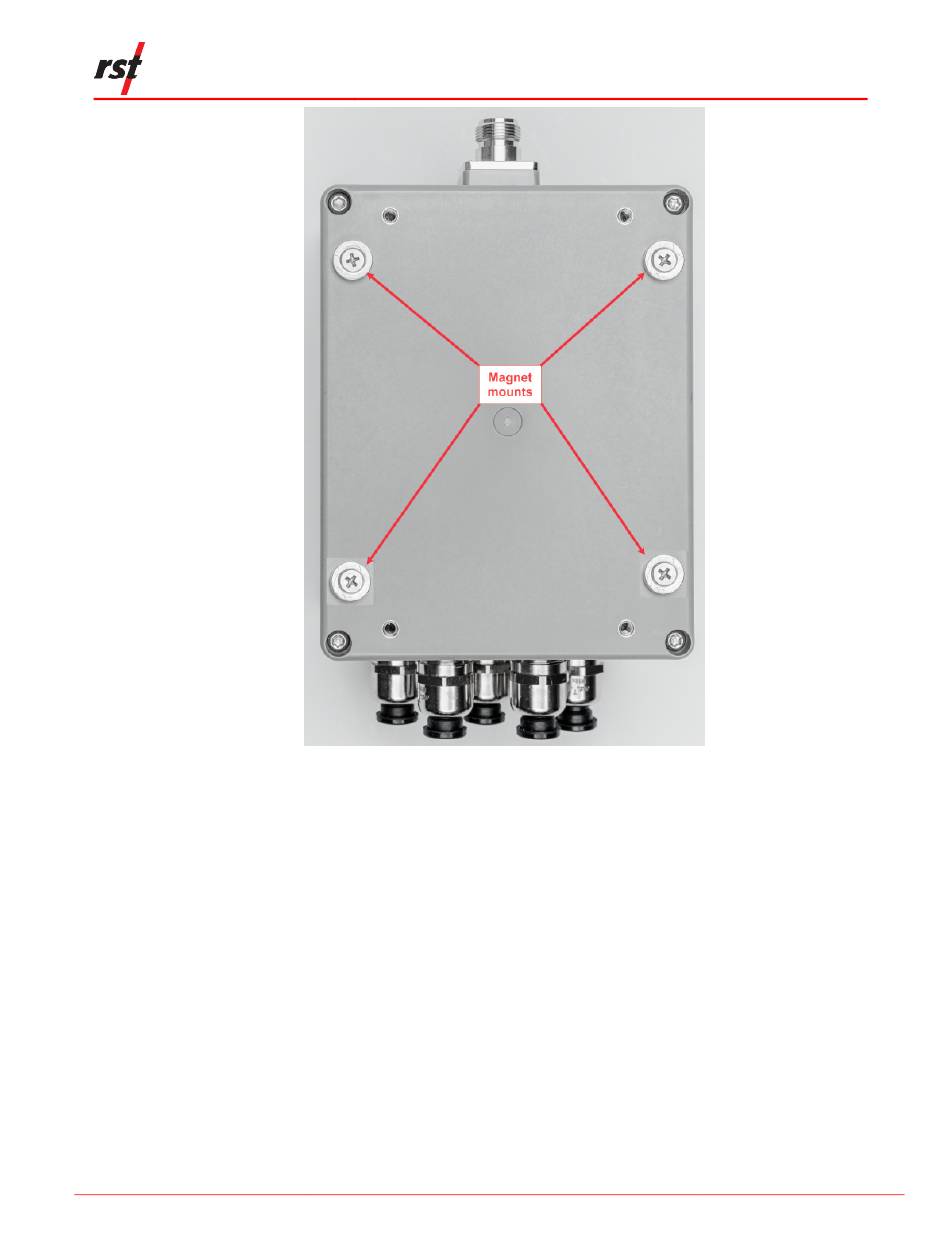

Figure 11: Magnet Mounts
To install the data logger using the magnet, complete the following steps:
1. Remove any screw from the back of the data logger used on previous
installations.
2. Screw the magnets as shown in the picture. Tighten the screws.
3. Mount the data logger on a magnetic surface.
3.5.4
Mount to a Secondary Enclosure
Radio signals are affected by electrically conductive material that may absorb or
reflect radio signals. If you're using a secondary enclosure that is electrically
conductive, you can extend the external antenna and mount it outside the
enclosure to allow for better signal.
PSM0003A
RST Instruments Ltd.
Page 13
