3.5.2

Wall Mount Option

NOTE: You will need to supply your own screws to mount the data logger to
a wall.
To mount the data logger to a wall, complete the following steps:
1. Remove the four screws from the back of the data logger.
2. Install the back plate using the same four screws. Tighten the screws.
3. Install the wall mount plates using the provided screws. Tighten the screws.
4. Mount the data logger to a wall.
3.5.3

Magnet Mount Option

The magnetic mount option uses four ring magnets with an attraction force of 10
pounds screwed to the rear panel of the data logger.
PSM0003A

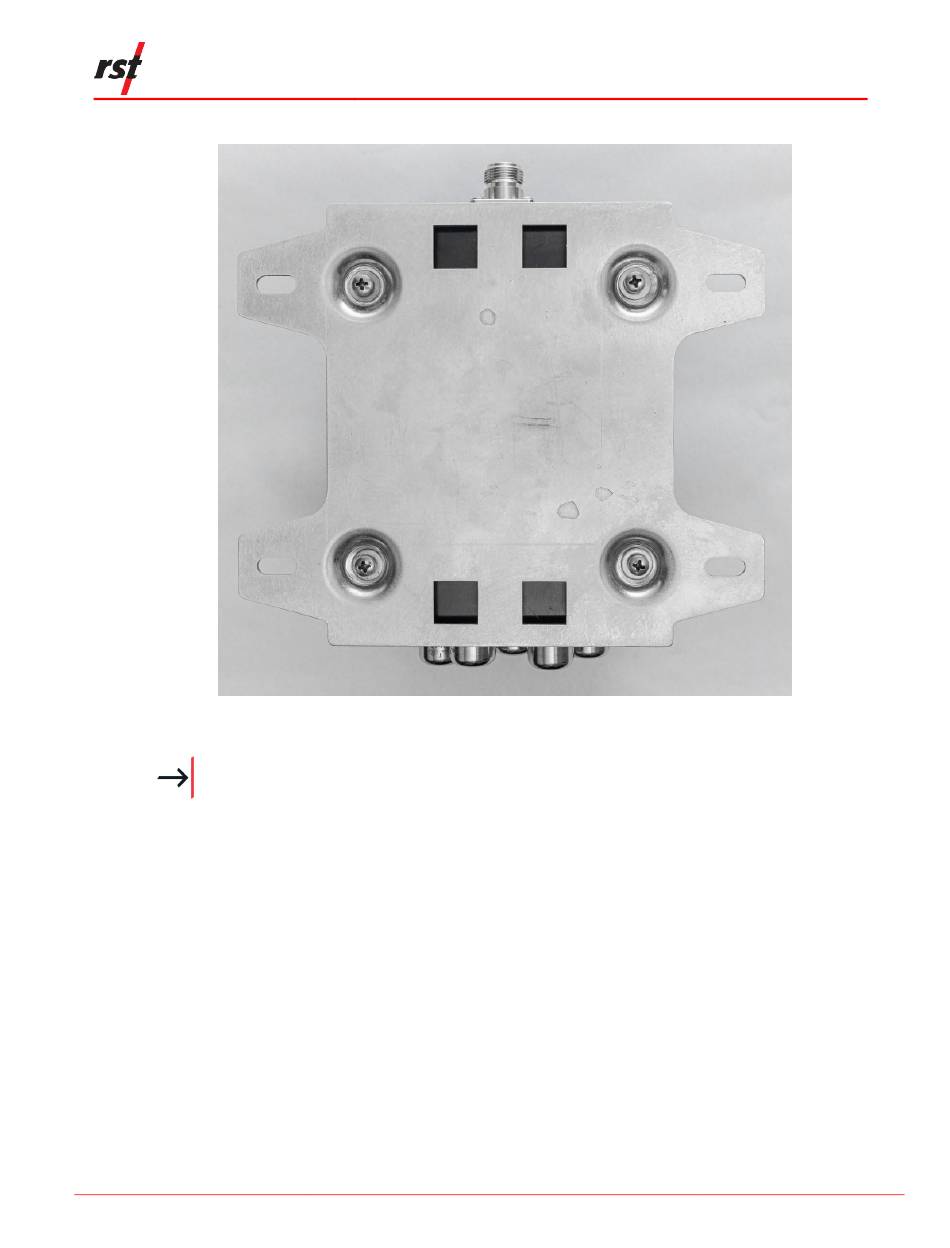

Figure 10: Wall Mount Plate
