The dashboard also has automatic and transparent field calculations, alarm
functionality, and a unique relative elevation mapping feature, along with user
management. The open API supports integration with third-party data
management and presentation software.
1.6 RSTAR A
The RSTAR Affinity field app is a mobile application has account-based sign-in to
ensure security and traceability through a built-in audit trail. Bluetooth
connectivity and a QR code scanner make for quick, easy, and accurate
instrument installation and commissioning, saving an average of four hours per
sensor and eliminating human error during setup.
2

SYSTEM OVERVIEW

2.1 E
NCLOSURE
The RSTAR Affinity data logger enclosure is designed with a detachable front
cover to allow work on the wiring terminal blocks, batteries, and micro-USB
diagnostic port. The antenna connector is on the top of the enclosure while the
instrument interface module (IIM) ports are on the bottom.
NOTE: Use of the micro-USB is restricted to RST service personnel.
PSM0003A
F A
FFINITY IELD PP

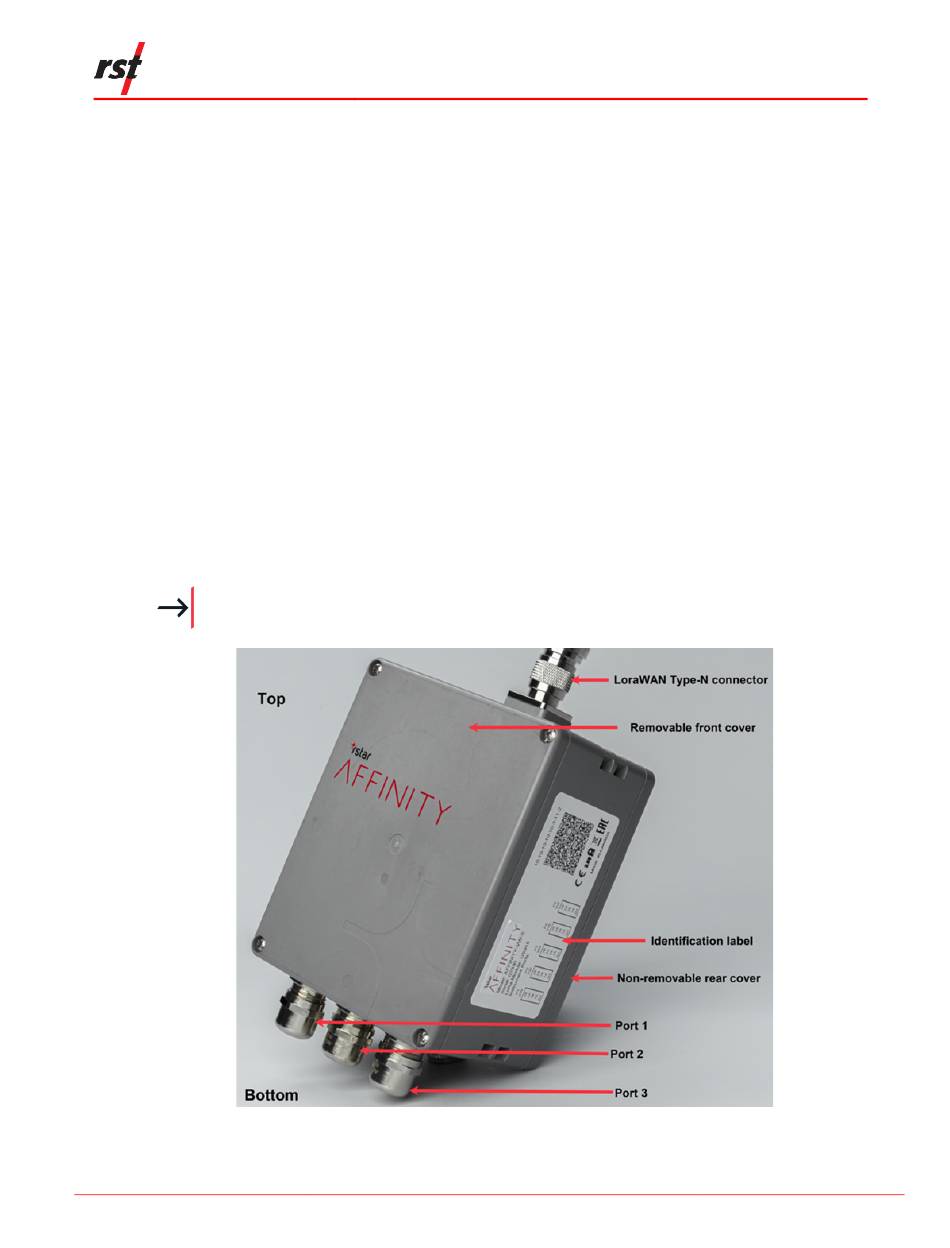

Figure 2: Enclosure and Components

RST Instruments Ltd.
RSTAR Affinity
Data Logger
Installation Guide
Page 3
