3.2.2

QR Identification Code

The QR code in the data logger contains the following configuration information:









3.3 I
NSTALL OR
Depending on the destination country, a data logger may or may not have
factory-installed Li-SOCl₂ D cell batteries. If it has factory-installed batteries, you
have to remove the insulating pull tabs which prevents the batteries from
energizing during shipping and storage.
The data logger has three battery compartments labelled as A, B and C. The
data logger detects batteries in the compartments and uses the first available
battery in the sequence. The data logger continuously monitors battery
consumption over time, disables the depleted battery and enables the next
available battery in the sequence.
To install batteries on the data logger, complete the following steps:
1. Unscrew the data logger's front cover to access the service port
PSM0003A
ID – data logger serial number
P1 – port 1 IIM type and description
P2 – port 2 IIM type and description
P3 – port 3 IIM type and description
P4 – port 4 IIM type and description
P5 – port 5 IIM type and description
Band – LoRaWAN frequency band
Antenna – internal or external
Battery – number of batteries installed
R B
EPLACE ATTERIES

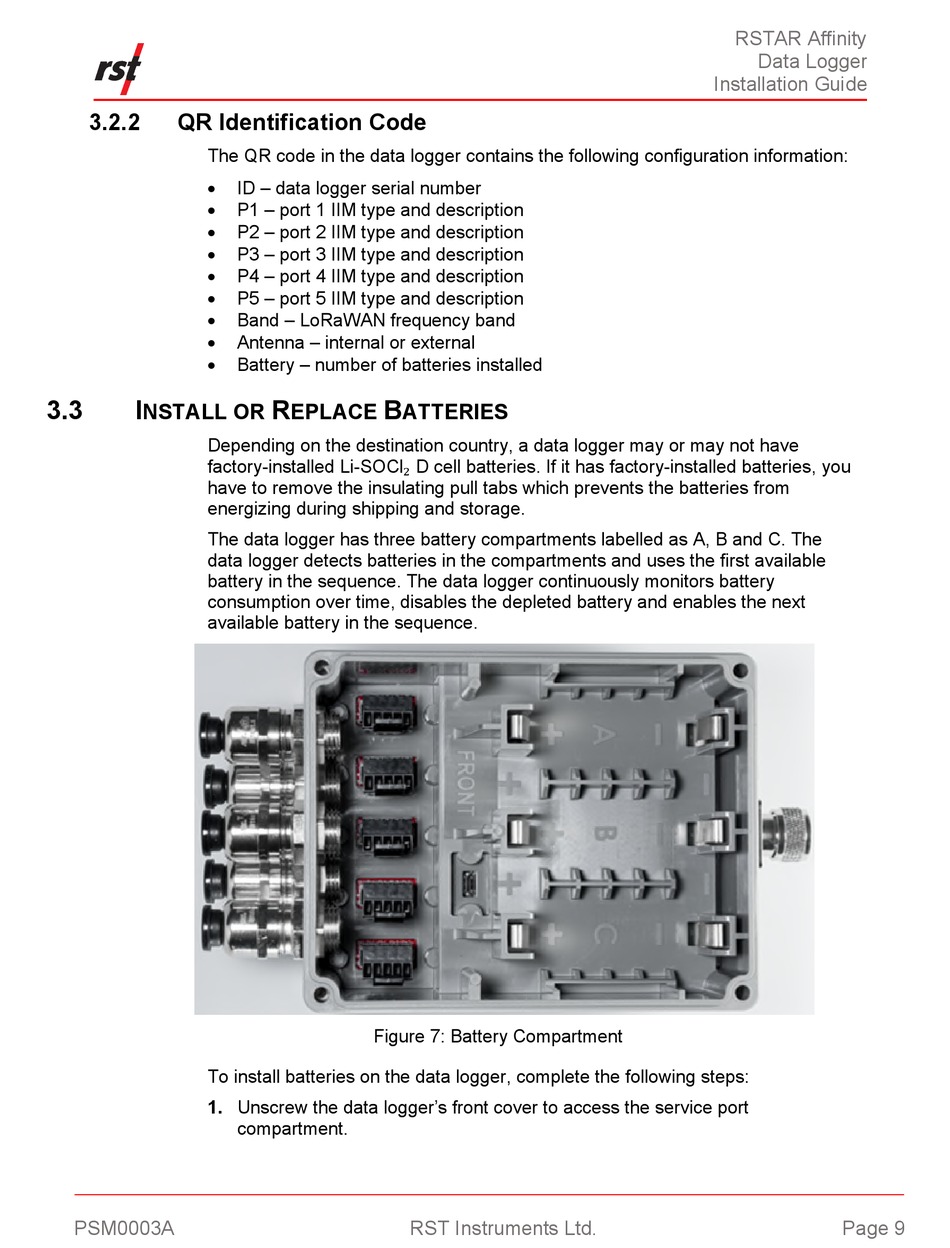

Figure 7: Battery Compartment

compartment.
RST Instruments Ltd.
RSTAR Affinity
Data Logger
Installation Guide
Page 9
