Summary of Contents for Kramer TP-576

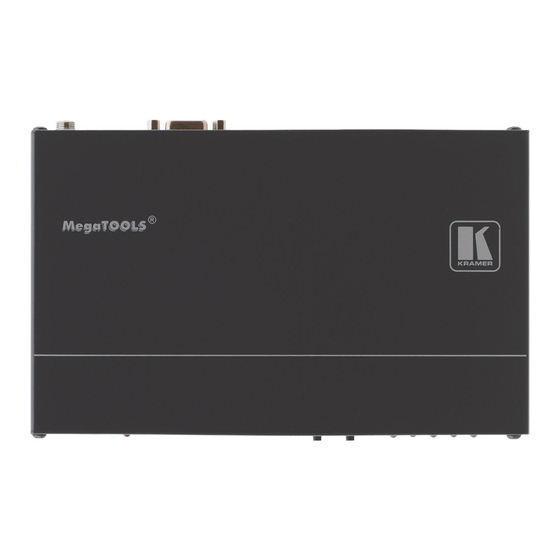

- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: TP-576 HDMI CAT5 Line Driver...
-
Page 2: Table Of Contents
Kramer Protocol 2000 Figures Figure 1: TP-576 HDMI /CAT 5 Line Driver Figure 2: Connecting a TP-576 HDMI / CAT5 Line Driver Figure 3: TP-576 RS-232 Signals Figure 4: TP-576 IR Control – Example I Figure 5: TP-576 IR Control – Example II Figure 6: TP-576 IR Control –... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from the Internet 3 The complete list of Kramer cables is on our Web site... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
1 Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions 2 Compatible with a Kramer transmitter and via a Kramer external remote receiver: C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE... -
Page 6: Using Twisted Pair Cable
• LEDs indicating the selected input and active output LED indicators The TP-576 is 12V DC fed and is housed in a MegaTOOLS® enclosure where two units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter. -
Page 7: About Hdmi
Overview About HDMI High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital audio/video interface, widely supported in the entertainment and home cinema industry. It delivers the highest high-definition image and sound quality. In particular, HDMI • Provides a simple interface between any audio/video source, such as a set-top box, DVD player, or A/V receiver and video monitor, such as a digital flat LCD / plasma television (DTV), over a single lengthy cable... -
Page 8: Defining Edid
270 feet (90 meters) from the TP-576. The Power Connect™ feature applies as long as the cable can carry power. The distance does not exceed 90 meters on standard CAT 5... -
Page 9: Your Tp-576 Hdmi / Cat 5 Line Driver
12V DC +12V DC connector for powering the unit 1 This LED also illuminates or blinks During EDID setup (see section 2 Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE... -
Page 10: Using The Tp-576 Hdmi / Cat 5 Line Driver
6. An IR emitter or sensor to the IR 3.5mm mini jack connector (see section 5.3). 1 See section 2 Using the Kramer BC-DGKat524 or BC-DGKat623 cable, respectively 3 To power the TP-576 as well as the TP-573 and TP-574 KRAMER: SIMPLE CREATIVE TECHNOLOGY... - Page 11 RS-232 port of the TP-573 and a PC to the RS-232 port of the TP-574 8. The CAT 5 or CAT 6 cable from the TP-576 to the LINE IN RJ-45 twisted pair connector. 9. The 12V DC power supply to the TP-576 (not shown in Figure 1 See section...
-
Page 12: Figure 2: Connecting A Tp-576 Hdmi / Cat5 Line Driver
Using the TP-576 HDMI / CAT 5 Line Driver Figure 2: Connecting a TP-576 HDMI / CAT5 Line Driver KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 13: Using The Rs-232 Ports To Control A Device Via A Pc
To connect to the TP-576 via RS-232, connect the RS-232 9-pin D-sub rear panel port on the TP-576 unit via a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 need to be connected) to the RS-232... -
Page 14: Connecting An Ir Emitter/Sensor
Using the TP-576 HDMI / CAT 5 Line Driver Connecting an IR Emitter/Sensor The TP-576 consists of an IR receiver and a REMOTE IR 3.5mm mini jack connector that can connect to either an emitter or receiver. In a transmitter-receiver configuration that includes, for example, the... -
Page 15: Figure 5: Tp-576 Ir Control - Example Ii
Point the LCD display remote controller either to the IR sensor of the TP-573 or the IR receiver window of the TP-576 to control the LCD display. Point the Kramer remote controller to IR receiver window of the TP-576 to control the TP-576. -
Page 16: Figure 6: Tp-576 Ir Control - Example Iii
DVD 2 player (that is connected to the TP-576). In addition, an IR emitter is attached to the DVD 2 player that is connected to the TP-576. Once an IR emitter is connected to the IR REMOTE 3.5mm mini jack connector, IR control on the TP-576 becomes local. -
Page 17: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
Using the TP-576 HDMI / CAT 5 Line Driver Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors Table 2 Figure 7 define the STP CAT 5 PINOUT , using a straight pin-to-pin cable with RJ-45 connectors (note, that the cable Ground... -
Page 18: Acquiring The Edid
1 This is usually done only once, when the machine is being set up in an installation Once acquired, the EDID is saved in non-volatile memory and further acquisition is not necessary 2 The TP-576 reads the EDID, which is stored in the non-volatile memory 3 The local output and the output on the transmitter... -
Page 19: Default Edid
Default EDID To enable deep color and acquire EDID: 1. Disconnect the power. 2. Connect the output or outputs from which you want to acquire the EDID. 3. Connect the power while pressing the INPUT SELECT button. 4. Perform steps 3 and 4 in section 5.5. Default EDID Monitor [Real-time 0x0031] Model name.... -
Page 20: Technical Specifications
, Kramer BC-DGKat524 (CAT 5 24AWG), BC-DGKat623 (CAT 6 23AWG) and BC-DGKat7a23 (CAT 7a 23 AWG) cables, HDMI/HDMI male-to-male cables Default Communication Parameters Table 4 lists the default communication parameters for the TP-576. Table 4: Default Communication Parameters RS-232 Protocol 2000 Baud Rate:... -
Page 21: Kramer Protocol 2000
Kramer Protocol 2000 Kramer Protocol 2000 This RS-232 communication protocol uses four bytes of information as defined below. The default data rate is 9600 baud, with no parity, 8 data bits and 1 stop bit. Table 5: Protocol Definitions DESTI-... -
Page 22: Table 6: Instruction Codes For Protocol 2000
16X16 matrices are configured to make a 48X32 system (48 inputs, 32 outputs), the reply to the HEX code 82 (ie request the number of outputs) would be HEX codes ie 16 outputs KRAMER: SIMPLE CREATIVE TECHNOLOGY... - Page 23 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 24 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
