Kramer TP-580CT Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
TP-580CT 4K USB Transmitter
1 Power adapter and cord

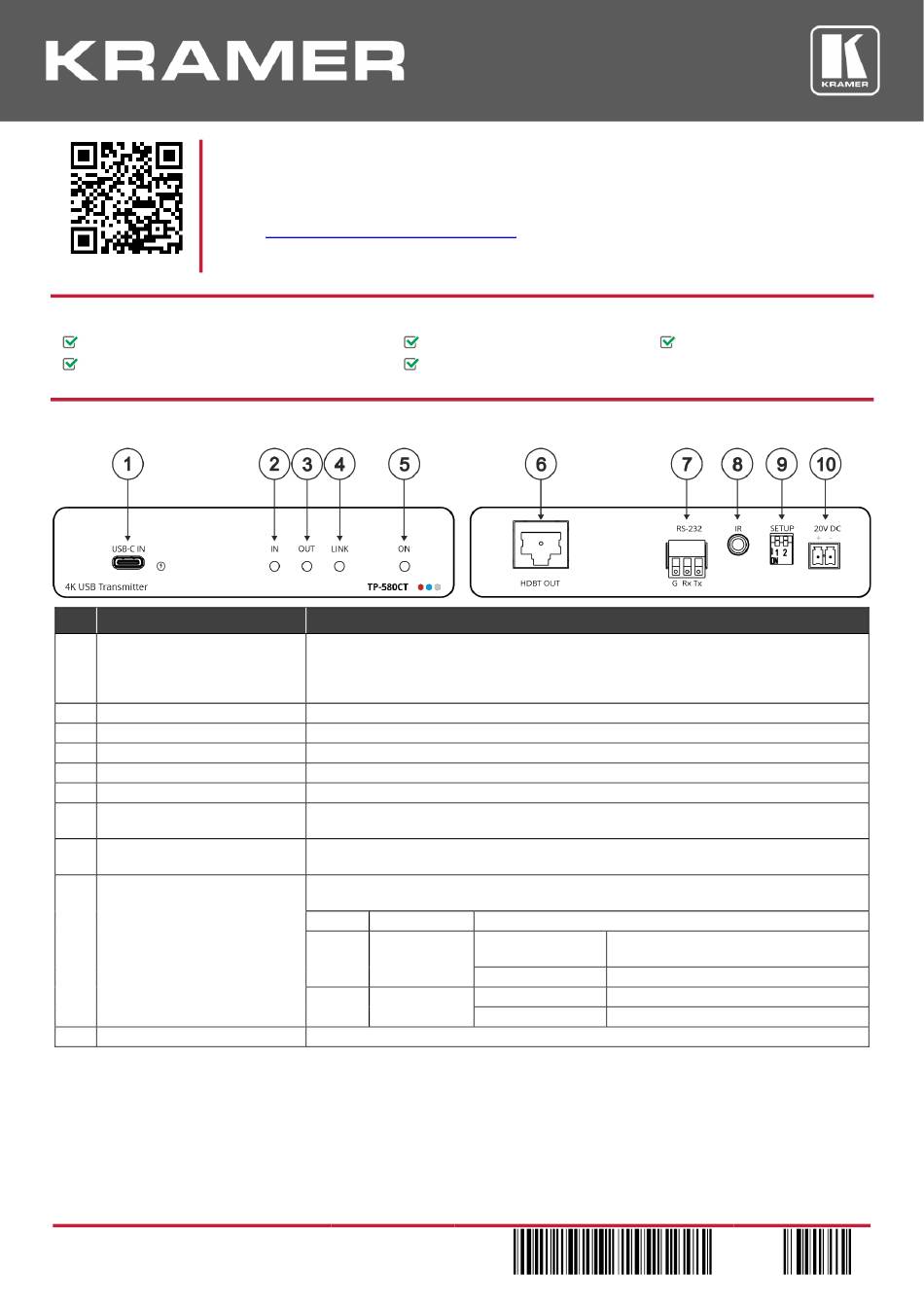

Step 2: Get to know your TP-580CT
# Feature
1 USB-C IN Connector
2 IN LED
3 OUT LED
4 LINK LED
5 ON LED
6 HDBT OUT RJ-45 Connector
7 RS-232 3-pin Terminal Block
Connector
8 IR 3.5mm Mini Jack
9 SETUP DIP-Switches
10 20V DC
TP-580CT Quick Start
TP-580CT Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/TP-580CT
upgrades are available.
Function
Connect to a USB-C AV source (that supports DisplayPort Alternate Mode). Charges
sources (that support USB Power Delivery 2.0) up to 60W.
While charging, the charging icon (to the right of the connector) becomes visible and
lights orange.
Lights blue when a USB-C input device is connected.
Lights blue when an HDMI output device is detected on the receiver side.
Lights green when the HDBT connection is active.
Lights green when receiving power.
Connects to the HDBT IN RJ-45 connector on a receiver (for example, TP-580R).
Connects to a PC/serial controller to control the remote controlled unit (for example, the
display on the receiver).
Bidirectional IR connection. Outputs a received IR signal (from the HDBT receiver) to
connected IR emitter or transmits an IR signal (from IR sensor) to the HDBT receiver.
Set DIP-switches. By default, DIP-switches are set to OFF (up). Changes in DIP-switch
settings apply immediately.
DIP # Description
1 IR output
modulation
2
+20V DC 6A connector for powering the unit and charging the connected input device.
TP-580CT for the first time.
to download the latest user manual and check if firmware
1 Bracket set
4 Rubber feet
State
OFF (up) – default
ON (down)
OFF (up) – default
ON (down)
P/N: 2 9 0 0 - 3 0 1 4 8 4 QS
1 Quick start guide
IR pass-through is disabled (38KHz
modulation to IR output signal is added).
IR pass-through is enabled.
Normal operation.
FW upgrade via RS-232 is enabled.
Rev: 1
