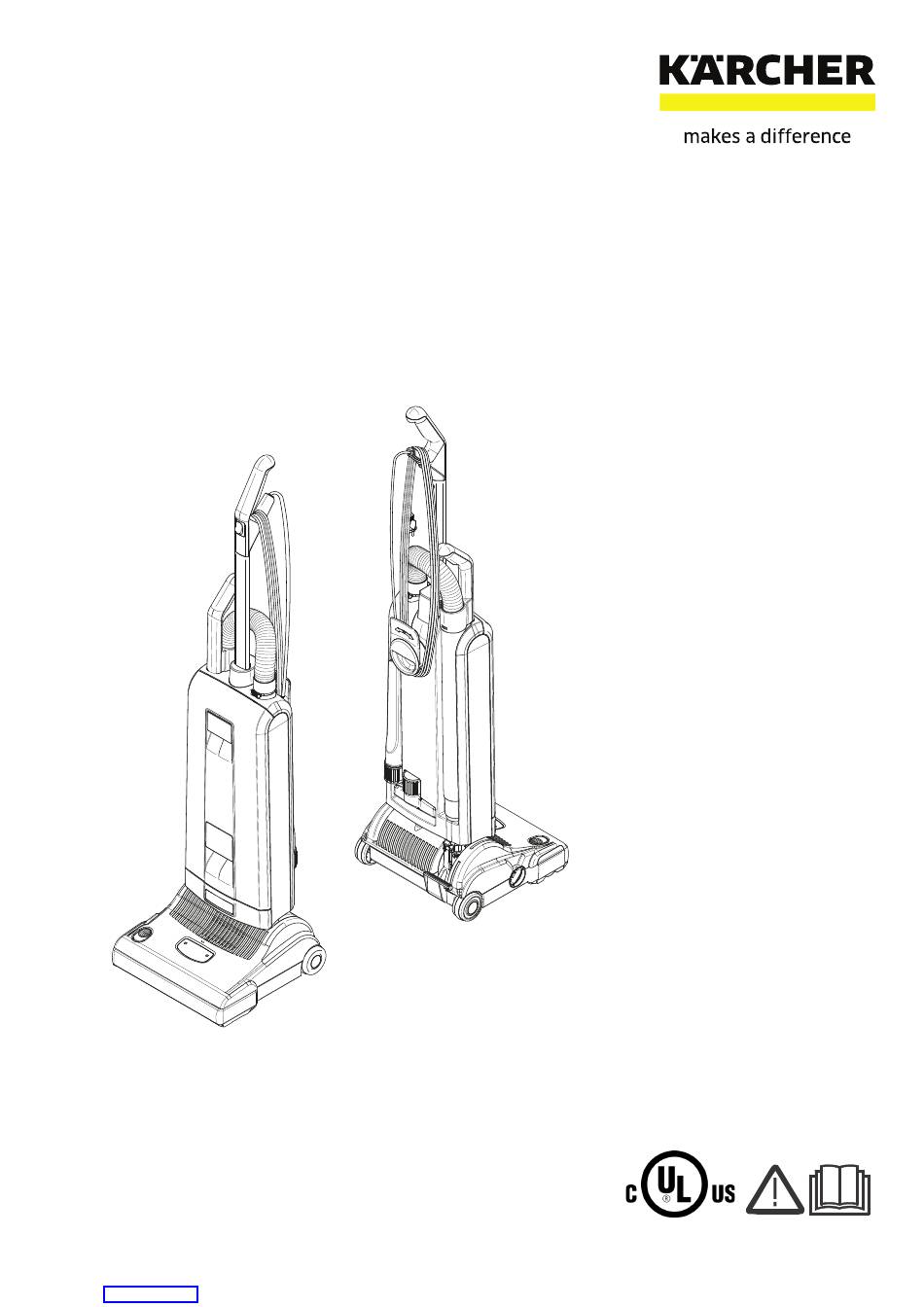

- Page 1 Sensor 12 Vacuum Operating instructions (ENG) MODELS: 1.012-615.0 From Serial No. # G547001011 If Serial Number not listed, Contact Manufacturer 04/01/20 86435530-B Downloaded from ManualsNet.com search engine...
-
Page 2: Machine Data Label
Your registration will allow us to serve you better over the lifetime of the product. To register your product go to : http://warranty.karcherna.com For customer assistance: 1-800-444-7654 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 3: Table Of Contents
Filter Bag Housing ..... . . 16 Power Head - S12......18 Wiring Diagram . -
Page 4: How To Use This Manual
It contains replacement parts numbers needed for ordering future parts. NOTE: The manual part number is located on the lower right corner of the front cover. 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 5: Safety
31. To reduce the risk of disconnection of the appliance cord from the extension cord during operating, make a knot as shown under Grounding Instructions. 32. Maintain Appliance With Care - Inspect extension cords periodically and replace if damaged. READ AND SAVE THESE INSTRUCTIONS 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 6: Grounding Instructions
Ampere rating Volts Total length of cord 7.62m (25ft) 15,24m (60ft) 30,48m (100ft) More than A Not More than A mm² (AWG) 120 V 0.83 (18) 1.3 (16) 2.1 (14) 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 7: Important Safeguards
Exercise strict supervision to prevent injury when using vacuum cleaner near children or when child is allowed to operate vacuum cleaner. Do not allow children to play with vacuum cleaner and never leave cleaner plugged in and unattended. SAVE THESE INSTRUCTIONS 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 8: Operation
Insert crevice nozzle (16) and upholstery nozzle (17) into the recesses in the back of the machine. The device is ready, you can start up by pressing the switch (2). 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 9: Filter Level Indicator
(27) on picture 2. You can now use one of the 16 17 accessories (16) (17). Never run over the cable with the brush/suction head. Always carry the machine over steps and sills. 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 10: Maintenance
Slide the new brush roller into the brush housing and turn it until locates into position. Push the button (36) and press the side plate (37) back into place. 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 11: Removing Blockages
The guarantee is invalidated if takeout parts not approved by manufacturer.eg. bags, filters, brush roller,etc. are fitted. 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... - Page 12 4. 8.614-653.0 Wall And Upholstery Brush C.) Service Parts 1. Paper Bag 2. Micro Filter 3. Exhaust Filter 4. Brush Roller Electric shock could occur if used outdoors or on wet surfaces! 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine...
-
Page 13: Technical Details
Tooth Belt Brush Speed 2700 rpm Floor Adjustment Mechanical Cable 12.2 m (40”) Weight 7.4 kg (16.2 lbs) Ratio Suppression EN 55014 Verf 242./91 U.S. Patents: 5,056,175 4,955,106 5,028,245 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... - Page 14 Notes 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine...
- Page 15 Sensor 12 La Aspiradora Instrucciones de funcionmiento (SPA) MODELO: 1.012-615.0 De Serial No. # G547001011 Si Número de serie no aparece, Contacto Fabricante 86435530-B 04/01/20 Downloaded from ManualsNet.com search engine...
-
Page 16: Etiqueta De Datos De La Máquina
Su registro permitirá que le sirvamos mejor sobre el curso de la vida del producto. Para colocar su producto vaya: http://warranty.karcherna.com Para el servicio de atención al cliente llame al: 1-800-444-7654 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 17: Índice
Eliminar El Bloqueo..... . . 11 Datos Técnico ......13 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com... -
Page 18: Cómo Utilizar El Manual
Éste contiene los números de piezas de recambio necesarias para solicitar piezas en el futuro. NOTA: El número de pieza correspondiente al manual está ubicado en la esquina inferior derecho de la tapa. 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 19: Seguridad
31. Para reducir el riesgo de desconexión del cable del aparato del cable de extensión durante la operación, haga un nudo como se muestra en las Instrucciones de puesta a tierra. 32. Mantenga el aparato con cuidado - Revise los cables de extensión periódicamente y reemplace si están dañados. LEA Y GUARDE ESTAS INSTRUCCIONES 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 20: Instrucciones Para Conectar El Equipo A Tierra
Ampere rating Volts Total length of cord 7.62m (25ft) 15,24m (60ft) 30,48m (100ft) More than A Not More than A mm² (AWG) 120 V 0.83 (18) 1.3 (16) 2.1 (14) 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 21: Importantes Precauciones
No permita que los niños jueguen con la aspiradora y nunca deje el aparato enchufado y sin supervisión. GUARDE ESTAS INSTRUCCIONES 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 22: Operación
Coloque la boquilla para ranuras (16) y la boquilla para tapiceria (17) en la canal posterior de la máquina. L'appareil est pret, vous pouvez mettre en route en appuyant sur l'interrupteur (2). 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 23: Indicador De Nivel De Filtro
2. Ahora puede utilizar uno de los accesorios 16 17 (16) (17). Nunca pase sobre el cable con la cabeza de cepillado/aspiración. Siempre cargue la máquina para pasar por escalones o umbrales. 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 24: Mantenimiento
Presione el botón (3 la placa lateral (37) en su lugar. 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 25: Eliminar El Bloqueo
(si es necesario, quite y ponga la mano rapi- damente en el extrema de la manguera). La garantía perderá su validez si alguna pieza, p.ey bolsas, filtros,cepillo de rodillio, etc., no ha sido aprobada por fabricante. 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... - Page 26 Bolsa de papel Micro Micro filtro higiénico Filtro de salida de aire Cepillo de rodillo Si se utiliza al aire libre i sobre superficies húmedas podría ocurrir un choque eléctrico 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine...
-
Page 27: Datos Técnico
Velocidad del cepillo 2700 rpm ajuste al suelo mecánico Cable 12.2 m (40 pies) Peso 7.4 kg (16.2 libras) EN 55014 Verf Supresión de radio 242./91 U.S. Patents: 5,056,175 4,955,106 5,028,245 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... - Page 28 Downloaded from ManualsNet.com search engine...
- Page 29 Sensor 12 L'aspirateur Mode d'emploi (FRA) Modèle: 1.012-615.0 De série n ° # G547001011 Si le numéro de série ne figure pas, contacter le fabricant 86435530-B 04/01/20 Downloaded from ManualsNet.com search engine...
- Page 30 Votre enregistrement nous permettra de mieux vous servir tout au long de la durée de vie de votre produit. Pour enregistrer votre produit, consultez : http://warranty.karcherna.com Pour l'assistance client: 1-800-444-7654 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine...
- Page 31 Supprimer les blocages ....11 Détails Techniques ..... . . 13 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com...
-
Page 32: Comment Utiliser Ce Manuel
DU KIT accompagnant le kit. Il contient les numéros des pièces de rechange nécessaires pour commander de nouvelles pièces. REMARQUE : La référence du manuel se trouve dans le coin inférieur droite de la couverture. 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 33: Sécurité
31. Afin de réduire le risque de déconnexion du cordon de l'appareil à la rallonge lors de l'opération, faire un nœud comme présenté dans les instructions de mise à la terre. 32. Entretenir l'appareil avec soin. Inspecter les rallonges électriques périodiquement et remplacer-les si elles sont endommagées. LIRE ET CONSERVER CES INSTRUCTIONS 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 34: Instructions De Mise À La Terre
Ampere rating Volts Total length of cord 7.62m (25ft) 15,24m (60ft) 30,48m (100ft) More than A Not More than A mm² (AWG) 120 V 0.83 (18) 1.3 (16) 2.1 (14) 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 35: Mesures De Sécurité Importantes
à utiliser l'aspirateur. Ne laissez pas les enfants jouer avec l’aspirateur et ne laissez jamais l'aspirateur branché et sans surveillance. CONSERVEZ CES INSTRUCTIONS 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 36: Opération
(24) de manière à ce qu'elle s'enclenche. Mettre les accessoires 16 et 17 dans leur logement L'appareil est prét, vous pouvez mettre en route en appuyant sur l'interrupteur (2). 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 37: Lndicateur Du Niveau Du Filtre
(16) (17). 16 17 Ne pas passer sur le câble avec la tête d'aspira- tion. Toujours transporter la machine sur les marches et les rebords. 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 38: Entretien
Pour changer la brosse (35) pousser le bouton (36), retirer la plaque (37), tourner la brosse d'un quart de tour et tirer. Insérer la nouvelle brosse et positionnez-la. Enfoncer le bouton (36) et remettre la plaque (37). 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... -
Page 39: Supprimer Les Blocages
La garantie fabricant ne sera pas appliquée en cas de non utilisationdes pièces d'orgine fabricant (sac papier, filtre, brosse, roulem- nent,etc...) 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine... - Page 40 2.Micro filtre 3. Filtre sortie anti-acariens 4. Rouleau de brosse Pour réduire les risques de choc électrique, ne pas utiliser à l‘exterieur et ne pas aspirer de matiéres humides! 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine...
- Page 41 Vitresse rotation de la brosse 2700 rpm Réglage de la tête sur le sol mécanique Câble 12.2 m (40”) Poids 7.4 kg Ratio Suppression EN 55014 Verf. 242/91 U.S. Patents: 5,056,175 4,955,106 5,028,245 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine...
- Page 42 Downloaded from ManualsNet.com search engine...
- Page 43 Parts Spare Parts List (1.012-615.0) Sensor S12 From Serial No. # G547001011 If Serial Number not listed, Contact Manufacturer 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine...
- Page 44 Filter Bag Housing 34 33 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine...
- Page 45 SCREW C 3,9X15 86147140 0129ER SCREW M4X12 86363370 01036ER SCREW M4 X 14 TX 20 86434030 01036SW AMTEC-SCREW 4X14 TX 20 BLACK 86434040 01047ER AMTEC-SCREW 3X12 TX 10 BLACK 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine...
- Page 46 Power Head - S12 122 118 119 170 170 122 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine...
- Page 47 SUPPORT SPRING 86143570 5112sw MOTOR PULLEY COVER 86435500 20881ER COMPUTER CONTROLLER 86145050 5464 SENSOR SRS12 CPL 86143580 5117/1 MOTOR PULLEY 86138240 5463 BELT 2MR-310-6 86005000 5110 BELT HTD-II-6, 219 3M 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine...
- Page 48 WASHER 4.3, DIN 125 86147190 0143 WASHER 3.2, DIN 125 86147170 0176 SCREW M4 X 30 86144850 0197 SCREW, M4 X 12, W/WASHER 86144860 01010 SCREW, M4 x 16, DIN 7985 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine...
- Page 49 Wiring Diagram 8.643-553.0 Manual - Karcher Sensor S12 Downloaded from ManualsNet.com search engine...
- Page 50 86435530 06747L Downloaded from ManualsNet.com search engine...
