Multi Boxing Station
owner's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90006A and is the answer not in the manual?

Questions and answers

Related Manuals for York Fitness 90006A

Summary of Contents for York Fitness 90006A

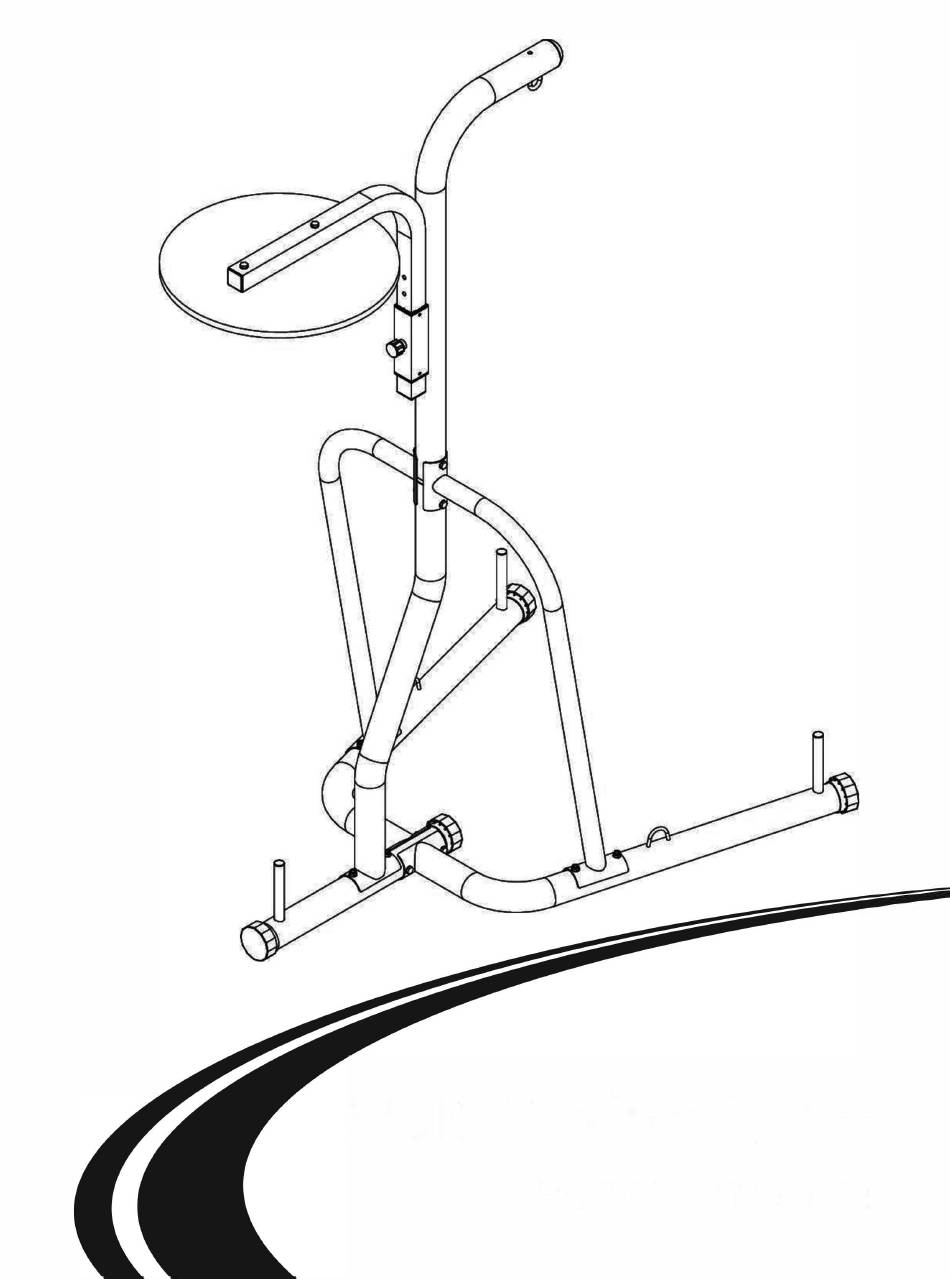

  • Page 1 Multi Boxing Station owner's manual...

  • Page 2: Customer Support

    • Information about the place and conditions of use • Precise description of the issue / defect Serial Number: 90006A- IMPORTANT - Please retain your sales receipt, Boyles Fitness Customer Care may request proof of purchase to validate eligibility for warranty service. Warranty cover starts from the date shown on the proof of purchase.

  • Page 3: Part List

    PART LIST...

  • Page 4: Exploded Diagram

    EXPLODED DIAGRAM...
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 1 1. Remove M10X25mm Bolts (13) from Weight Plate Tubes (9). 2. Attach three Weight Plate Tubes (9) to the Left Base Tube (2), the Right Base Tube (5) and the Main Base Tube (1), using three M10X25mm Bolts (13).
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 2 1. Attach the Lower Main Tube (4) to the Main Base Tube (1) ,using two M10X90mm Carriage Bolts (12), two M10 Arc Washers (16) and two M10 Nylon Nuts (17). 2. Attach the Left Support Tube (3) to the Left Base Tube (2), using two M10X90mm Carriage Bolts (12), two M10 Arc Washers (16) and two M10 Nylon Nuts (17).
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 3 1. Attach the Wooden Plate (23) to the Wooden Plate Holder Tube (8), using two M10X70mm Hex Bolts (11) and two M10 Washers (15). 2. Insert the Wooden Plate Holder Tube (8) into the Upper Main Tube (7), using the Quick Knob (25).

  • Page 8: Warranty

    WARRANTY 12 Months Parts BFE Warranty Policy – November 1 2013 1. When purchased from an authorized BFE distributor the BFE warranty shall guarantee that all framework and components of your product are free from faulty manufacture. All faulty framework and components will be repaired or replaced as set out in this policy.
  • Page 9 Freight Costs: The cost of freighting the replacement part under warranty to the customer shall be free of charge. Your requirement is to return the faulty part via the pre-paid postal service which we will supply. Returned Goods: The unauthorized return of parts or product shall be refused and placed in the hands of the carrier at the cost of the shipper. Return authorizations can be obtained from BFE head office only.
