Printed Matter No. 9839 1064 01
Publication Date 2020-02-21
Valid from Serial No. A2410001
ETD MT41-100-I06 ( 20–100 cNm)
Handheld transducerized
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
ETD MT41-100-I06
8432084561
WARNING

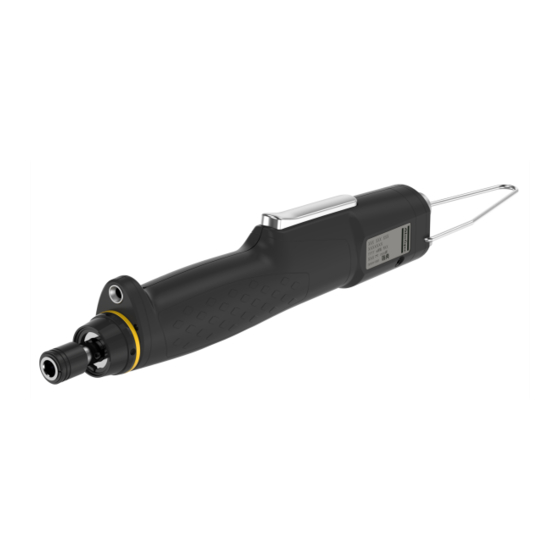

Electric screwdriver
Product Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlas Copco ETD MT41-100-I06
Summary of Contents for Atlas Copco ETD MT41-100-I06
- Page 1 Printed Matter No. 9839 1064 01 Electric screwdriver Publication Date 2020-02-21 Valid from Serial No. A2410001 Product Instructions ETD MT41-100-I06 ( 20–100 cNm) 8432084561 Handheld transducerized WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Function button.................. 11 Front light..................... 11 Operating Instructions.................. 12 Mount bit.................... 12 Service ........................ 13 Preventing ESD Problems ................ 13 Maintenance Instructions................ 13 Service Recommendations.............. 13 Preventive maintenance .............. 13 Calibration recommendations.............. 13 Recycling ....................... 14 Environmental Regulations................ 14 Recycling information .................. 14 © Atlas Copco Industrial Technique AB - 9839 1064 01... -
Page 3: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 4: Servaid
Please visit: http://webbox.atlascopco.com/webbox/dimdrw or https://servaid.atlascopco.com. Overview Technical Product Data Technical Product Data can be found on either ServAid, or the Atlas Copco website. Please visit: https://servaid.atlascopco.com or www.atlascopco.com. Bit run out test Bit run out is measured with the tool securely fastened in a test rig and with the tool running at no load with a rotation speed of 200 rpm. -
Page 5: Bit Grounding Test
Valid at normal usage of the tool at a load up to 70% of maximum torque. Service should only be carried out by trained technician following provided service instructions and using original Atlas Copco spare parts. © Atlas Copco Industrial Technique AB - 9839 1064 01... - Page 6 Product Information ETD MT41-100-I06 Interval Action 1.500.000 cycles or 1 year Calibrate the tool 1.500.000 cycles Exchange bit grounding 3.000.000 cycles Exchange front part 3.000.000 cycles Exchange motor © Atlas Copco Industrial Technique AB - 9839 1064 01...
-
Page 7: Installation
The tool can also be fixtured using the threds at the front part, accessible under the thread protection ring. NOTICE Make sure the cable is not bent more than a radious of 55 mm (2.2 in). © Atlas Copco Industrial Technique AB - 9839 1064 01... - Page 8 Installation ETD MT41-100-I06 © Atlas Copco Industrial Technique AB - 9839 1064 01...
-
Page 9: Operation
■ In dusty environments, use a dust extraction system or wear a mouth protection mask. © Atlas Copco Industrial Technique AB - 9839 1064 01... -
Page 10: Configuration Instructions
To start the unscrew process: Press the function button (B) once. The reverse light (C) is on. If the reverse light (C) is flashing, single reverse mode is selected. press the start lever (A). © Atlas Copco Industrial Technique AB - 9839 1064 01... -
Page 11: Start Options
Status indicator The front light can be configured to indicate status in Tools Talk MT: Function Color option Default Tightening OK Green Tightening NOK Batch finished Green (default) or blue © Atlas Copco Industrial Technique AB - 9839 1064 01... -
Page 12: Operating Instructions
■ selected from function button or digital I/O. Operating Instructions Mount bit Pull the chuck ring outwards Insert the bit Turn the bit, if not seated properly © Atlas Copco Industrial Technique AB - 9839 1064 01... -
Page 13: Service
Calibration recommendations According to MT Calibration Configuration Manual 9839 0812, the calibration is needed when the following parts are replaced: ■ Drive unit ■ Motor ■ Front part ■ Trigger module © Atlas Copco Industrial Technique AB - 9839 1064 01... -
Page 14: Recycling
Drive unit Electronics Configuration button Electronics Handle complete Metal, aluminum Handle complete Metal, aluminum Screw Metal, Steel Hose connection Metal, Steel Screw Metal, Steel Trigger module Electronics Suspension yoke Metal, Steel © Atlas Copco Industrial Technique AB - 9839 1064 01... - Page 16 Original instructions © Copyright 2020, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
