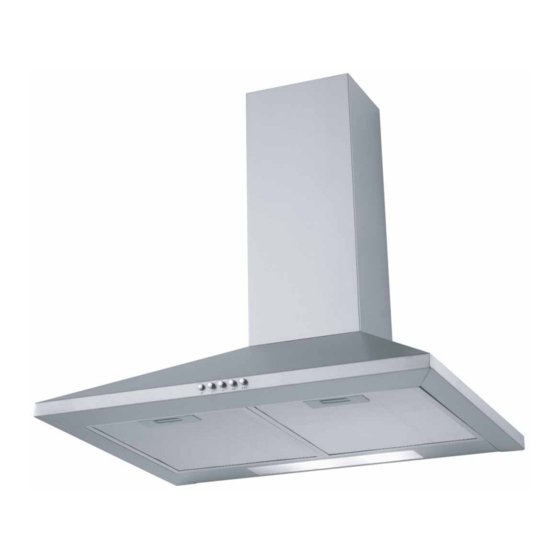

- Page 1 LAM2404 Stainless Steel Chimney Extractor User & Installation Guide...
- Page 2 LAMONA Appliances Dear Customer, Congratulations on your choice of a LAMONA domestic appliance which has been designed to give you excellent service. The user manual will help you use your product quickly and safely. Please read this user manual before installing and using the product.
-
Page 3: Table Of Contents
User manual LAM2404 Index Before using the extractor Safety General Safety for children Safety when working with electricity General information and operation Extractor layout Control panel layout Care and maintenance General Cleaning Grease Filters Carbon Filters Replacing the Lamps Installation... - Page 4 LAMONA Appliances Before using the Extractor Make sure that you have removed all packaging, wrappings, stickers and films from the Extractor Safety This appliance is for domestic extraction purposes only. It must not be used for other purposes. Commercial use will void the guarantee.
- Page 5 User manual LAM2404 Do not operate the product if the power cable is damaged. Call qualified service agent. Do not carry out any repairs or modifications on the product. However, you may remedy some the problems that do not require any repairs or modifications.
-
Page 6: Safety For Children
LAMONA Appliances Keep all ventilation slots clear of obstructions, as this may cause premature failure of the appliance Do not trap the mains cable and do not route it over surfaces which may become hot. The cable insulation may melt and cause a fire as a result of a short circuit. -
Page 7: Safety When Working With Electricity
User manual LAM2404 packaging according to environmental standards. Safety when working with electricity In case of any damage, switch off the product and disconnect it from the mains. To do this, turn off the fuse at the fuse box. Make sure that fuse rating is compatible with the product. -
Page 8: General Information And Operation
LAMONA Appliances General Information & Operation Extractor layout Upper chimney section Recirculation vent Lower chimney section Fan and light controls Extractor body Light Control panel layout Light on/off Extractor Power off Extractor power level 1 Extractor power level 2 Extractor power level 3 Page _ 8 Exclusive to Howdens Joinery.co... -
Page 9: Care And Maintenance
User manual LAM2404 Care and maintenance Before cleaning or attempting any type of maintenance, always make sure that the electricity supply is disconnected. To avoid the possibility of fire, adhere strictly to all of the recommendations included in this booklet, paying particular attention to the grease filters to ensure grease deposits do not build up. -
Page 10: Carbon Filters
LAMONA Appliances 1 Press latch towards side of extractor 2 Lower to remove. The Carbon Filters Carbon have a limited life. We advise you to change them when there is a noticeable drop in performance. The intervals between changing will depend entirely upon the amount of cooking you do, but on average they will last about 6 months. -
Page 11: Installation
User manual LAM2404 Installation Methods of Extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits using the external ducting mode. -
Page 12: Parts
LAMONA Appliances PARTS IDENTIFICATION On opening your box you will the extractor body, a two-piece telescopic decorative chimney, one brackets, ducting connector, four 10mm screws, six 32mm screws and six rawl plugs. Main Extractor Body 32mm Screws Upper Chimney 10mm Screws... -
Page 13: Hanging Your Extractor
User manual LAM2404 Hanging Your Extractor This instruction must be strictly adhered to. Failure to comply could result in overheating and serious damage to your appliance. It is recommended that the installation is carried out by two people. Before drilling or chiselling the ceiling or wall, check for pipes and power cables. - Page 14 LAMONA Appliances 750mm (Min 700mm) Fixing Height Above Worktop Recommended = 750mm Mimimum = 700mm Fig 3. Fig 4. Note: It is recommended that the installation is carriedout by two people. ccessor requir required. rews Page _ 14 www.howdens.com...
-
Page 15: Decorative Chimney Fitting
User manual LAM2404 Decorative Chimney Fitting Connec extract ctricit connec rovided racket rovided Fig 5. Fig 6. Please ensure the cable does not fall into the motor when in recirculation mode. Exclusive to Howdens Joinery.co Page _ 15... -
Page 16: Electrical Connections
LAMONA Appliances Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your appliance must be connected to i r i t e l with at least 3mm contact separation, The isolation switch must be accessible after installation. (See technical data for fuse rating). -
Page 17: Troubleshooting
User manual LAM2404 Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions Lamps fail to operate? A replacement lamp is probably Disconnect the mains electricity supply before adjusting or replacing the lamps. The extractor lamps may become hot; therefore ensure (Remember that the lamps are not covered by the guarantee.) -
Page 18: Your Guarantee
LAMONA Appliances Your guarantee Product Guarantee Details (UK only) breakdown repairs. (Details of which are shown on your Proof of Purchase Document). Any claim during the period of the guarantee (MUST BE ACCOMPANIED BY THE PROOF OF PURCHASE) The product must be correctly installed and operated in accordance with the manufacturer’s instructions and used for normal domestic purposes. - Page 19 User manual LAM2404 Product Informa on Commission Regula on (EU) No 66/2014 Model LAM2404 74.9 kWh/a 11.40% hood 95.6 hood 182.5 m 132 Pa 280 m 58.6 W 56 W 564 lux middle 73 dB Exclusive to Howdens Joinery.co Page _ 19...
